Specifications
Material :
PE100
Certification :
ISO9001:2008
Supply Ability :
500 SETS per Month
Place of Origin :
City of Dongguan China
MOQ :
5
Payment Terms :
T/T
Model Number :
Ultra-Circular
Price :
1400
Brand Name :
Nanfengwang
Delivery Time :
30 working days
Packaging Details :
knock-down packing
Description

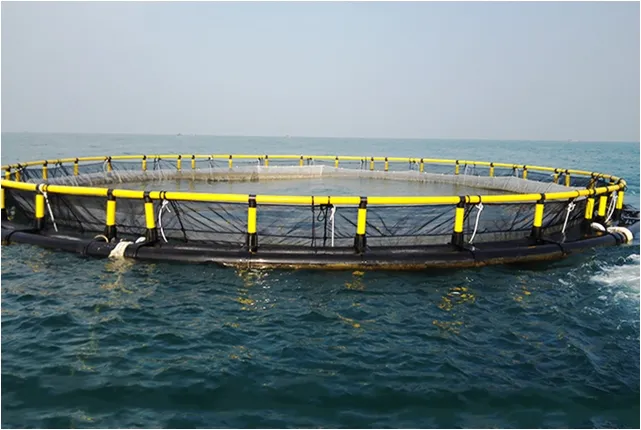

Circumference 31.4m Reinforced Anti-wind Circular Cage – Specs & Reference Quotation
The diameter measured from the central axis of the inner pipe is 10 m,
with a circumference of 31.4 m.
The spacing between each bracket is approximately 1.49 m.
Water covering area is around 78.5 sq.m.
Unit price: USD 17.5 per sq.m.
Items
Specification
Main Float Pipe
Φ 200mm OD × 9.5mm wall thickness SDR21
Handrail Pipe
Φ 90mm × 8.2mm SDR11(thickened)
Bracket
Simplified single-post
Frame Material
High-density PE100 pipe, Anti-aging and UV-resistant
Buoyancy System
Integrated high-buoyancy PE float modules. Suitable for 6m to 15m water depth in lakes and reservoirs
Anti-wave Grade
Designed for significant wave heights up to 3m, class 10 monsoon resistant, suitable for most Lake areas
Design Drawing
See pictures below
Unit Price (EXW Dongguan China)
USD 1400/ unit
MOQ
2 unit (available for trial)
Lead Time
7–10 working days after deposit
Smart Farming Ready: Integrating Feeding and Monitoring Systems with Modern HDPE Fish Cages
Smart Farming Ready: Integrating Feeding and Monitoring Systems with Modern HDPE Fish Cages
Warm Welcome to Our Factory for Global Aquaculture Partners
It was a pleasure to receive our international partners for a full factory visit.
We demonstrated our patented brackets, anti-wave fish cages and full line of farming nets, plus live load tests that meet universal aquaculture standards.
We shared tailored technical proposals and anticipate lasting, mutually beneficial cooperation across the globe.
