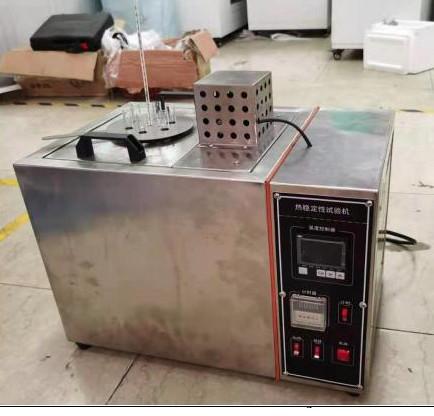

DX8485 Thermal Stability Testing Machine
DX8485 Thermal Stability Testing Machine
Specifications
Brand Name :
DAXIAN
Model Number :
DX8485
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A
Supply Ability :
Five sets per month
Packaging Details :
Wooden case
Description

Compliant with standards: Made in accordance with GB/T2951.7 "Thermal Stability Test for Insulation and Sheath" standard, in compliance with UL758, UL1581, UL62, ASTM, GB-1690, IEC811, VDE0281 test standards.
Scope of application: Mainly suitable for testing the insulation and sheath of PVC mixtures for wires and cables.
Technical parameters:
1. Temperature range: room temperature~250 ℃.
2. Temperature resolution: 0.1 ℃
3. Timer: 0~99H.
4. Working power supply: AC220V/50Hz
5. Heater power: 3.5KW
6. Test oil: Use 2 # lubricating oil and insulating oil. (Self provided)
7. Outer box size: 350 (length) x 300 (width) x 250 mm (height)
8. Internal size: 27L
9. Glass tube: 110mm long, 5mm outer diameter, 4mm inner diameter, sealed at one end
10. PH test paper: 1-7PH
