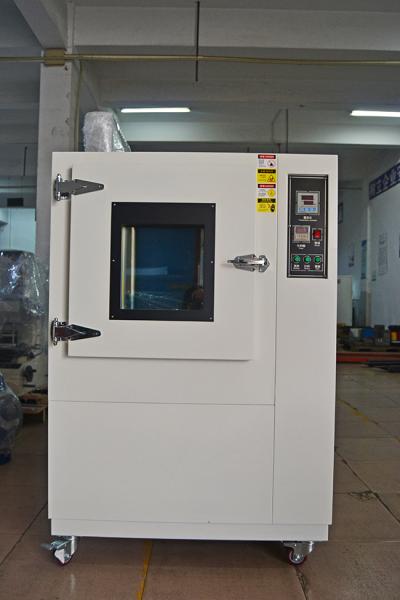

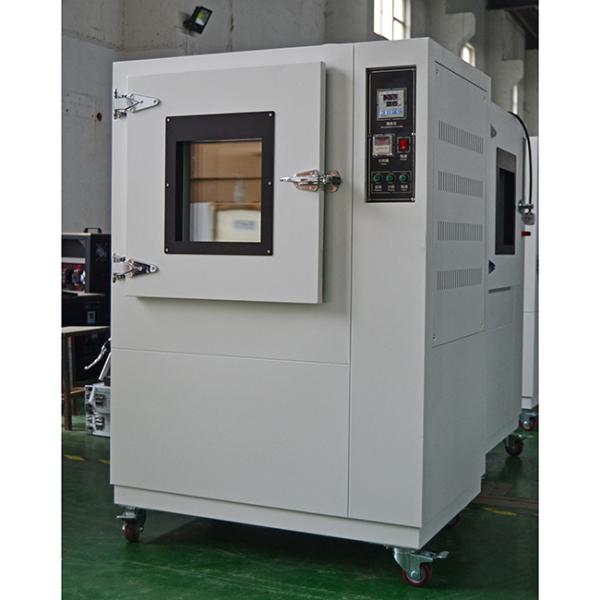

Natural Ventilation Aging Test Chamber

Product Description:

Natural ventilation aging test oven is mainly used for wires, cables, plastics, rubbers, and other industries for the natural ventilation thermal aging test. The temperature control is adopted a digital instrumentation, easy to operate; it has an observation glass window,a stainless steel working room; the shell is made of a high-quality steel plate, whose surface is spray-treated; the door seal is made of heat-resistant silicone rubber, healthy and safe

Standard:

• GB/T 2951-2008

Technical Parameters:

• Temperature range: room temperature (about 25℃) ~ 300℃, with buzzer alarm

• Temperature fluctuation: ±0.5℃

• Temperature uniformity: ±2℃

• Heating time: it takes about 50mins from room temperature to 300℃

• Ventilation volume: 8～20

• Internal room dimensions: 450×450×500mm (customized)

• Materials of oven interior: SUS#304 stainless steel, oven exterior materials: antistatic spray (white)

• Thermal insulation materials: five-sided 100mm filling cotton insulation,Underfill 60mm cotton insulation

Specifications:

• Overall dimensions: 950×750×1400mm

• Power supply: AC 220V 50/60HZ 3KW

Our company:

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise specializing in the research, development, production, and sales of fire testing equipment. We are committed to providing global customers with accurate, reliable, and efficient fire testing solutions, helping various industries improve fire safety levels and safeguard people's lives and property.

Product Application Fields:

Building Materials: Combustion performance testing, fire resistance limit testing, smoke toxicity testing, etc.
Aviation: Aircraft interior material combustion testing, cargo compartment fire testing, etc.
Railways: Rail transit material fire testing, train carriage combustion testing, etc.
International Maritime Organization (IMO): Ship material fire testing, bulkhead and deck fire resistance testing, etc.
Wires and Cables: Flame retardant performance testing, fire resistance performance testing, smoke density testing, etc.
Safety Protection: Firefighting clothing flame retardant testing, escape equipment fire resistance testing, etc.
