Specifications
Brand Name :
GOLD
Model Number :
GD-EN 136
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 5000-8000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 sets per month
Delivery Time :
30 days
Packaging Details :
Plywood case
Product name :
Full Face Mask Thermal Radiation Tester
Standard :
EN 136
Power :
AC 220V, 50/60Hz, 30A
Height of the flame :
Accurate to 40mm±2mm
size :
1400mm(W)*600mm(D)*1400mm(H)
Application :
textile testing
Hrr :
7.0~9.0 Kw / M2
Resolution :
0.1kw / M2
Description

EN 136 Full Face Mask Thermal Radiation Tester Fire Resistance Test Machine

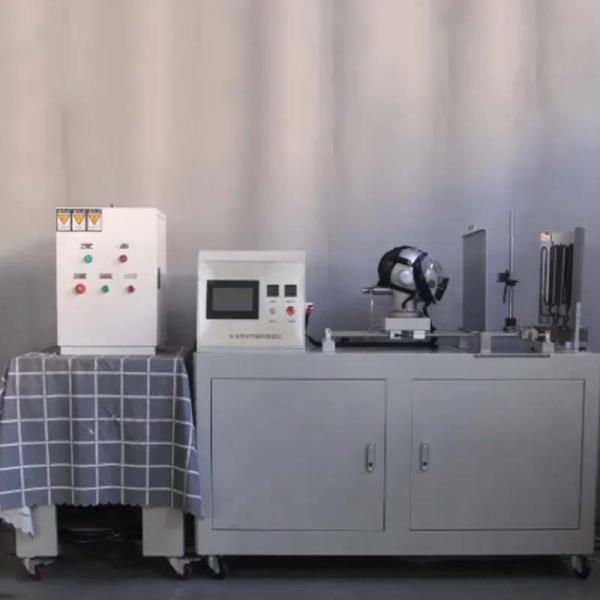

Full Face Mask Thermal Radiation Tester Introduction:

The full-face mask heat radiation resistance tester is suitable for the full-face mask radiation resistance performance test in the EN136 standard. Its test purpose is to test whether the mask will cause protection failure after being exposed to a standard heat radiation source for a standard test time.

Full Face Mask Thermal Radiation Tester standard:

EN 136 - Respiratory protective devices - Full face masks - Requirements, testing and marking

Full Face Mask Thermal Radiation Tester Specifications​:

name
thermal radiation resistance tester
standard
EN 136
materials
Stainless steel
Height of the flame
Accurate to 40mm±2mm
size
1400mm(W)*600mm(D)*1400mm(H)
power supply
AC 220V, 50/60Hz, 30A
Weight
80kg

EN 136 Full Face Mask Thermal Radiation Tester Fire Resistance Tester

Full Face Mask Thermal Radiation Tester Feature:

• The box body is spray-painted and beautiful; all tooling is made of stainless steel, which is beautiful and corrosion-resistant;
• Imported flow control valve, precise control of gas flow; precise control of flame height 40mm±2mm;
• Imported brand pressure gauges and pressure regulating valves
• Inlet needle valve controls the air flow rate supplied to the burner;

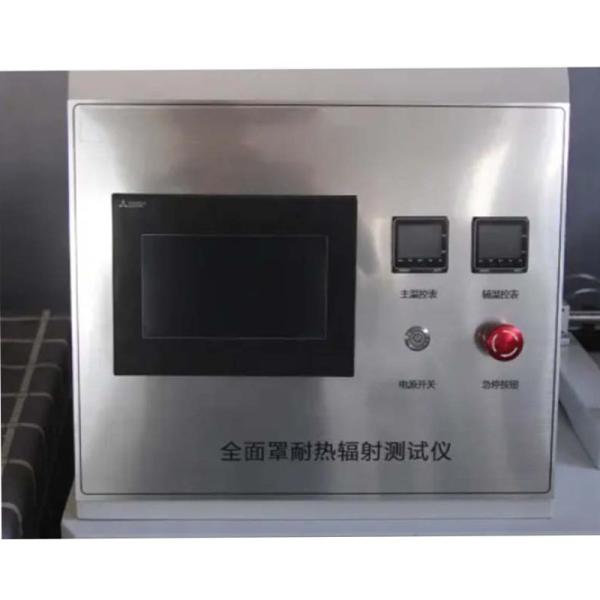

• PLC plus touch screen intelligent control system; the test interface is simple and easy to operate;
•The system automatically times and heat data is automatically recorded and stored;
• Various test reports are stored independently and can be retrieved freely;
• Computer control system, automatic timing, automatic recording and storage of heat data;

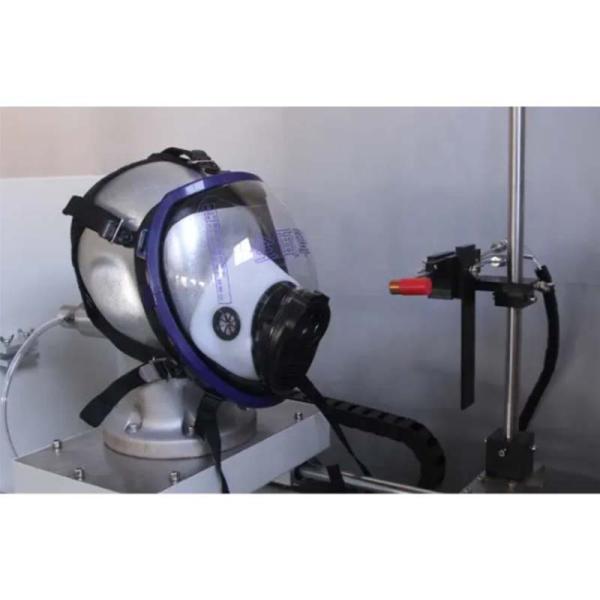

• Metal head mold, heat-resistant and corrosion-resistant;
• The distance between the radiation source and the metal head mold is 175mm, and the H.R.R at this position is 7.0~9.0 kW/m2
• Heat flow meter imported from the United States accurately detects radiated heat;
• Temperature controller controls the heat release rate of the thermal radiation device (resolution: 0.1kW/m2)
• The radiant baffle is freely extracted and placed.
• The headform moving base is designed with slide rails for easy movement.
• Respiratory device: During the test, artificial respiration can be performed; the artificial respiration device works 10-30 times per minute, 1.0~2.5 L per circle;
• PLC automatic control device;
Optional: ventilator
