VW-1 Flame Test Vertical Flame And FT1 Test Equipment UL 1581

Product Overview

The VW-1 Cable Horizontal and Vertical Burning Tester is a high-precision burning test device designed in strict accordance with the UL 2556-2013 standard. This equipment is specifically designed for VW-1 and FT-2 vertical burning tests in the wire and cable industry. It features automated control, high repeatability, and ease of operation, and is widely used for flame retardant performance testing in the wire and cable, electronic wire, and insulation materials industries.

Core Advantages

• Standard Compliance: Fully compliant with UL 2556-2013 and VW-1 flammability test standards.
• Automated Operation: Supports freely adjustable combustion, afterflame, and re-ignition times and repetition counts, achieving a fully automated testing process.
• High-Precision Control: Employs a PLC and a 7-inch color touchscreen, with time setting accuracy ranging from 0 to 999 seconds.
• Imported Core Components: Equipped with high-precision sensors such as a Hamburger burner, Dwyer pressure gauge, and K-type thermocouples.
• Safety and Environmental Protection: The test chamber features a smoke extraction system and a sealed structure, allowing exhaust gases to be discharged externally, ensuring a safe experimental environment.
• Wide Applicability: Suitable for vertical flammability testing of various wires, cables, and insulating materials.

Technical Parameters:

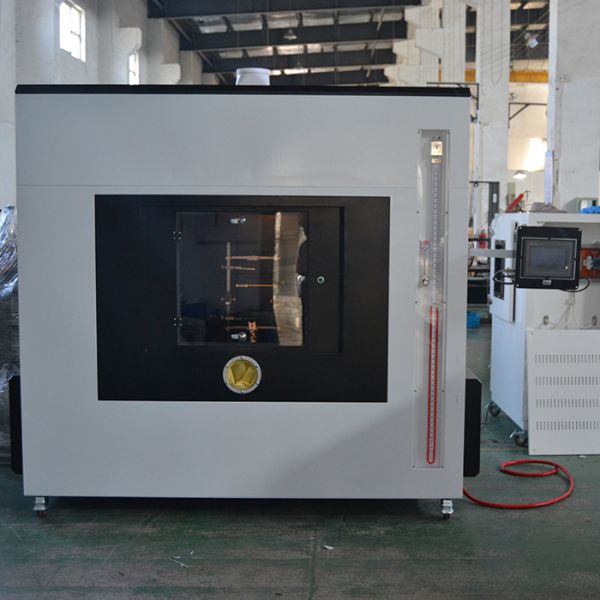

● Test Chamber: This testing machine is constructed from steel plates. The body is coated with anti-static powder, providing an attractive appearance and rust and corrosion resistance. A smoke exhaust system is installed on the top of the chamber to vent exhaust gases outdoors after testing. Two air inlets are located on the lower sides, each equipped with a pneumatic sealing operating device.

● An observation window is provided on the front of the chamber for easy observation of the test results.

● Internal lighting uses a fog-proof and smoke-proof circular lamp.

● 7″ color touchscreen and PLC control.

● Burning time setting: 0~999S adjustable;

● Ignition time setting: 0~999S adjustable;

● Afterburning time setting: 0~999S adjustable;

● Thermal sensor uses electrolytic copper with extremely high conductivity;

● Equipped with an imported φ0.5K type stainless steel thermocouple;

● A portable intelligent temperature controller is matched with the K-type thermocouple, with readings reaching over 1000℃;

● The combustion torch is an imported American Hamburger torch that meets ASTM D standards. According to 5025-99, the standard power is 500W and the angle is 20°;

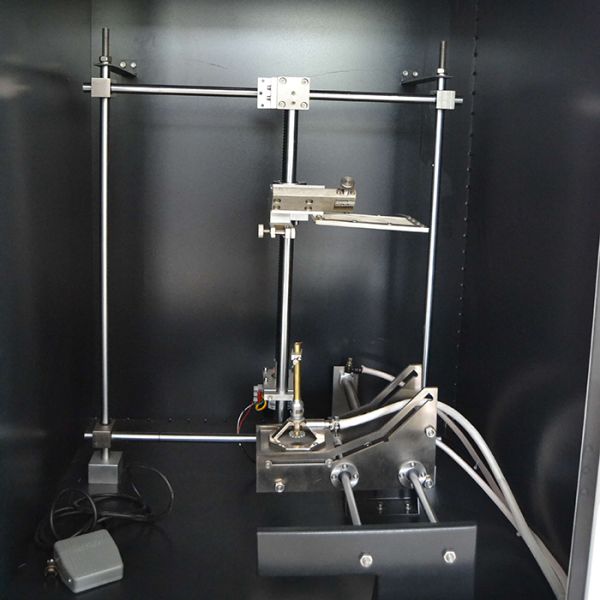

● Test stand: VW-1 and FT2 combustion test stand;

● U-tube manometer: 1 unit (Dwyer, USA);

● Flow meter: High-precision flow meter 0.1～1.0L/min, Class 2 accuracy;

● Equipped with a mini printer.
