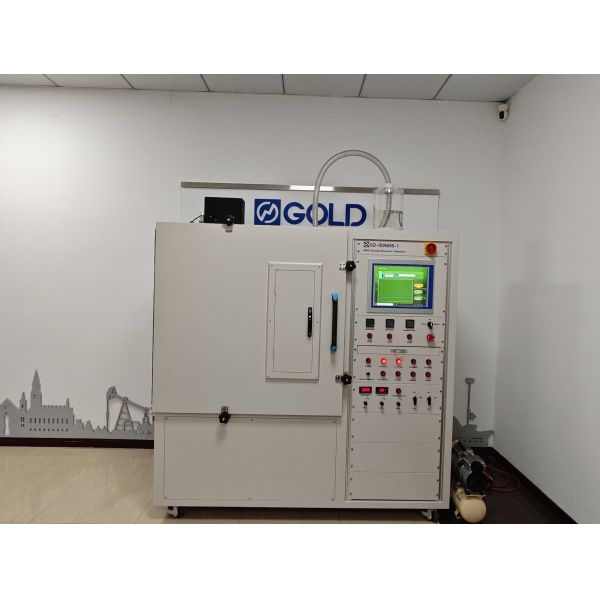

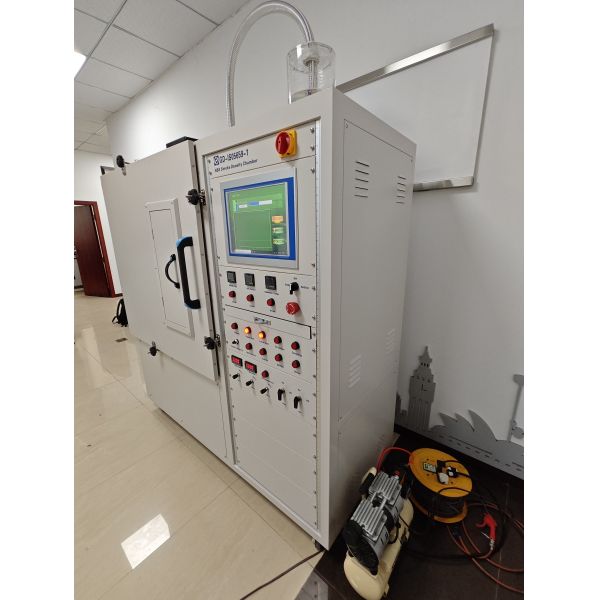

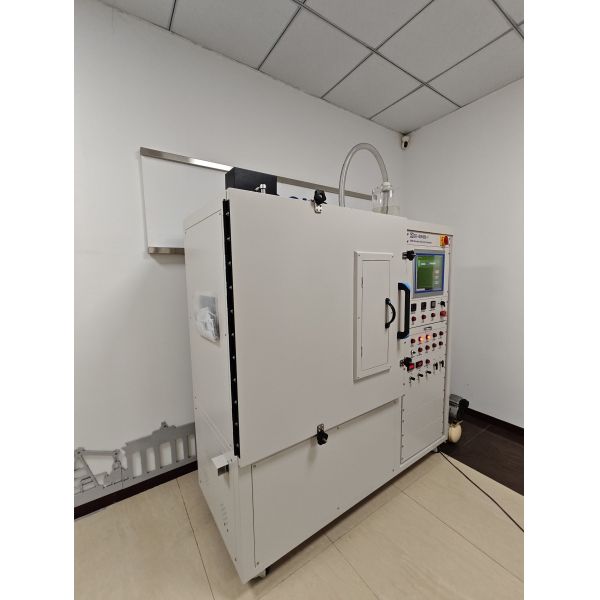

Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Specifications
Brand Name :
GOLD
Model Number :
GD-ISO 5659
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 4000-5000/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
5 sets per months
Delivery Time :
30 days
Packaging Details :
Plywood case
Product :
NBS Smoke Density Chamber
Standard :
ISO 5659-2; ASTM E662; NES 711
Radiant furnace :
ASTM E662, provides a thermal radiation output of 25KW/M2
Radiation cone :
ISO5659-2, provides a thermal radiation output of 50KW/M2
Application :
Smoke Density Test Apparatus For Plastic
Power :
220 V AC, 60 Hz, 15 A
Exhaust :
50 l/s
Utilities :
Compressed Air, Propane Gas, Personal Computer, Dust Collector
Description
Lab Fire Test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
The NBS Smoke Density Chamber measures optical density of smoke generated from test samples when exposed to heat sources or fire in a controlled chamber environment. This precision instrument supports various international standards including ASTM E662, ISO 5659, and BS6401.
Product Introduction
The Smoke Density Chamber evaluates optical density of smoke produced from test samples of specific thickness when exposed to radiant heat sources (25KW/m² using ASTM E662 furnace) or direct flame. The ISO 5659 NBS Smoke Density Test Apparatus for plastics complies with multiple international standards and features adjustable heating conditions from 10KW/m² to 70kW/m² to meet diverse testing requirements.
Compliance Standards
  • ASTM E 662: Standard Test Method for Specific Optical Density of Smoke Generated by Solid Materials
  • BSI 6401: British Standard Method for Measurement of Specific Optical Density of Smoke Generated by Materials
  • ISO 5659-2: Plastics-Smoke Generation - Determination of Optical Density by Single-Chamber Test
  • NES 711: Determination of the Smoke Index of Products of Combustion from Small Specimens of Material
Technical Specifications
Product Name ISO 5659 NBS Smoke Density Test For Plastic
Dimensions 1,600mm (W) × 820mm (D) × 2,150mm (H)
Power Requirements 220 V AC, 60 Hz, 15 A
Weight 350 kg
Documentation Manual Supplied
Exhaust Capacity 50 l/s
Required Utilities Compressed Air, Propane Gas, Personal Computer, Dust Collector
Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Key Features
  • Integrated body with 19" analysis rack for space efficiency
  • 17" touch screen panel PC for complete control and automated testing
  • Air cylinder movement system for sample loading and automatic vent operation
  • Chemical-resistant coating for easy cleaning and durability
  • Single-action chamber door locking mechanism
  • High-accuracy transmission rate and smoke density indication
  • Chamber preheat system for enhanced testing precision
  • Safety blow-out panel system for pressure protection
  • Heated ports, filters, and lines for toxic gas measurement
  • Precision manometer with MFC and DPT for automatic leakage testing
  • Portable water cooling system eliminating need for plumbing
  • High-accuracy load cell for mass loss rate measurement
  • SB 2005 DAQ Program for touch screen panel PC control
Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber Lab Fire test Equipment ASTM E662 ISO 5659 NBS Smoke Density Chamber
Support Services
  • Technical consulting support
  • Sample testing assistance
  • Factory visiting arrangements
  • Comprehensive training programs
  • Professional installation support
  • 24/7 customer service availability
