ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing
ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing
ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing
ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing
ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing
ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing
ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing
ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing
ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing
ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing
Specifications
Brand Name :
GOLD
Model Number :
GD-ISO15025
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
USD 2000-3000
Payment Terms :
T/T,L/C,D/A,D/P,
Supply Ability :
10 sets per month
Delivery Time :
25 working days
Packaging Details :
Plywood case
Product name :
Protect Clothing Flame Spread Tester
Standard :
ISO 15025
Combustion chamber dimensions :
1200mm × 600mm × 1200mm
Sample clamp dimensions :
160mm × 200mm / 80mm × 200mm
Flame height :
Horizontal 25mm ± 2mm, Vertical 40mm ± 2mm
Ignition method :
Pulse high-voltage electronic automatic ignition
Description
ISO 15025 Flame Spread Tester for Textiles

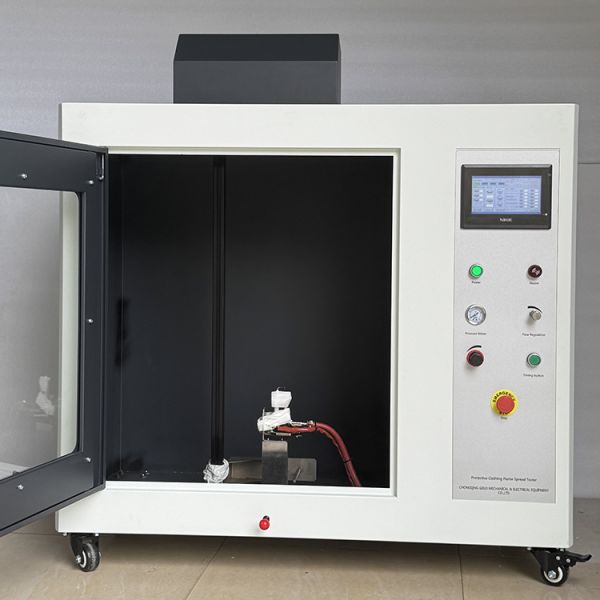

The GD-ISO15025 Protective Clothing Flame Spread Tester is engineered in compliance with ISO 15025 international standards to professionally evaluate flame spread performance of protective clothing under small flame impact. This instrument is ideal for testing flammability of various protective clothing fabrics and similar materials, making it essential for laboratories, testing institutions, and manufacturers conducting fire performance assessments.
Compliance Standards
ISO 15025:2016 Protective clothing - Test methods for heat and fire resistance
Key Features
Intelligent Control System
Features a 7-inch touchscreen with PLC programming control for automatic ignition, timing, data storage, and report generation. Easy to operate with high efficiency.
High-Precision Combustion System

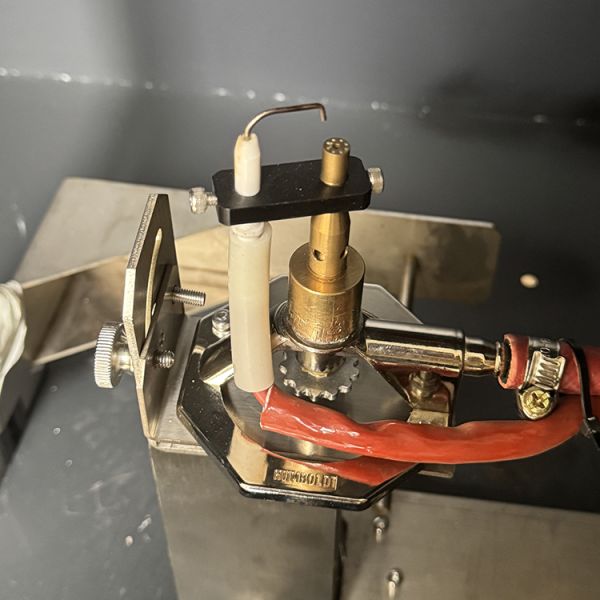

Utilizes imported burners, pressure-regulating valves, and needle valves. Provides stable, adjustable flame height (horizontal 25mm±2mm, vertical 40mm±2mm) and supports horizontal, vertical, and 30° multi-angle testing.
Dual-Mode Testing

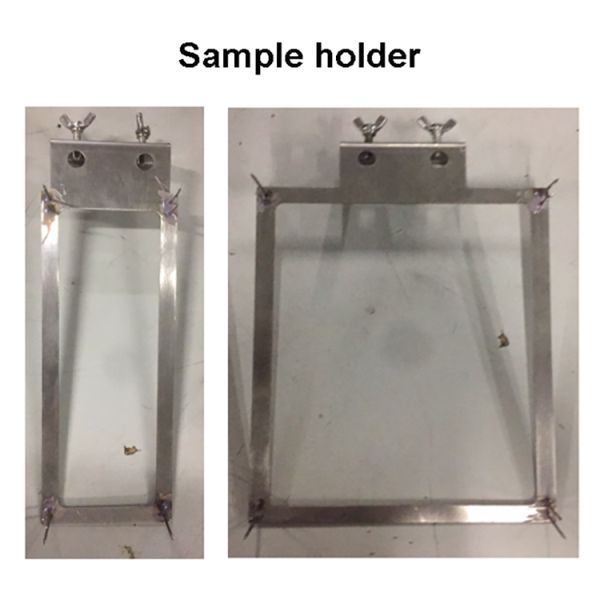

Equipped with two stainless steel sample holders for surface combustion and bottom edge combustion. Test programs can be switched with a single button to accommodate various testing scenarios.
Stable and Reliable Structure
All-stainless steel combustion chamber and sample holder provide corrosion resistance, easy cleaning, and durable construction with optimal dimensions (1200mm*600mm*1200mm).
Automated Data Management
Automatic test time recording with 0.1-second accuracy eliminates manual timing. Real-time data storage and exportable reports for comprehensive documentation.
ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing ISO 15025 Standard Flame Spread Tester with Intelligent Control System for Protective Clothing
Technical Specifications
Combustion chamber dimensions 1200mm * 600mm * 1200mm (stainless steel)
Sample clamp dimensions 160mm * 200mm / 80mm * 200mm
Flame height Horizontal 25mm ± 2mm, Vertical 40mm ± 2mm
Timing accuracy 0.1 seconds
Ignition method Pulse high-voltage electronic automatic ignition
Gas Propane/butane mixture or butane (user-supplied)
Power supply 220V, 50/60Hz
