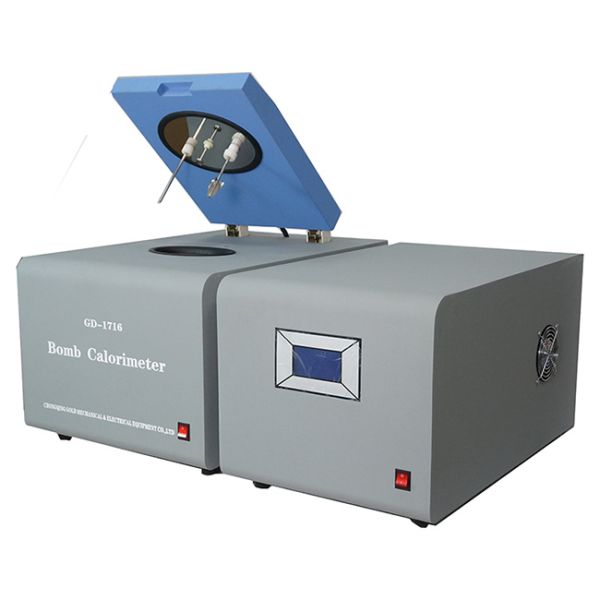

The ISO 1716 Bomb Calorimeter is a high-precision instrument designed for determining the gross heat of combustion (calorific value) of solid materials, such as building products, biofuels, and composites, in accordance with ISO 1716:2018 standards. Widely used in fire safety testing, it measures the total heat released during complete combustion in a constant-volume environment, ensuring accurate results for materials like wood, plastics, rock wool, and textiles. This advanced calorimeter is essential for laboratories assessing fire reaction properties, offering reliable data for compliance with international safety regulations. Its robust design and precise measurement capabilities make it a critical tool for industries focused on material safety and performance.

ISO 1716:2018:Reaction to fire tests for products — Determination of the gross heat of combustion (calorific value) at constant volume in a bomb calorimeter.

Test product scope

Solid biofuels (wood pellets, biomass pellets), peat blocks,Wood (pine boards, oak chips), plywood sheets, plastic sheets (PVC boards, polyethylene sheets), composite materials (glass fiber reinforced plastic, GRP panels), rock wool insulation, mineral wool boards, textiles (cotton fabrics, synthetic fiber cloth, used in building interiors), cardboard (corrugated cardboard, used for packaging building materials).

Features:

1,the apparatus including: calorimeter apparatus, high-pressure oxygen bomb, cold water installations, computer and control system (which can record and display the curve), LCD screen and software;Crucible made of stainless steel;

2, Box paint treatment; all internal parts are made of stainless steel, corrosion-resistant, easy to clean;

3, ignition wire wire break detection, automatic ignition.

4, the test procedure automatically turn off.

5, test abnormalities sound alarm.

6, computer control system:

7, the control box with USB / RS232 serial port with an external brand desktop or laptop operating control; high degree of automation, test procedure safe and reliable, easy to operate;

Specification

1, the bomb capacity: (300 ± 50) mL.

2, oxygen bomb pressure range: 0.5 ~ 3.5MPa, no leakage. The bomb pressure 21Mpa.

3, the crucible: Φ25mm, height (14-19) mm, a wall thickness of 1mm. Stainless steel

4, the stirring power 3W; inner tube stirring speed: 375r / min;

5, Timer: accuracy of 0.5s;

6. Maximum power: 0.5KW;

7, the ambient temperature: (10 ~ 35) ℃, humidity ≤80%;

8, the heat capacity of the instrument: about 10000J / K;

9, the heat capacity of the repeatability error: ≤0.2%;

10, temperature range: (4.5-50) ℃;

11, temperature detection: 0.0001 ℃ resolution, using the PT100 sensor;

12, the inner cylinder volume: 2000ml; oxygen bomb Sealing: oxygenation pressure 2.5 ~ 3.5MPa, no leakage;

13, stirring power: 3W; stirring speed: the inner tube (375r / min);

14, the power supply voltage: AC220V ± 10% 50Hz.
