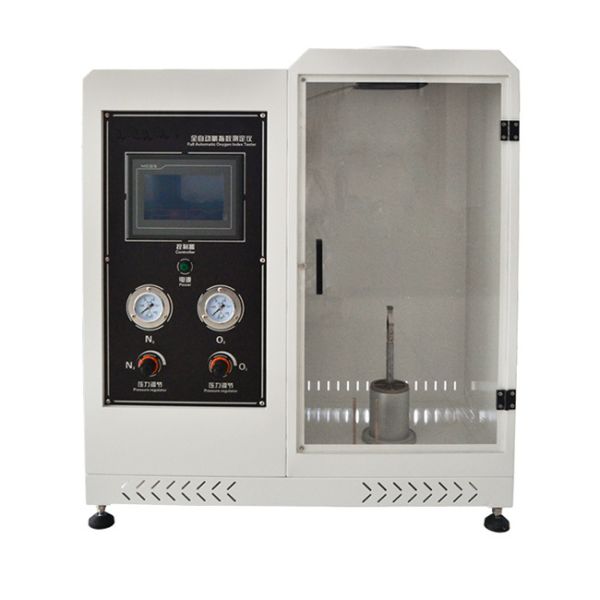

Automatic ISO 4589-2 Oxygen Index Tester for Plastics Flammability Testing
Automatic ISO 4589-2 Oxygen Index Tester for Plastics Flammability Testing
Automatic ISO 4589-2 Oxygen Index Tester for Plastics Flammability Testing
Automatic ISO 4589-2 Oxygen Index Tester for Plastics Flammability Testing
Automatic ISO 4589-2 Oxygen Index Tester for Plastics Flammability Testing
Automatic ISO 4589-2 Oxygen Index Tester for Plastics Flammability Testing
Automatic ISO 4589-2 Oxygen Index Tester for Plastics Flammability Testing
Automatic ISO 4589-2 Oxygen Index Tester for Plastics Flammability Testing
Specifications
Brand Name :
Gold
Model Number :
GD-ISO4589-2
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,,MoneyGram
Supply Ability :
1 per 30 days
Delivery Time :
30days
Packaging Details :
plywood box
Name :
Limiting oxygen index tester
Standard :
ISO 4589-2
Dimensions :
850mm(L)×450mm(W)×985mm(H);
Power Supply :
AC220V, 50/60Hz, 5A;
Weight :
60 kg
Gas Source :
Oxygen, Nitrogen (provided by customer).
Description
Automatic ISO 4589-2 Oxygen Index Tester for Plastics Flammability Testing
Product Description

The ISO 4589-2 Oxygen Index Tester is a high-precision combustion performance testing device developed according to ISO 4589-2:2017 and ASTM D2863 standards. It determines the Limiting Oxygen Index (LOI) of polymer materials including plastics, rubber, textiles, foams, and composites.

Automatic ISO 4589-2 Oxygen Index Tester for Plastics Flammability Testing
Key Features
  • Measures minimum oxygen concentration required for material combustion
  • Uses imported high-precision oxygen sensor and mass flow controller
  • Fully automatic ignition system with single-button operation
  • Real-time data display with automatic LOI value calculation
  • Superior repeatability and accuracy compared to manual instruments
  • Essential for quality inspection, laboratories, and R&D facilities
Standards Compliance

ISO 4589-2:2017 - Plastics - Determination of burning behaviour by oxygen index - Part 2: Ambient-temperature test

Applications

Evaluates combustion characteristics under controlled oxygen-nitrogen mixed gas flow conditions for:

  • Plastic products: PE, PP, PVC, PC, ABS
  • Rubber materials: NR, SBR, Silicone, Fluororubber
  • Textiles: Cotton, polyester, nylon, aramid fiber
  • Foam materials: PU, PS, PE foam (density >100 kg/m³)
  • Composite materials: GFRP, CFRP, laminated wood
  • Building components: Insulators, seals, pipes, sheets
Note: Suitable for solid, laminated, or cellular form products (80-150mm × 10mm × 4-10mm). Not suitable for liquids, powders, or non-self-supporting materials.
Technical Parameters
Parameter Specification
Combustion cylinder dimensions 90mm (inner diameter) × 450mm (height)
Igniter orifice diameter φ2±1mm
Mass flow meters 20L/min (both nitrogen and oxygen)
Touch screen 7-inch
Pressure gauge Class 2.5 accuracy, 0.01MPa resolution
Oxygen concentration resolution 0.1%
Gas source requirements Oxygen/nitrogen purity ≥98%
Test environment 10-35℃, 45-75% humidity
Specifications
Dimensions 850mm × 450mm × 985mm
Power Supply AC220V, 50/60Hz, 5A
Gas Source Oxygen & Nitrogen (customer provided)
