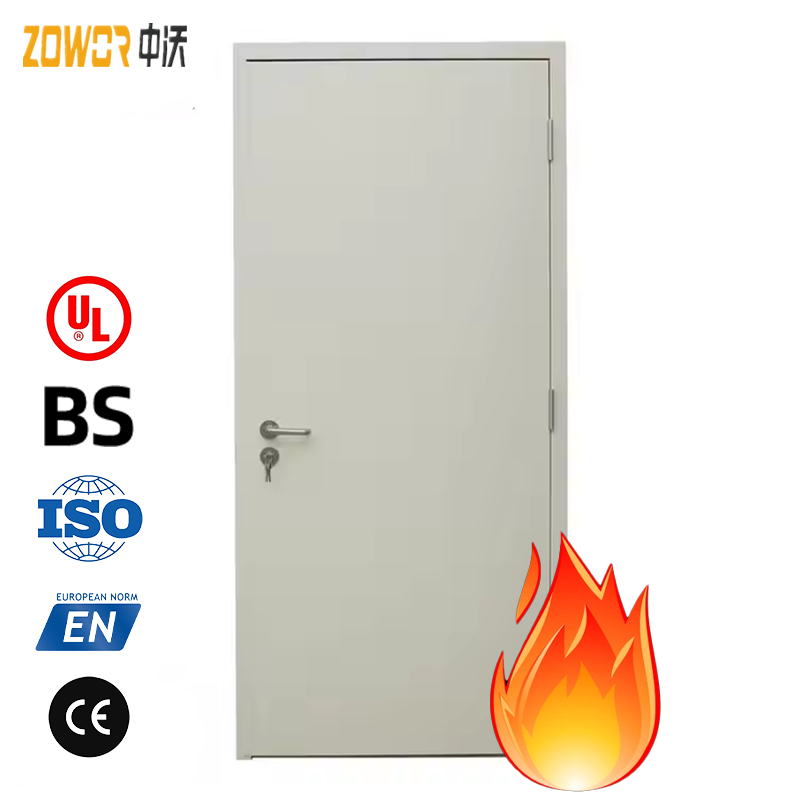

Single Hinged Gla. Steel Fire Resistant Door With Vision Panel For Commercial Building

UL Fire Safety Steel Door

Located in Zhengzhou, the same city as Shaolin temple, Zowor is dedicated in providing services around fire rated doors: production, sales, installation and maintenance of fire doors.

Test standard of our UL steel fire doors is NFPA252, CAN/ULC S104, UL10(b) and UL10(c), under which our fire doors can keep its integrity within 180mins.

Door Dimension

Single Door: by default 36’’wide by 84’’high, maximum limit 48’’wide by 96’’high;

Pair Door: as standard 72’’wide by 84’’high, maximum limit 96’’wide by 96’’high;

Unequal Leaf Door: customized size

Thickness: 45 mm

Door

Face: 1.0 mm Gal. Steel

Core: Magnesium Oxide Fireproof Board;

Skeleton: 1.5 mm Gal. Steel, U-Type, Size 38 mm by 30 mm

Face: 1.0 mm Gal. Steel

Astragal: 1.0 mm Gal. Steel, Size: Wide 25 mm by Thick 2 mm

Smoke Resisting Sealant: Location: Around door edges & Under astragal

Frame

Type: 3-part or 4-part knock-down frame

Material: 1.2mm thick galvanized steel

Width of Frame: 120 mm

Application: Masonry Wall

Reinforcement: 3 mm steel plate on lock, closers, hinges side

Connector: 0.8 mm thick steel sheet

Feature: lock covers on the lock side

Features

1. Each Zowor steel fire exit door is supplied as a single, fully pre-assembled unit. It is ready for wall installation with certified self-tapping screws through predrilled holes in the frame, or by welding if preferred. Once installed, it will operate as a normal steel door.

2. Filled in high refractory and heat-insulating material to ensure life safety;

3. Thickening and reinforcement, solid construction, stable bearing and impact resistance;

4. There is no soldering point on the surface of the product, which is easy to disinfect and clean;

Galss

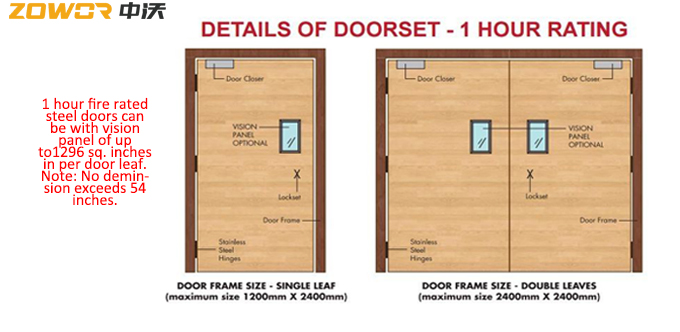

Vision panels can also be inserted into this type of Zowor steel fire exit doors, here we have fireproof galsses to different standard, but with same fire rating ot at least 3 hours.

Finish

Powder Coating

All our UL steel fire doors are factory finished and most popular finish is powder coating. Colors of this finish is according to RAL swatch or upon request of customers.

Wood Grain

Wood grain doors combine the beautiful appearance of timber together with the strength and rigidity of steel. By default we provide you with rosewood, walnut wood, oak wood as popu
