1 3/4''Thick UL Certified Fire Safety Door With Vision Panel For Residential Apartment
1 3/4''Thick UL Certified Fire Safety Door With Vision Panel For Residential Apartment
1 3/4''Thick UL Certified Fire Safety Door With Vision Panel For Residential Apartment
1 3/4''Thick UL Certified Fire Safety Door With Vision Panel For Residential Apartment
1 3/4''Thick UL Certified Fire Safety Door With Vision Panel For Residential Apartment
1 3/4''Thick UL Certified Fire Safety Door With Vision Panel For Residential Apartment
Specifications
Brand Name :
ZHONGWO
Model Number :
ZW-SM07
Certification :
BS， WHI， UL, CCC
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
western union, moneygram,cash, l/c, t/t
Supply Ability :
600 Sets per Day
Delivery Time :
45 Days After Payment Received
Packaging Details :
Inside Bubble Bags+ Strong Carton+Wooden Pallet
Material :
Galvanized Steel
Fire Rating :
30/60/90/120 min
Finish :
Wood Grain, Powder Coating, Prime Paint
Thickness of Door Leaf :
40/45mm
Thickness of Steel Sheet For Door Leaf :
20-18-16 Ga.
Thickness of Steel Sheet For Door Frame :
18-16-14 Ga.
Infilling :
Perlite Board; Honeycomb Paper, Mineral Core
Glass :
UL listed Fireproof Glass
Opening Force :
66-68 N
Opening Type :
Swing Open
Description

1 3/4''Thick UL Certified Fire Safety Door With Vision Panel For Residential Apartment

Fire Rated Safety Steel Door

Zhongwo steel insulated fire door consists of various fire doors of different colors, sizes, fire ratings and surface treatment. Fire rating can be divided into different kinds: 30mins, 60mins, 90mins, 120mins and up to 180mins. As far as the colors and sizes are concerned, all of steel fire doors can be customized as your request. And thanks to different surface treatment methods our fire doors are not only beautiful and brilliant in appearance, they also are provided with many practical advantages such as high anti-corrosion performance, top anti-oxidation performance, best insulation performance and first-class integrity performance into various decorative styles. Thus, Zhongwo single swing flush panel steel insulated fire door can not only be used in traditionally thought industrial and general grade civil buildings, but also in many high-end commercial buildings such as star hotels, high-end office buildings and luxury shopping malls and so on.

Product Description

Specification

Product Name Zhongwo Fire Rated Steel Doors
Fire Rating 20/30/60/90/150/180mins
Standard

NFPA,ANSI/UL 10B,UL10C

BS476-22, EN1634-1:2008
Material of Door Leaf Galvanized Steel Sheet
Material of Door Frame Galvanized Steel Sheet
Thickness of Steel Sheet of Door Leaf 20-18-16 Ga. (1.0/1.2/1.6 mm)
Thickness of Steel Sheet of Door Frame 18-16-14 Ga. (1.2/1.6/2.0mm)
Thickness of Door Leaf

US Standard Door: 40/45 mm

BS Standard Door: 45/50/55/64 mm
Frame Depth 120/130/160 mm
Weight 25-35Kg/㎡
Size

Single Door: 3’X7’; 4’X8’

Double Door: 6’X7’; 8’X8’

Or customized
Open Style Swing Open
Infilling Material

Standard: Fireproof Perlite Board

Options: Honeycomb Paper, Mineral Wool, Polyethylene Foam
Surface Treatment Prime Paint(UV/PU), Powder Coating, Wood Grain
Color Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request
Glass

Standard: American or British Standard Tested Clear or Wired Glass

Or Customized As Request
Fireproof Seal Strip

FPJ-B-20X 2

FPJ-A-15X 2

Or Customized
Warranty 2 years
Package PE Paper+Double Layer Strong Carton or wooden pallet
Delivery Time 45Days After Payment Received

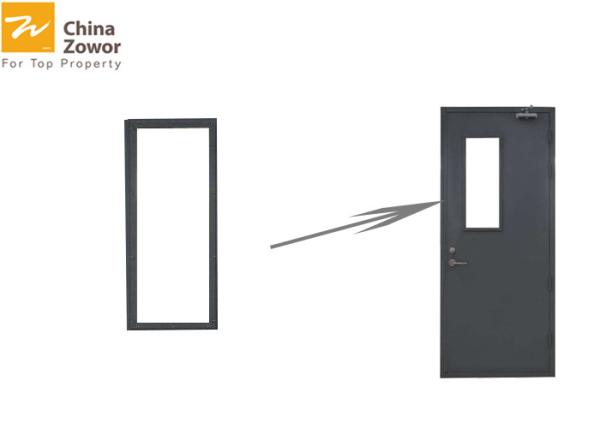

Glass

A. Reinforcement channel is provided.

B. Glass frame and glazing bead is steel.

C. Glass is UL listed glazing material.

D. Maximum allowable glass area:2 Hours, 100 sq. in. Per door leaf (Fire lite)

Package

Package method is vital to ensure the safety and to avoid any damage in transportation, so we values very much the correct package.

Standard: PE Paper+Double Layer Strong Carton or wooden pallet

We can also pack doors and frames as your request, just exchange the details with us.
