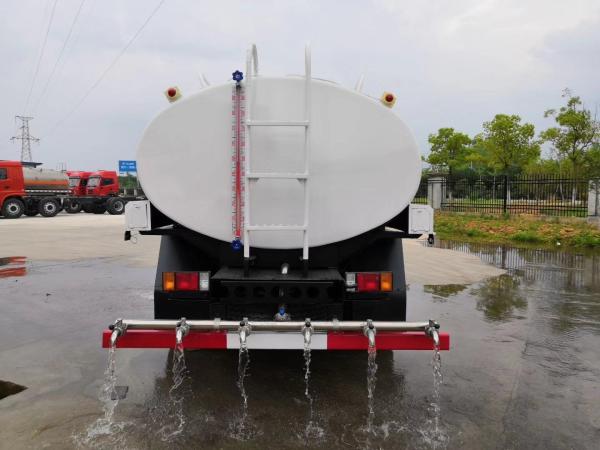

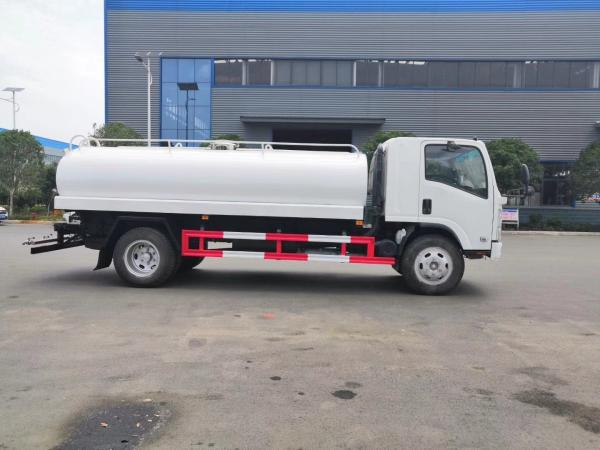

ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
Specifications
Place of Origin :
China
Brand Name :
CLW
Certification :
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Model Number :
CLW
MOQ :
1
Price :
15000-35000 per unit
Packaging Details :
Nude
Delivery Time :
65 working days after deposit
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
500PCS/Week
Product Name :
Drinking Water Carrier Truck
Model NO. :
I SUZU GLF
Emission Standard :
Euro 4
Sprinkling Area :
＞16m
Transmission Type :
Manual
Payload :
20T
Fuel :
Diesel
Drive Wheel :
4×2
Engine Capacity :
6 - 8L
Condition :
New
Capacity :
8000 Liter
Feature :
8 Ton
Engine :
Diesel 190HP
Driver Type :
LHD
Transport Package :
by 40"Hq or by Cargo Bulk Shipment
Specification :
8400* 2500*3200 mm
Trademark :
I SUZU GLF
Origin :
China
HS Code :
8705909990
Customization :
Available
Volume :
15001 - 30000L
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Manufacture :
Chengli Special Automobile Co.,Ltd
Description
ISUZU Elf 8m3 8ton 8000L Drink Water Transport Truck with Liquid Lever

Potable water tanker (also called drinking water tanker, stainless steel water tanker, agua potavelwater, tank truck, water truck, water lorry, water tanker, watering truck, Camión cisterna) is used to transport and supply potable water, widely used in drought relief.

We adopt non-toxic treatment inside tank or tank made of stainless steel, so it is very suitable for transporting drinking water.

I suzu Elf 8m3 8ton 8000L Drink Water Transport Truck with Liquid Lever Chassis:
CNHTC trucks , ISUZE, Beiben trucks , Shacman trucks , FAW trucks , Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks or others Chinese trucks Chassis
ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
ISUZU Elf 8m3 8ton 8000L Drink Water Transport Truck with Liquid Lever Technical Date:
Main Technology Parameter
Model Name Isuzu water tanker truck 10000L
Driving Type 4×2,left hand drive
Color White,yellow,box can choose
Weights
Rated payload weight(kg) 10000
Curb weight(kg) 4500
Dimensions
Wheelbase(mm) 4475
Overall Dimension(mm) 7650*2300*2650
Box dimension 10000L(2700 gallon)
Max speed(km/h) 110
Engine
Engine model 4HK1-TCG40(190HP)
Engine type 4 stroke water-cooled,inter-cooling
No. of cylinders straight-6 cylinders
Displacement(L) 5.193L
Max. output (kw) 139kw
Drive Line
Transmission MLD 6 speeds ,6 forwards,1 reverse gear,manual operation
Steering Power steering
Brake Oil brake OR air brake
Cab
Cabin I suzu 700p
Standard configuration with A/C,oil brake with vacuum booster pump,power steering
Axle
Front axle 4tons
Rear axle 7 tons
Tire specification
Tire specification 8 .25R16 ,8.25-16 standard tire,6 tires+1 spare tire
Water truck
Water tanker material Stainless steel 304-2B Food grade
Introduction 1. Suction≥7m Sprinkler width≥14m Range≥28m
2. with front spout, back spill and side spout function
3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)
4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.
Manhole Man way access hole on top of tank;1 units DN500mm manhole
Horse reels Two hose reels at each side of the truck
Water pump Water pump model: CLW80QZF-60/90N (N/S)
Water pump flow rate(L/m): 60m3/h
Head of delivery(m): 90m
Self-priming function(min/4m):1.5
Efficiency(%):95%
Related rotate speed(r/min)1180
matched power(kw):22

ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever

ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

ISUZU ELF 8M3 8ton 8000L Drinking Water Tanker , Water Transport Truck With Liquid Lever
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
