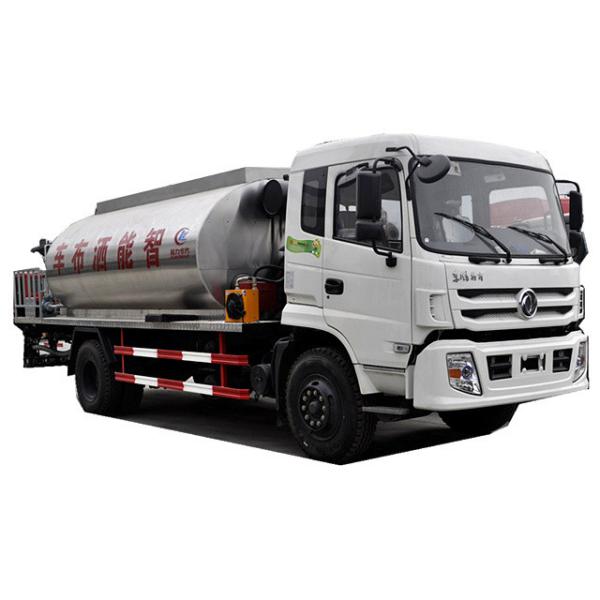

Dongfeng 8000 Liters Asphalt Distribution Truck , Semi Automatic Asphalt Paving Truck

Specifications

Certification :

ISO9001, ISO14001, OHSAS18001, CCC

Place of Origin :

China

Brand Name :

Dongfeng

Model Number :

CLW

MOQ :

Price :

15000-35000 per unit

Packaging Details :

Nude

Delivery Time :

65 working days after deposit

Payment Terms :

50% Deposit,Balance should be paid before ship out

Supply Ability :

500PCS/Week

Product Name :

Asphalt Paving Truck

Model NO. :

Dongfeng

Type :

Asphalt Distributor

Object :

Asphalt Concrete Pavement

Moving Type :

Mobile

Mixing Method :

Intermittent Compulsory

Automatic Grade :

Semi Automatic

Product Capacity :

>400t/h

Condition :

New

Usage :

Asphalt Spray

Capacity :

8000L to 10000L

Name :

Asphalt Bitumen Tank Truck

Volume :

8 Ton 10 Ton

Name1 :

Munition Asphalt Truck

Transport Package :

RO-RO

Specification :

7400x2280x2550MM

Trademark :

Dongfeng DFAC

Origin :

China

HS Code :

8705909990

Package Size :

1.00cm * 1.00cm * 1.00cm

Package Gross Weight :

1.000kg

Customization :

Available

After-sales Service :

12 Month

Warranty :

10 Year

Support payments in USD

Manufacture :

Chengli Special Automobile Co.,Ltd

Description

Dongfeng 8000 liters asphalt distribution truck,8 ton new asphalt pavement maintenance truck

Bitumen spray truck, aslo called asphalt sprayer or saphalt paving truck, is specially designed and produced for transporting or spraying liquid asphalt(Including hot asphalt, emulsified asphalt and residue),in addition it can also supply loose asphalt binder to the soil, the construction of asphalt stabilized soil pavement or pavement base.
Bitumen spray truck is a black road construction machinery, one of the main equipment for the construction of road, city roads, airports and port terminals.

Main Specifications
Product Brand	Dongfeng	The first Batch	287
Product Name	Asphalt spraying	Product Model	CLW5161GLQT4
Total Weight (Kg)	15990	Volume(m3)	8.5
Rated load(Kg)	7300	Overall Dimension(mm)	7760×2500×2880
Curb Weight(Kg)	8495	Cargo Compartment Size(mm)	××
Cab seats (man)	3people	Payload utilization factor
Approach angle/departure angle(°)	32/15	Front overhang/Rear overhang(mm)	1250/2560
Number of axles	2	Wheelbase(mm)	4500,4700,4950, 4800,5100,3950
Axle Load(Kg)	5995/9995	Maximum Speed(Km/h)	88
Chassis Technical Parameters
Chassis Model	EQ1160GKJ1	Chassis Name	Truck Chassis
Brand Name	DongFeng	Manufacturingenterprise	Dongfeng motor co., LTD
OverallDimension(mm)	7650,8200,8900,8750, 9000,7370×2480×2810	Number of wheels	6
Approach angle/ Departure angle(°)	32/26,32/24,32/22,28/28, 28/24,28/20,28/25	Wheel specification	10.00-20 16PR,10.00R20,9.00-20
Plate spring count	9/10+8	Front gauge(mm)	1940,1900,1810
Fuel Species	Diesel	Track rear(mm)	1860,1800
Emission standard	GB3847-2005,GB17691-2005 Euro III
Engine type	Engine manufacturing enterprise	Displacement(ml)	Power(Kw)
ISB170 30 ISB190 30	Dongfeng engine co., LTD Dongfeng engine co., LTD	5900 6280	125 140

Dongfeng 8000 liters asphalt distribution truck,8 ton new asphalt pavement maintenance truck made in china Application:

Asphalt distribution truck is widely used in highway construction and highway maintenance engineering. It can be used for the different pavements of upper and lower sealing layer, prime coat, waterproof layer, adhesive layer, asphalt surface treatment, bituminous penetration pavement, and fog sealing layer and other construction. It also can be used for transportation of liquid asphalt or other heavy oils.

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14

millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Overseas Market

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in

Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,

Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
