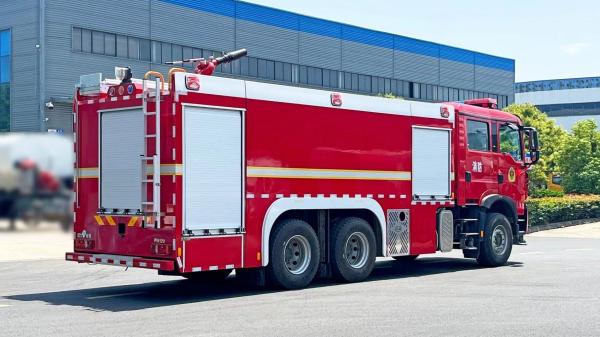

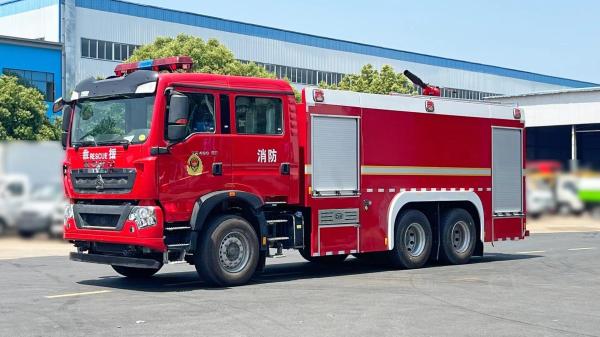

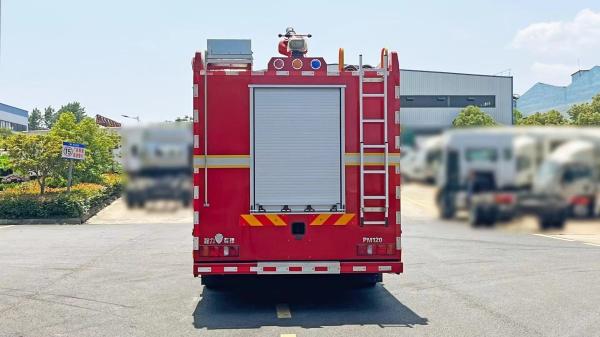

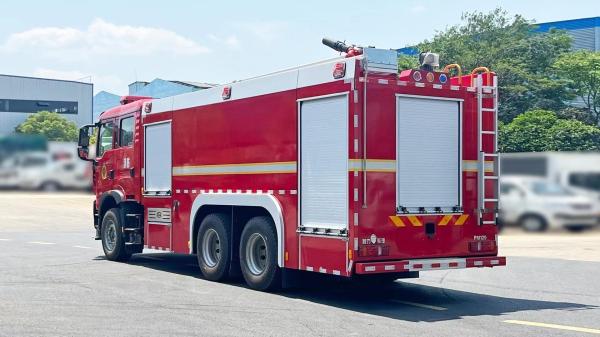

HOWO Sino Water Tanker Fire Truck, also often referred to as a Fire Pumper, Tender, or Sprinkler Fire Engine, is a robust firefighting and emergency vehicle built on a Sinotruk HOWO chassis. These trucks are designed primarily for transporting and delivering large volumes of water and/or foam to a fire scene.

They are highly customizable, but generally share several core features:

Chassis Brand: Sinotruk HOWO (known for powerful performance and durability).

Drive Types: Common configurations include 4×2, 6×4, and 8×4 for standard use, and 4×4 or 6×6 for off-road/military applications.

Engine: Powerful Sinotruk diesel engines (e.g., in the range of 266 HP to over 400 HP), often meeting various Euro emission standards (Euro II to Euro VI).

Cabin: Typically a double-row crew cab to accommodate a firefighting crew (e.g., 2 plus 4 or 6 passengers), often equipped with air conditioning and essential controls.

Water Tank Capacity: Highly variable, ranging from about 4,000 liters (L) to over 20,000 L or more.

Foam Tank Capacity (Optional): Many models are designed as water/foam trucks and include a separate foam tank (e.g., 450 L to 4,000 L or more).

Fire Pump: Equipped with a high-performance fire pump (e.g., CASC or Chinese domestic brands like CB10/40, CB10/60, CB10/80) with flow rates typically from 40 L/s up to 80 L/s or more at a pressure of 1.0 MPa (10 bar).

Fire Monitor (Water Cannon): Mounted on the roof, often manually or automatically controlled, with a range of 55m to over 70m and a high flow rate (e.g., 2,880 LPM or 48 L/s to 80 L/s).

• Pumper/Tender: Functions as a pumper (delivering water under pressure) and a tender (carrying a large volume of water).
• Sprinkler/Multi-function: Many models also have road sprinkling capabilities, allowing them to be used for road cleaning, dust suppression, and general landscaping/irrigation, making them multi-purpose vehicles often used by local municipalities and in forestry.
• Self-Priming: The fire pump often features a strong suction depth (up to 7m) to draw water from natural sources like rivers or ponds.

• Tank Material: Water and foam tanks are commonly made from anti-corrosion materials like high-quality carbon steel, stainless steel, or PP composite material.
• Compartments: Feature equipment boxes with aluminum alloy rolling shutters for storing firefighting tools (hoses, nozzles, breathing apparatus, rescue tools, etc.).
• Safety and Visibility: Equipped with warning lights, sirens, and various illumination for night operations.

Sinotruck howo Fire Fighting Truck (also called 17.4CBM Fire fighting trucks, sinotruck howo City fire rescue vehicle, 12 wheels Water-foam Fire truck, 8x4 Industrial fire fighting trucks, sinotruck howo fire trucks) is apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance.

We can supply water fire truck, foam fire truck, Foam and powder fire vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle, CAFS fire trucks and so on.

All our fire trucks with huge fire equipment and you can put fire-fighting immediately.

• Sinotruck howo chassis, perfect performance
• Sinotruck howo engine & gearbox, super powerful, no overhaul within 100,000 km.
• Water tank and Foam tank capacity can be optional.
• Easy operation and easy maintenance.
• Various types of fire equipment are available.

HOWO Sino Water Tank Fire Pumper Tender Sprinkler Fighting Engine Truck is a heavy-duty fire apparatus built on the Sinotruk HOWO chassis. As a versatile firefighting and water transport vehicle, its specifications can vary widely based on the model and customer requirements, but here are the general key details:

• Chassis Manufacturer: Sinotruk (China National Heavy Duty Truck Group) - HOWO series.
• Drive Type: Common configurations include 4x2, 6x4, and 8x4 (for very large tenders).
• Engine: Diesel engine (e.g., HOWO MC07H.35-60, WD615 series, or others).
• Horsepower (HP): Varies significantly, common ranges include 280 HP to 400 HP or more.
• Emission Standard: Varies by market, with models available for Euro 3 up to Euro 6.
• Transmission: Manual gearbox (e.g., HOWO 10-shift or similar).
• Cab: Typically a double-row (crew) cab designed to accommodate 2 to 6 firefighters (including the driver).

• Function: Serves as a Water Tanker (Tender), Pumper, and Sprinkler for direct firefighting and water supply.
• Tank Capacity: This is the most variable specification, with common water tank volumes ranging from 8,000 Liters (8m³) to over 20,000 Liters (20m³) or more.
• Example: A common 4x2 model might hold 8,000 Liters of water.
• Foam Tank (Optional): Many models are equipped with a separate foam tank (e.g., 500 Liters to 4,000 Liters) to create water/foam mixtures for different fire types.
• Tank Material: Often durable materials like Carbon Steel (with anti-corrosion treatment), Stainless Steel, or PP Composite Material (for water/foam).

• Pump Model: Commonly a Chinese-standard pump like the CB10/80 or CB10/60 (indicating a flow rate).
• Rated Flow: Varies with the pump, often 60 L/s (Liters per second) or 80 L/s at a rated pressure.
• Rated Pressure: Typically around 1.0 MPa (10 Bar).
• Suction Depth: Capable of drawing water from external sources (ponds, rivers) with a suction depth of up to 7 meters.
• Installation: Usually rear-mounted or mid-ship mounted.

• Monitor Model: Commonly a PS80 or similar model.
• Flow Rate: Matches the pump's capacity, often 80 L/s.
• Operating Pressure: Typically around 1.0 MPa.
• Jet Distance (Range):
  • Water: ≥ 65 meters (approx. 213 feet)
  • Foam: ≥ 55 meters (approx. 180 feet)
• Range of Motion: Typically 0−360∘ horizontal rotation and a significant vertical range (e.g., −15∘ to +80∘).

• Compartments: Aluminum alloy compartments with rolling shutters for tool and equipment storage.
• Auxiliary Systems:
  • Sprinkler Nozzles: Front, rear, and side sprinkler nozzles for road wetting, dust suppression, or self-protection.
  • Rescue Equipment: May include ladders, suction hoses, fire hoses (various sizes, e.g., 65mm, 80mm), handline nozzles, fire extinguishers, axes, crowbars, etc. (Equipment lists often comply with national standards like GB or international standards like NFPA).
• Electrical/Warning: Long-row warning lights (red/blue), siren, and scene lighting.

HOWO Sino Water Tanker Fire Truck, Fire Pumper Tender, or Sprinkler Fire Engine Truck is a versatile multi-functional vehicle with a wide range of applications, combining the capabilities of a fire engine and a water sprinkler truck.

Its main applications include:

• Initial Fire Suppression: Delivering water and/or foam to the fire scene to independently extinguish fires, especially in areas with limited or no fire hydrant access (rural areas, industrial sites, airports, harbors).
• Water Supply/Relay: Acting as a water tender (tanker) to supply water to other pumper trucks, or drawing water from open sources (rivers, ponds) using its powerful pump.
• Industrial and Specialized Fires: Models equipped with foam tanks are crucial for fighting liquid-fuel fires, petrochemical fires, and other industrial incidents.
• High-Pressure Spraying: Utilizing the roof-mounted water cannon/monitor for long-distance, high-volume water or foam discharge.
• Emergency Water Supply: Providing temporary water for disaster relief or other emergencies.

These vehicles, often referred to as "fire sprinkler trucks" or "multi-functional sprinkler trucks," leverage their water tank and spraying systems for everyday uses:

• Road and Street Cleaning: Using front flush, rear spray, and side spray nozzles to wash road surfaces and remove dust.
• Dust Suppression: Spraying water to mitigate dust in mining areas, construction sites, and on unpaved roads.
• Landscaping and Irrigation: Watering trees, green belts, and lawns in parks and urban areas.
• Pesticide Spraying: Some models can be equipped with dosing units for spraying pesticides.
• High-Altitude Cleaning: Using the rear working platform and water cannon to clean the outside of high-altitude buildings.

Chengli Special Automobile Co., Ltd. (often referred to as CLW Group) is a major, state-designated manufacturer and exporter of a vast range of special purpose vehicles in China. It is one of the leading companies in the Chinese special vehicle industry.

Here is an overview of the company:

• Location: Headquartered in Suizhou City, Hubei Province, China, which is known as the "Capital of China's Special Purpose Vehicles."
• Scale: It is a large-scale manufacturing group with tens of thousands of employees and a substantial annual production capacity of various special vehicles.
• Reputation: The company and its "CLW" brand are recognized as a "China Famous Trade Mark" and a "National High-tech Enterprise." It is often noted for having the largest variety of products and the most complete production qualifications in the industry in China.
• Certifications: The company has numerous international and domestic certifications, including ISO 9001, ISO 14001, OHSAS 18001, and the China Compulsory Certification (CCC), along with specialized licenses for pressure vessels and fire trucks.

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Chengli Special Automobile Co., Ltd. (CLW Group) has a very strong and broad presence in the overseas market, exporting its wide range of special purpose vehicles to more than 80 countries and regions globally.

Their primary export regions and notable countries include:

Africa is a major market for Chengli, especially for sanitation, water, and construction vehicles.

• West Africa: Nigeria, Ghana, Senegal, Mali, Niger, Togo, Benin, Algeria.
• East & Southern Africa: Tanzania, Zambia, Angola, Ethiopia, Mozambique, Congo, Sudan, South Africa, Zimbabwe.

Chengli maintains a significant footprint across Asia, particularly in Southeast and Central Asia, and is active in the Middle East.

• Southeast & East Asia: Vietnam, Philippines, Myanmar (Burma), Cambodia, Laos, Thailand, Malaysia.
• Central Asia: Kazakhstan, Uzbekistan, Kyrgyzstan, Mongolia, Russia.
• South Asia: Bangladesh, Pakistan, Sri Lanka.
• Middle East: Iraq, Iran, Jordan.

The company has successfully expanded its reach into the Americas and Oceania.

• South America: Chile, Bolivia, Peru, Venezuela.
• Oceania: Australia, New Zealand.

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
