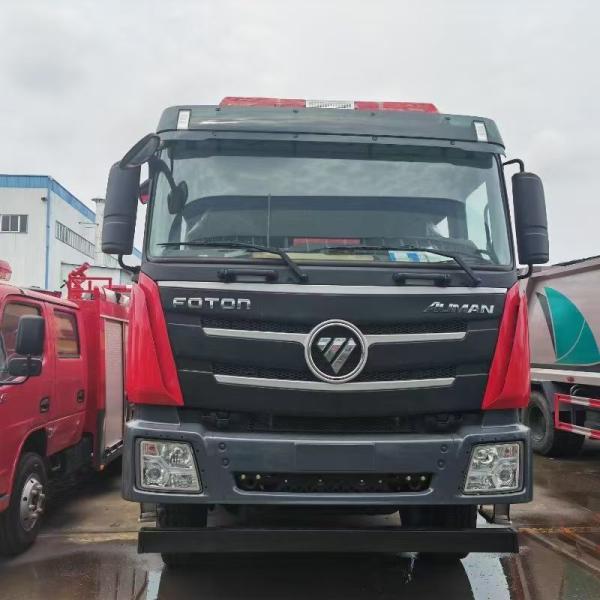

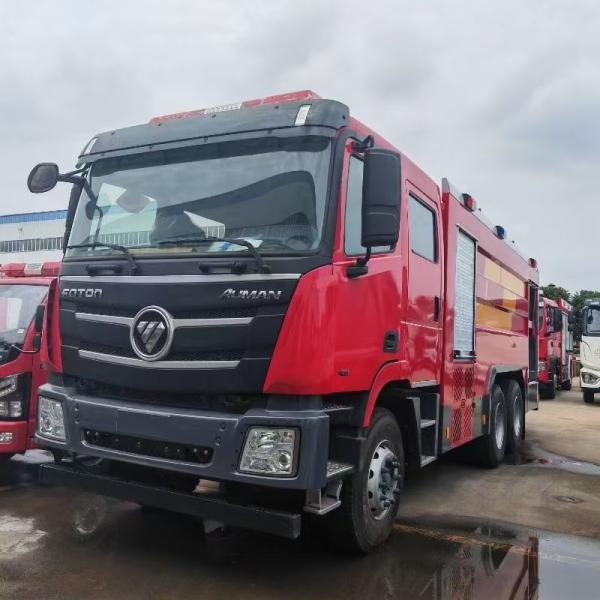

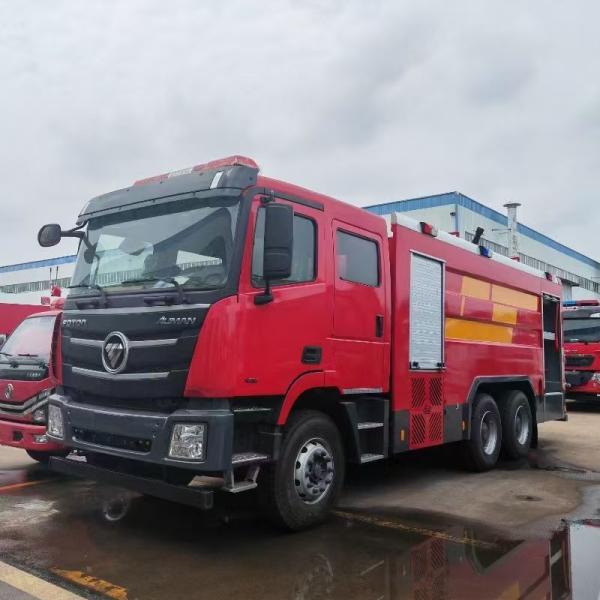

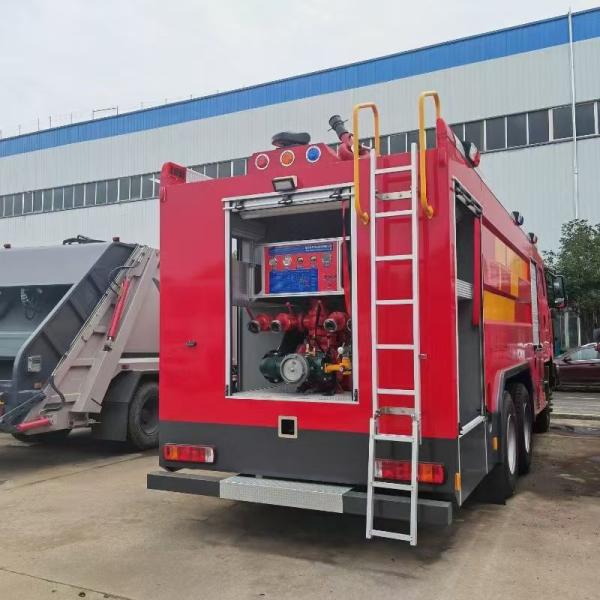

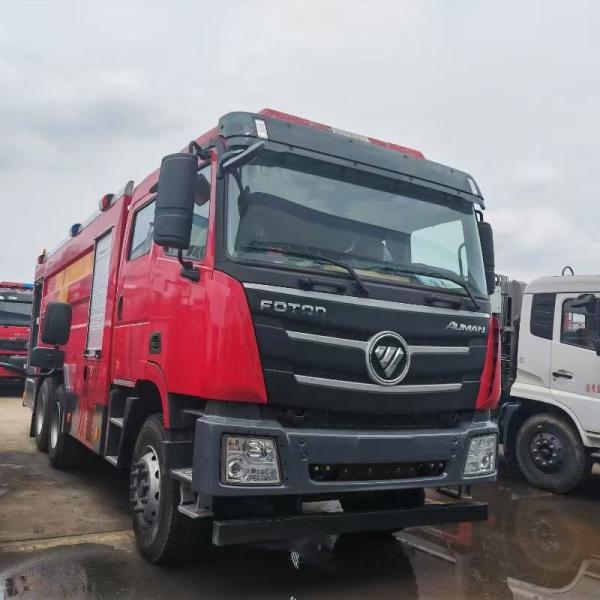

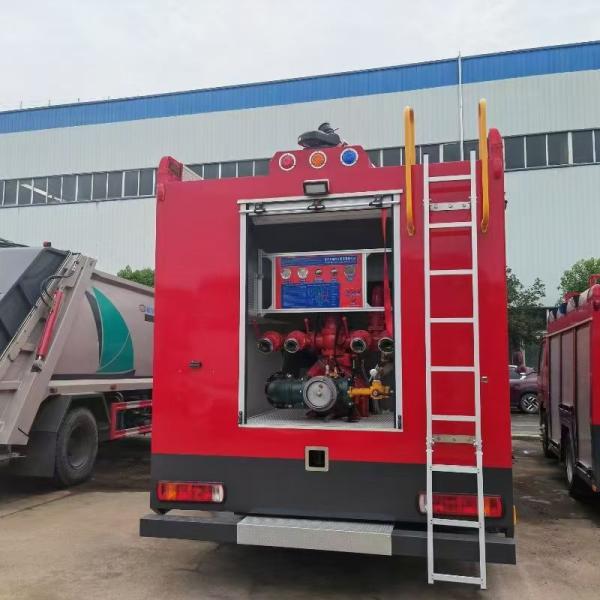

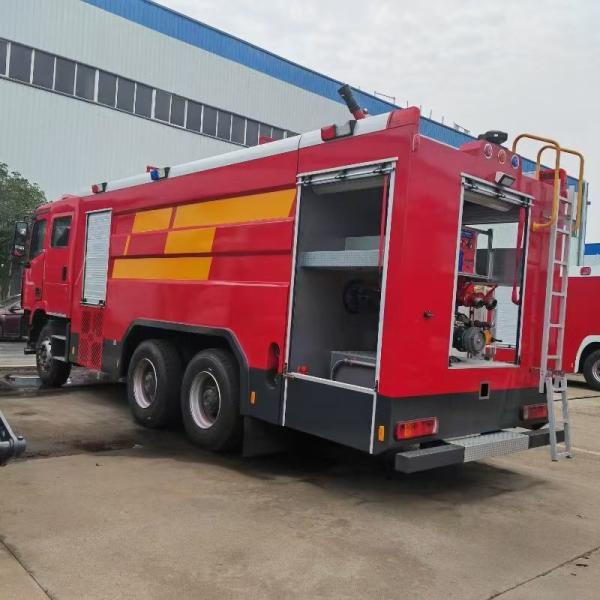

Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Foton Auman Foam Fire Department Rescue Truck 6x4 Customization
Specifications
Brand Name :
Foton Auman
Model Number :
CLW
Certification :
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Place of Origin :
China
MOQ :
1
Price :
15000-35000 per unit
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
500PCS/Week
Delivery Time :
65 working days after deposit
Packaging Details :
Nude
Truck Model :
Fire Department Rescue Truck
Model NO. :
Foton Auman
Volume :
＞10000L
Emission Standard :
Euro 4
Transmission Type :
Manual
Payload :
20T
Fuel :
Diesel
Drive Wheel :
6×4
Horsepower :
251-350hp
Condition :
New
Brand :
Foton
Capacity :
10000 Liters
Drive Model :
6*4
Transport Package :
Nude
Specification :
10950*2365*3600 mm
Trademark :
Foton
Origin :
China
HS Code :
8705309000
Customization :
Available
Type :
Rescue
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Manufacture :
Chengli Special Automobile Co.,Ltd
Description
Foton Auman Foam Fire Fighter Department Rescue Vehicles Price


Fire Engine(also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximally .

Fire fighting truck can be divided into many types:
1. According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
2. According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
3. According to chassis brand , There are I SUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
4. According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck .

Technical date:
FOTON 6*4 fire truck
Drive Model 6*4
Chassis BJ1253VLPJE
Fact cubage 11.655cbm(water tank:9cbm, foam tank 2.655cbm)
Vehicle Main Dimensions Dimensions(L x W x H)(mm) 9905x2480x3500
Wheel base (mm) 4300+1350
Overhang (front/rear) (mm) 1555/2600
Wheel track (front/rear) (mm) 2005/1865/1865
Approach/Departure angle(°) 18/16
Weight in KGS Curb Weight 12040
GVW. 24490
Max. driving speed(km/h) 90
Engine Model WP10.270
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 270
engine capacity(ml) 199
Emission standard Euro III
Gearbox 8 forwards & 1 reverse
Clutch Reinforced diaphragm clutch
Steering Gear Power steering, hydraulic steering with power assistance
Fuel tank (L) 200
Tire 12.00R20 , 10pcs + 1 spare
Brakes dual circuit compressed air brake
UPPER
Water tank Volume 9cbm
Foam tank Volume 2.655cbm
Loading Capacity 11.655
Protective material Carbon steel
Key Equipment

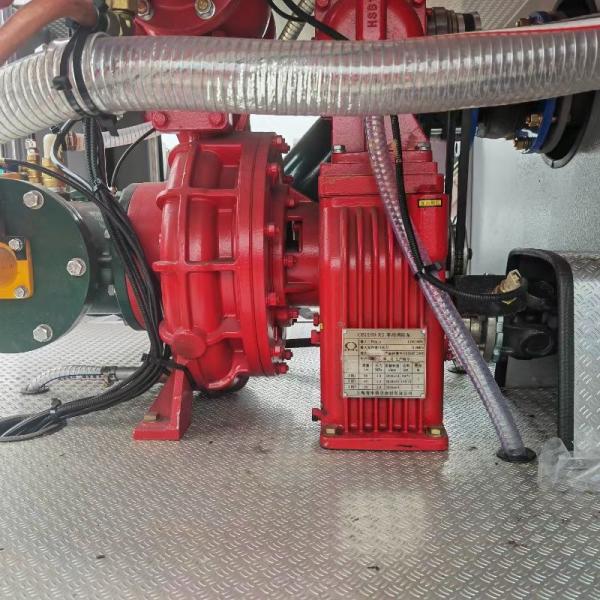

Fire Pump Mode CB30.60
Flow 60L/s
Pressure 1.0Mpa
Fire Monitor Mode PL48
Pressure 1.0-1.2MPa
Flow 48L/S
Fire Distance(water/foam) ≥65m/60m
Rotation Angle(°) 360/-30~80
Chassis brand :
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , I SUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks
