Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Specifications
Certification :
ISO9001, ISO14001, OHSAS18001, CCC
Brand Name :
Shacman L3000
Model Number :
CLW
Place of Origin :
China
MOQ :
1 unit
Price :
15000-35000 per unit
Packaging Details :
Nude
Delivery Time :
65 working days after deposit
Payment Terms :
50% deposit,Balance should be paid before ship out
Supply Ability :
500PCS/Week
Model NO. :
Shacman L3000
Emission Standard :
Euro 3
Payload :
16T
Transmission Type :
Manual
Fuel :
Diesel
Tank Volume :
160000L
Drive Wheel :
4x2
Hoesrpower :
270hp
Condition :
New
Name :
Fecal Suction Truck
Transport Package :
Bulk, RO-RO, Frame, Container
Specification :
10100*2500*3850mm
Trademark :
Shacman L3000
Origin :
China
HS Code :
8503009090
Customization :
Available
After-sales Service :
12 Month
Warranty :
12 Month
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Manufacture :
Chengli Special Automobile Co.,Ltd
Description

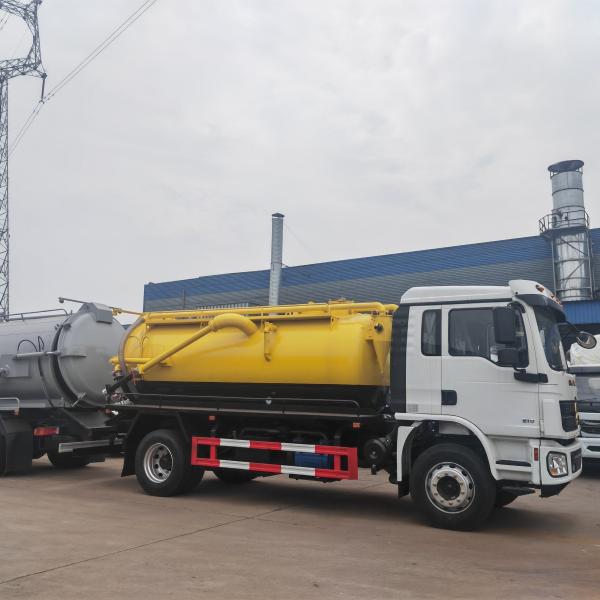

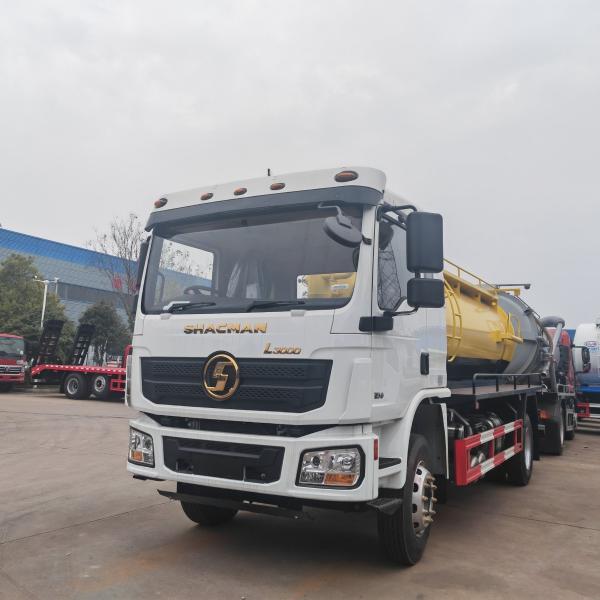

Shacman L3000 Sewage Suction Truck High Pressure Vacuum Fecal Septic Tank Truck

Shacman L3000 Sewage Suction Truck is designed for efficient waste removal, particularly sewage, fecal matter, and septic tank cleaning. It integrates a vacuum system for suction and a high-pressure system for cleaning and flushing. These trucks are commonly used in municipal waste management, septic tank cleaning, and industrial waste management.



Advantages of Shacman L3000 Sewage Suction Trucks:
Reliable Performance: The engine and chassis provide excellent durability, even in demanding conditions.

Efficient Waste Removal: The combination of high-pressure water jetting and powerful vacuum suction makes these trucks highly effective for sewage, fecal, and industrial waste removal.

Versatility: These trucks can be used in a variety of applications, making them a good choice for municipalities, industrial sites, and emergency waste management operations.

Cost-Effective: Compared to other brands, Shacman trucks offer a good balance of affordability and functionality.



Truck Specification
truck model CLW5253GXWT10
Cab SHACMN L3000 Flat-top single row cab, with power steering. Electronic flameout, A/C
Driving Type 4x2 Left hand driving
Max Speed (km/h) 90
Overall dimension(mm) 8550×2500×3455
GVW( kg) 19000
Mass in working order ( kg) 8575
Wheelbase(mm) 4600
F/R track base (mm) 2022/1830
F/R overhang (mm) 1500/2380
Approach/Departure Angel 16/14
Tire 10.00R20 (10+1)
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box 8-speed
Bridge Front axle 4.8T
Rear axle 10T
Enging Model WD6.210E32
Fuel Type Diesel fuel
Type Water-cooled six-stroke,, direct injection, turbocharged
Exhaust(ml) 6700
Max output power/rotate speed (hp /rpm ) 210/2200
Max torque/rotate speed(N.m/rpm) 1050/1100~1600
Braking system Service Brake Compressed air brake
Park Brake Spring energy
Auxiliary brake engine exhaust brake
Eletric system 24v
Upper-Body specification
Volume of tank 10000l
Color Painted in the corporation's colours with logo on both front doors as specified by the client
Material of tanker 5mm Carbon stell (Q235)
Special function Suction height ≥9(m)
Suction time 250(S)
Maximum Inclination Angle ≥45°
maximum vacuum ≥11 MPa
Lifting time ≤45 S
the Cover opening Angle ≥75°
The cover opening time ≤25 S
Suction pipe 3m length and 100 mm in diameter
Hose Racks Fitted on both sides of tank, to accommodate a minimum of seven hoses each
Fittings Four-way change valve fitted to pump
Drain separator
vacuum pump
Fully opening rear door
Sight glasses at top and bottom of tank
Ladder: For access to top of tank complete on top of tank
vacuum pump
 pump type SK-12
motor power (kW) 11
weight (Kg) 460
pump speed (r.p.m) 1440
suction pressure (MPa) 5.4
diameter (mm) 80
Brief introduction of function It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.


Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Shacman L3000 Suction Sewage Truck High Pressure Vacuum Fecal Septic Tank Truck
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
