Specifications
Brand Name :
Shacman X9
Model Number :
Shacman X9
Certification :
ISO9001, ISO14001, OHSAS18001, CCC
Place of Origin :
China
MOQ :
1 unit
Price :
48000USD
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10 unit per week
Delivery Time :
65 days after deposit
Packaging Details :
Nude
Truck Brand :
Shacman X9
Produce name :
Waste Collection Compactor Garbage Truck
Manufacture :
Chengli Special Automobile Co.,ltd
Description

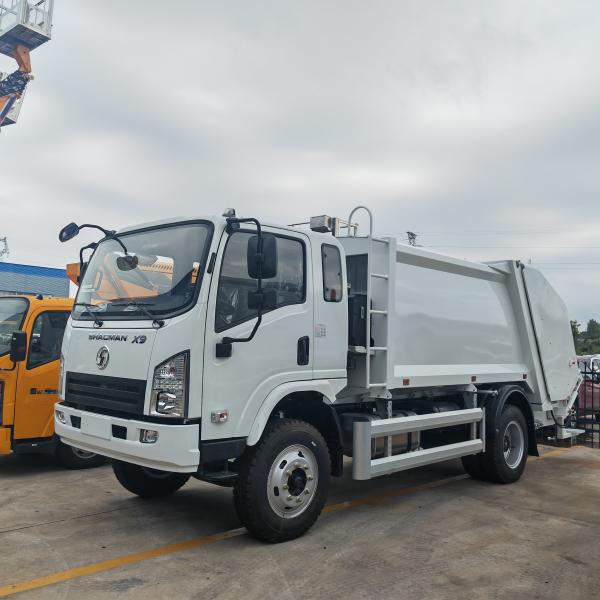

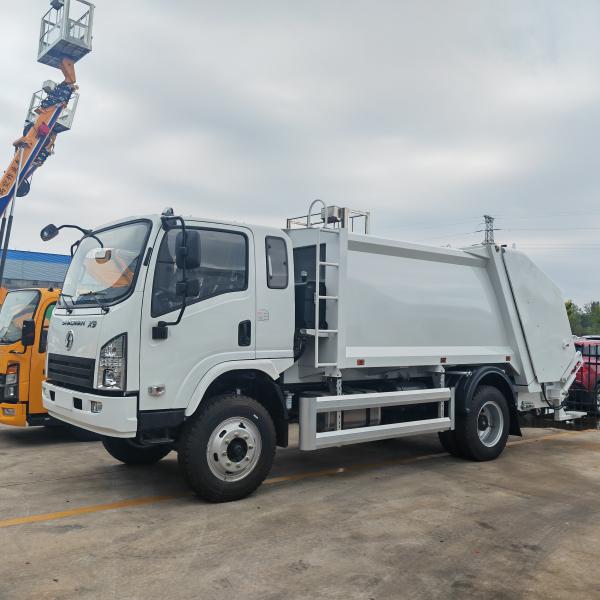

Shacman X9 Compression Waste Collection Compactor Garbage Truck

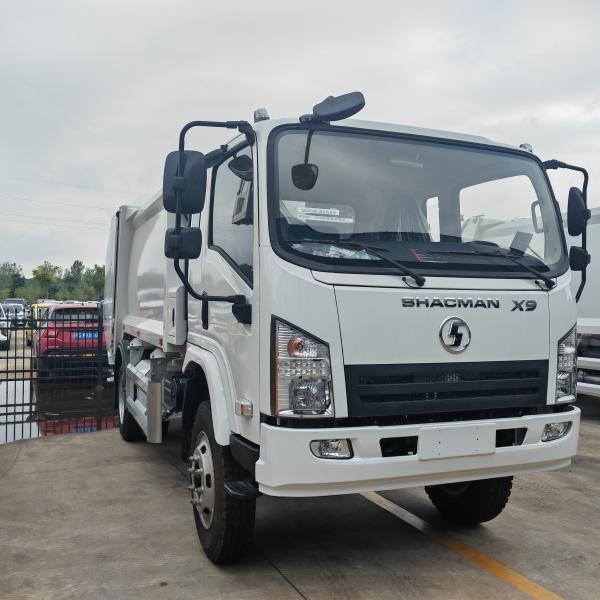

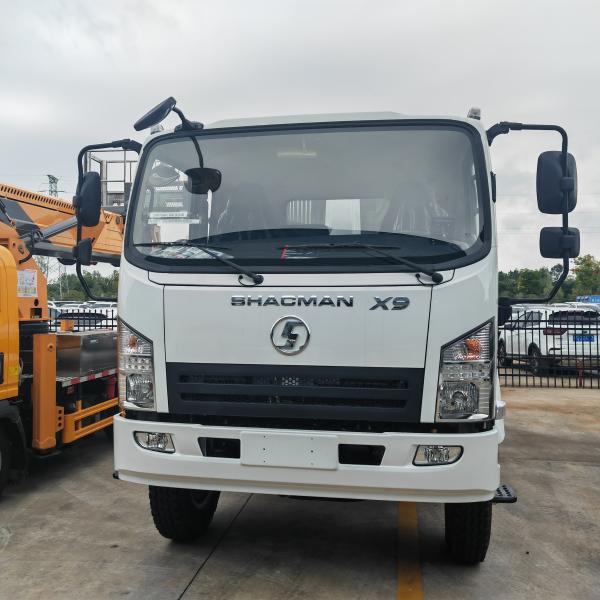

Chassis: Shacman X9 4x2 chassis.
Engine: The truck can be equipped with various engines, including Yunnei and Weichai, with power outputs ranging from 116 HP to 160 HP. Some models may have a displacement of 2.5L or 3.66L.
Transmission: Typically features a manual transmission with 6 forwards and 1 reverse gear, or 8 forwards and 1 reverse.
Dimensions: Overall dimensions can vary, with some models measuring approximately 6,900 x 2,320 x 2,600 mm.
Wheelbase: Common wheelbases include 3260 mm or 3800 mm.
Maximum Speed: The maximum driving speed is around 90 km/h.
Compression and Collection System
Garbage Tank Volume: The compression tank, or garbage body, comes in various capacities, commonly 6 CBM, 8 CBM, or up to 14 CBM.
Compaction Ratio: The compression ratio is high, typically ranging from 0.6 to 0.8 tons per cubic meter, which significantly reduces the volume of waste and increases transportation efficiency.

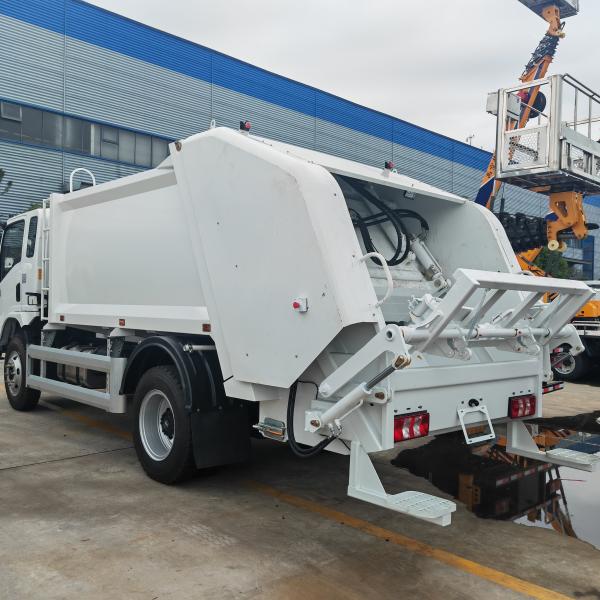

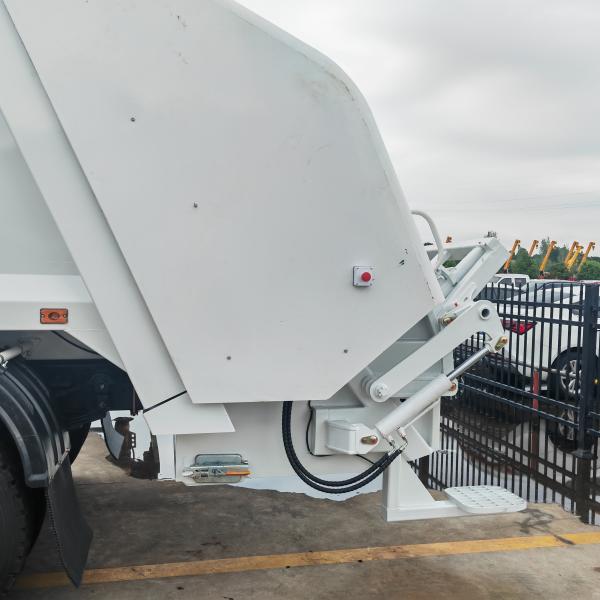

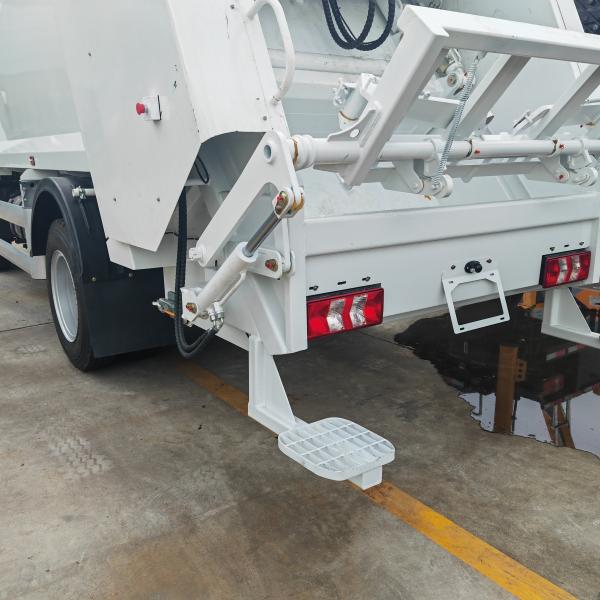

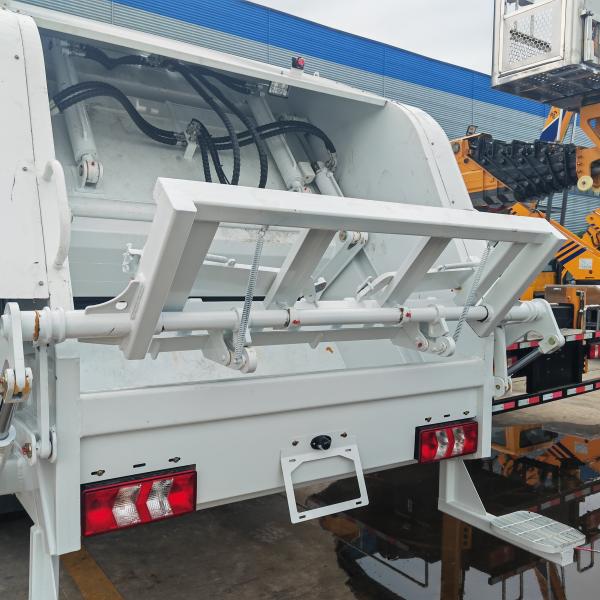

Loading Mechanism: It's a rear-loading compactor truck that can be equipped with a mechanism to handle different sizes of plastic garbage bins (e.g., 120L, 240L, 660L).

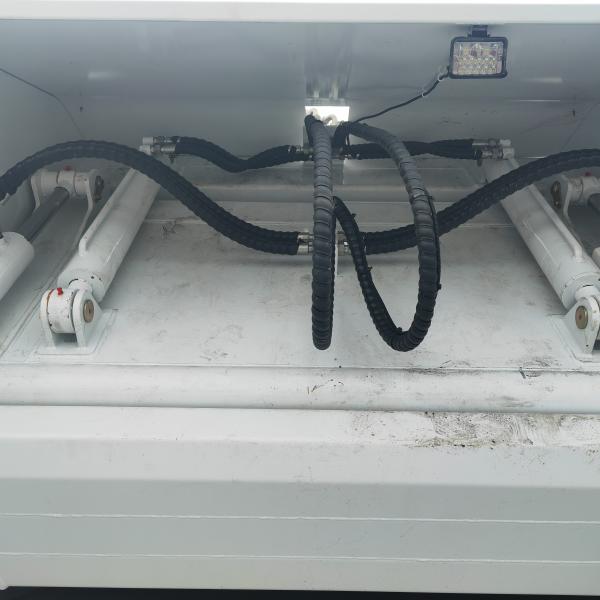

Hydraulic System: The compression and unloading are controlled by a high-pressure hydraulic system.
Control System: The truck features a PLC (Programmable Logic Controller) control system with control panels in the cab, at the rear, and on the side for easy operation.
Technical parameters For Shacman 8CBM Compactor Garbage Truck
General Descriptions Specifications and types
Production Year 2025
Truck Brand CLW BRAND
Chassis Brand Shacman
Color White
Approx. Dimension 7840x2430x3020 mm
GVW./Curb Wt. 14060/ 8200kg
Seat 2
Cab Cab Capacity 2 persons' seat
Air Conditioner Air Conditioner
Drive Type 4X2,left Hand Drive
Fuel Type Diesel
Engine Make & Model Cummins
Power 141hp
Emission Standard EURO 2
Wheelbase/No.of axle 3800mm / 2
Tyre Specfication 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Automative metallic paint
Truck body Truck capacity 8cbm
Tank material & structure Tensile Steel and Anti- Corrosion Treatment
Compression Strong compression ratio 1:2:5 with waste reaching more than 600-800Kg/cubic meter after compression
Associated Bins Can choose 120L/240L/660L garbage bins (plastic or steel) with turnover device, option to choose groundhopper, swing arm or other kinds of loading device
Operation With manual and automatic two-way control method. The operator can control from the cabin or from the back of the truck. Equipped with emergency stop button.
Wastewater Provision to drain the wastewater generated into a sewage tank in the process of compression for later disposal
Shacman X9 Compression Waste Collection Compactor Garbage Truck Shacman X9 Compression Waste Collection Compactor Garbage Truck
Shacman X9 Compression Waste Collection Compactor Garbage Truck
Shacman X9 Compression Waste Collection Compactor Garbage Truck
Shacman X9 Compression Waste Collection Compactor Garbage Truck
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Shacman X9 Compression Waste Collection Compactor Garbage Truck
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
