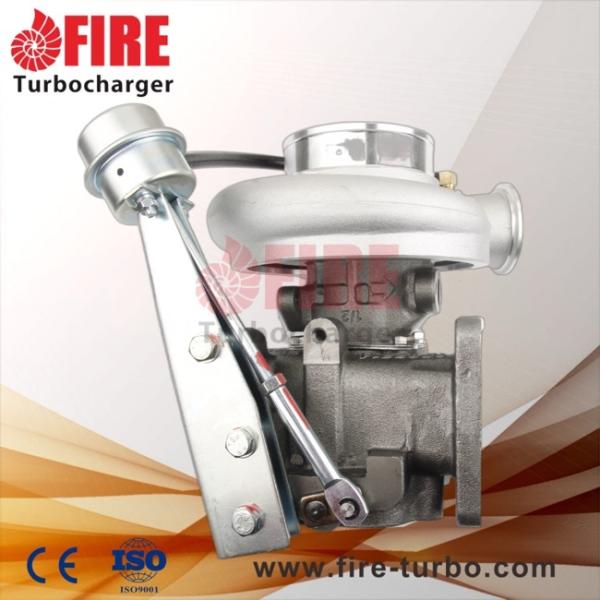

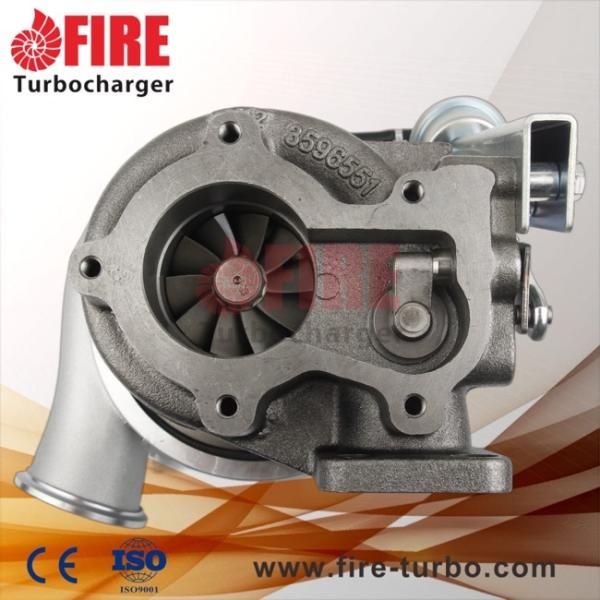

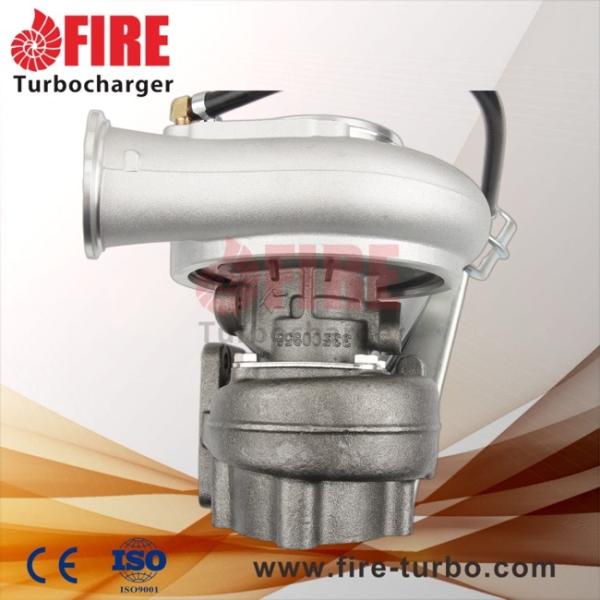

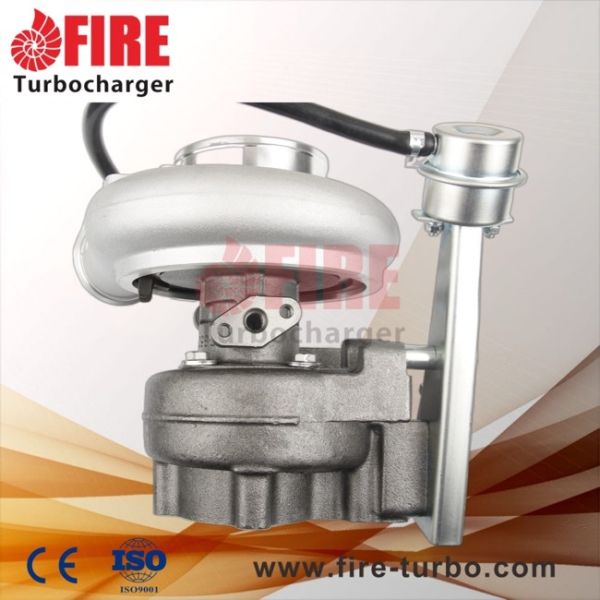

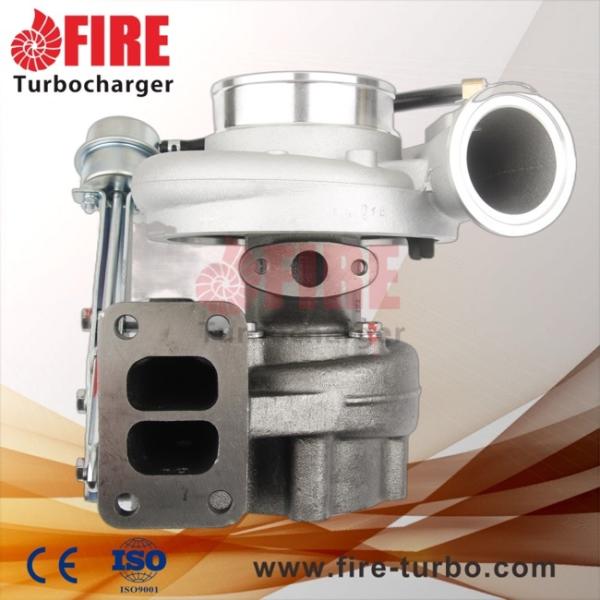

HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine
HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine
HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine
HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine
HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine
HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine
HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine
HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine
HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine
HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine
HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine
HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine
Specifications
Brand Name :
FIRE
Model Number :
HX35W
Certification :
CE, ISO
Place of Origin :
Fengcheng, China
MOQ :
10 Pieces
Price :
welcome to inquiry
Payment Terms :
T/T, Western Union
Supply Ability :
20000pcs per month
Delivery Time :
5-35 working days
Packaging Details :
Carton: 1. Fire Brand Packaging; 2. Neutral Packaging; 3. Customized Packaging (please contact our sales)
Turbo model :
HX35W
Part No. :
4041880
OE No. :
504082654
Cooling System :
Oil-cooled
Shaft Wheel Materials :
42CrMo
Turbine Wheel Blade Material :
K418
Compressor Wheel Materials :
ZL201
Bearing Housing Materials :
Ductile iron HT200
Description

2005-08 IV---CO Industrial Genset HX35W Turbocharger

Specifications:

Turbo model: HX35W
Part No.: 4041880
OE No.: 504082654
Shaft Wheel Material: 42CrMo
Turbine Wheel Blade Material: K418
Compressor Wheel Material: ZL201
Bearing House Material: Ductile iron HT200
Turbine House Material: Nodular Cast Iron
Cooling System: Oil-cooled
ENGINE: 2V TAA,6 Cylinders
Capacity: 6.7L
KW: 198
Year: 2005-08
G.W: 20KG
Size: CM
Packaging:

1. Fire Brand Packaging

2. Neutral Packaging

3. Customized Packaging

It can replace:

332-Z0335 332/Z0335 332Z0335 4033398
4037005 4033398H MEC530960 4037006

Applications: 2005-08 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine

Other models:

Turbo Model Part No. OE No. Engine Application
TA5126 454003-0008 500373230 8210.42.300-380-400 1999-IV---CO Truck 190E42,190E42 Euro tech
TB2509 466974-0010 99431083 8140.27.2700/2870 1988- IV---CO Daily
TBP408 465425-0001 98467056 8060.25V-TC,8060.25.4000/4700 Euro-1,8060.25.4000/4700 IV---CO Truck Euro cargo 150E18
4LGK 3523894 4804159 8215.22.545,8210.22.241,8210.22.279,8210 - 8210.22.373, 8210.22.000,8210.22 365,8210.22.101IC, 190.33/330.33,8210.22.101 1984-09 IV---CO,Unic,Fiat Truck
H1E 3526487 8109562 8361.SRI 1988-04 IV---CO Truck/Bus
H2A 3525447 8105857 8361SRI,8281SRI 10,8281SRI 25,8361.SRM/SRI 1988-04 IV---CO Marine Truck/Bus
H2D 3531669 98462933 8210.22.419 1991- IV---CO Truck,370E30 Bus
HE500WG 3779238 5801656963 IV---CO Hongyan Cursor13 Truck
HX25 4042568 P0203008 IV---CO Tractor Industrial Dozer

HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine

HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine

HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine

HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine

HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine

HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine

HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine

HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine

HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine

HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine

HX35W Turbocharger 4041880 504082654 IV---CO Industrial Genset with 2V TAA,6 Cylinders Engine

FAQ:

Q: How long is the delivery time?

A: The normal production time is 25-35 days. If item is in stock, it can be sent within 5-7 days.

Q: What is the MOQ?

A: Different models have different MOQ. Please contact the salesperson for details.

Q: What are the trade terms?

A: Our trade term is EX-Work. We are responsible for delivering the goods to the customer's designated warehouse within China (Except for Ports where fees are charged).

Q: What are your terms of payment?

A: 40% deposit in advance, 60% balance before delivery.

Q: What is the materials you used?

A: We use the best materials K418.

Q: How long is the warranty period?

A: The warranty period is one year.

Q: What is the package used?

A: We only offer the Fire brand package and neutral package; If customized box needed, you have to communicate with the salesperson for the quantity and cost.
