IP55 2800r/min 2.2KW Air Tightness Test Compressor JMQ100
IP55 2800r/min 2.2KW Air Tightness Test Compressor JMQ100
IP55 2800r/min 2.2KW Air Tightness Test Compressor JMQ100
IP55 2800r/min 2.2KW Air Tightness Test Compressor JMQ100
Specifications
Brand Name :
J & M
Model Number :
JMQ100
Certification :
CE, CCS
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, T/T, L/C
Delivery Time :
15-30 working days
Product Name :
JMQ100 Air tightness test high pressure compressor
Model :
JMQ100
Tank capacity L :
0.35
Working pressure Mpa :
20-30
Compressor stages :
Four stage compression
Drive :
220V Single phase motor
Lubricating oil model :
BS750（food grade special oil）
Air quality :
EN12021
Working medium :
air
Dimension :
640×490×805
Oil / water separation :
Final stage oil water separator
Final filter group :
Purification and filtration of activated carbon, molecular sieve and alumina
Power KW :
2.2KW
RPm r/min :
2800r/min
Net weight Kg :
53
Displacement L / min :
10
Control system :
PLC control (automatic blowdown, automatic shutdown, automatic pressure control)
Description

JMQ100 Air Tightness Test High Pressure Compressor

JMQ100 Air Tightness Test High Pressure Compressor Describe

JMQ100 German air tightness testing high-pressure compressor is an intelligent product, safe and reliable product.

The compressed air meets the EU EN12021 respiratory standard. It is mainly used in gas detection, pressure detection and other fields.

It can also provide clean, safe and reliable gas source for other industries.

It is composed of reliable and long service life components, with compact structure, simple maintenance, easy to use and pure outlet gas.

The air filling pump, as a kind of machine for increasing gas pressure or conveying gas, can directly compress the free air to the compressed air with gauge pressure of 225bar / 330bar.

After passing through the separator, filter and cooling in the unit, the oil and impurities contained in the high-pressure air are removed, and the clean and odorless gas pressure is discharged It is a reliable high-pressure gas supply device when it is retracted into a high-pressure gas cylinder or container.

JMQ100 Air Tightness Test High Pressure Compressor Parameter

Name JMQ100 Air tightness test high pressure compressor
Model JMQ100
Tank capacity L 0.35
Drive 220V Single phase motor
RPm r/min 2800
IP Protection level IP55
Power KW 2.2
Displacement L/min 10
Working medium Air
Working pressure Mpa 20-30
Compressor stages Four stage compression
Oil / water separation Final stage oil water separator
Lubricating oil model BS750(food grade special oil)
Noise dB ≤76
Size mm 640×490×805
Net weight Kg 53
Final filter group Purification and filtration of activated carbon, molecular sieve and alumina
Air quality Comply with European EN 12021 "international compressed air standard"
Control system PLC control (automatic blowdown, automatic shutdown, automatic pressure control)

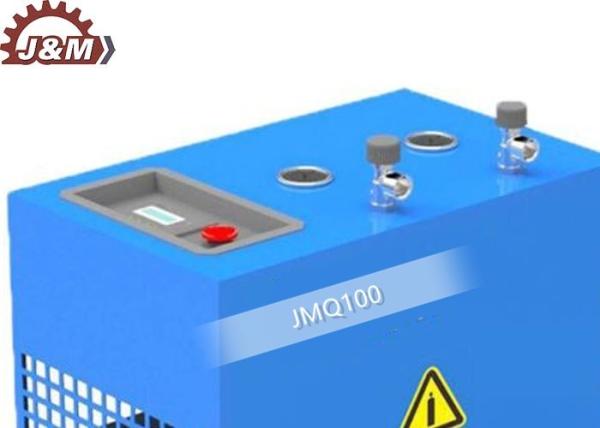

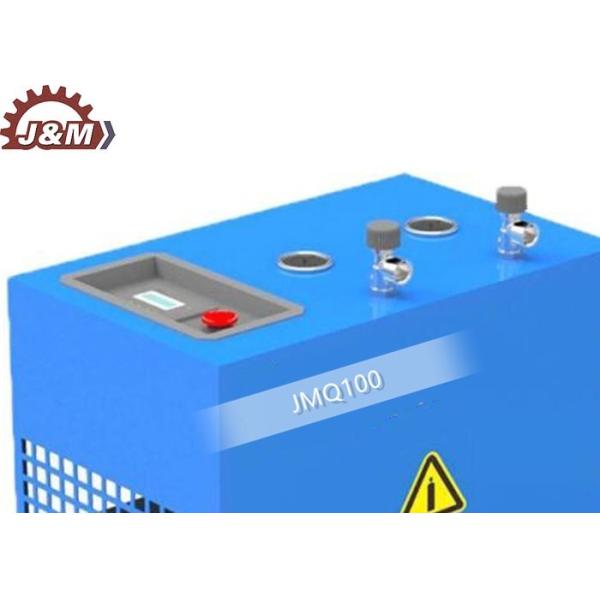

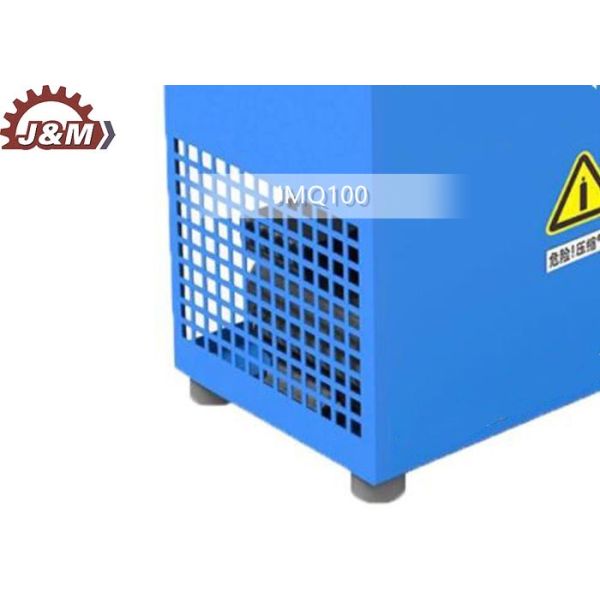

JMQ100 Air Tightness Test High Pressure Compressor Real picture

IP55 2800r/min 2.2KW Air Tightness Test Compressor JMQ100

IP55 2800r/min 2.2KW Air Tightness Test Compressor JMQ100

JMQ100 Air Tightness Test High Pressure Compressor Packaging & Delivery

Packaging Details
Plywood case
Port
Shanghai/Ningbo
Lead Time :
30~40 days after order confimation

IP55 2800r/min 2.2KW Air Tightness Test Compressor JMQ100
