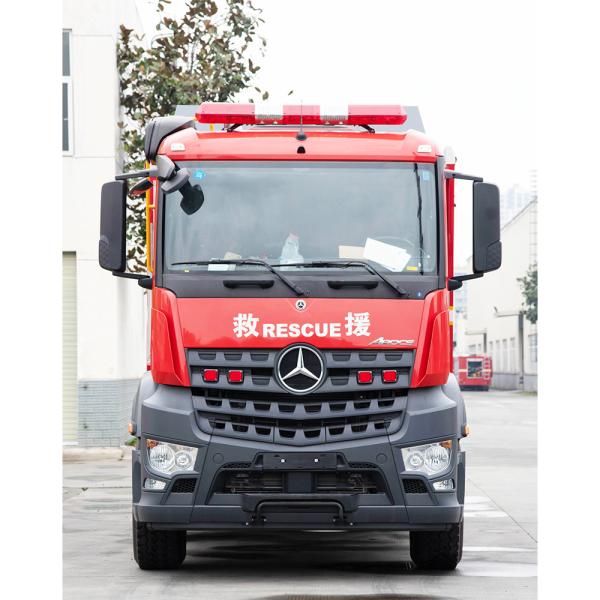

2000L Water Tank Mercedes-Benz 6*4 Positive and Negative Pressure Smoke Exhaust Fire Truck for Fire Emergency
2000L Water Tank Mercedes-Benz 6*4 Positive and Negative Pressure Smoke Exhaust Fire Truck for Fire Emergency
2000L Water Tank Mercedes-Benz 6*4 Positive and Negative Pressure Smoke Exhaust Fire Truck for Fire Emergency
2000L Water Tank Mercedes-Benz 6*4 Positive and Negative Pressure Smoke Exhaust Fire Truck for Fire Emergency
2000L Water Tank Mercedes-Benz 6*4 Positive and Negative Pressure Smoke Exhaust Fire Truck for Fire Emergency
2000L Water Tank Mercedes-Benz 6*4 Positive and Negative Pressure Smoke Exhaust Fire Truck for Fire Emergency
2000L Water Tank Mercedes-Benz 6*4 Positive and Negative Pressure Smoke Exhaust Fire Truck for Fire Emergency
2000L Water Tank Mercedes-Benz 6*4 Positive and Negative Pressure Smoke Exhaust Fire Truck for Fire Emergency
Specifications
Brand Name :
CXFIRE
Model Number :
SXF5212TXFPY140
Certification :
CCC, CE, EN, NFPA
Place of Origin :
China
MOQ :
1 Unit
Price :
USD300,000-USD350,000
Payment Terms :
T/T,L/C,D/A,D/P
Supply Ability :
1000 units per year
Delivery Time :
10 months
Packaging Details :
Standard Export Package and Delivery by Bulk Carrier or Ro-Ro Ship
Dimensions :
≤12000mm×2550mm×4000mm
Weight :
≤35000kg with Full Load
Chassis :
6*4 Mercedes-Benz
Rated Power :
426/1600(kW/rpm)
Crew Cabin :
Cabin with 2 Doors and 2 Seats
Superstructure :
Aluminum Alloy Welded Structure
Water Tank :
2000L Water Tank
Exhaust Max. Flow :
Positive pressure ≥450000m³/h, negative pressure ≥50000m³/h
Description

1. Company Introduction

CXFIRE, founded in the year of 1963, is the biggest fire fighting vehicles manufacturer in China. The annual output is 1000 units fire fighting trucks. The main factory is located in Chengdu of China with an area of 200,000 square meters and 600 employees.

2. Mercedes-Benz Smoke Exhaust Special Fire Fighting Truck

No. Main Items Technical Parameters
2.1 Model SXF5212TXFPY140
2.2 Overall Dimension

≤12000mm×2550mm×4000mm
2.3 Full Load Weight ≤35000kg
2.4 Number of the Crew 1+1
2.5 Max. Speed 95km/h
2.6 Capacity 2000L water
2.7 Exhaust Max. Flow Positive pressure ≥450000m³/h, negative pressure ≥50000m³/h
2.8 Water Pump 30L/s flow rate


3. Superstructure

3.1 Cabin

Structure: Single row cabin with 2 doors.

Seats: 1+1

3.2 Standardized Sub-frame

Material: High-strength rectangular tube made of special steel

Performance: The liquid tank and the sub-frame are connected by elastic connecting seats.

3.3 Compartment

Material: High-strength aluminum alloy profiles (Never Rust)

Structure: Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear.

3.4 Roller Shutter Door

Material: Aluminum alloy profiles with anodized surface.

Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.

3.5 Foot Pedals

Material: High quality aluminum alloy.

Structure: 50cm width, bear more than 150kg, anti-slip design, with double lock function. Mounted on the both sides of compartment.

3.6 Superstructure Electric Appliance

Warning Light and Siren: Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.

Strobe Light: Mounted on the both sides of the compartment.

External Lighting: LED lights are mounted on the both sides of the compartment.

Roof Lighting: LED lights are mounted on the inside of the roof.

Side Indicator Light: Inline yellow warning light is mounted on the side of the compartment and pedals.

4. Company Pictures for Reference
2000L Water Tank Mercedes-Benz 6*4 Positive and Negative Pressure Smoke Exhaust Fire Truck for Fire Emergency 2000L Water Tank Mercedes-Benz 6*4 Positive and Negative Pressure Smoke Exhaust Fire Truck for Fire Emergency 2000L Water Tank Mercedes-Benz 6*4 Positive and Negative Pressure Smoke Exhaust Fire Truck for Fire Emergency
