Specifications
Brand Name :
YUHONG
Model Number :
ASTM A213 , ASME SA213 , ASTM A376, ASME SA376, TP347, TP347H
Certification :
ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Place of Origin :
China,Korea
MOQ :
1PC
Price :
1--10000 USD
Payment Terms :
L/C,T/T
Supply Ability :
10000 tons/month
Delivery Time :
5---75 days
Packaging Details :
Bundle + Cap , Ply wooden case
Material Grade :
TP347, TP347H, 1.4550, 1.4551
Material Standard :
ASTM A213, ASME SA213, JIS G3459, EN10216-5, GOST 9941-81, ASTM A376 , ASME SA376
NDT :
ET, UT, HT, PT, PMI
Size OD :
31.75 ~ 165.2mm
Size Thickness :
2~20mm
Size Length :
Max.: 34m/pc
Description

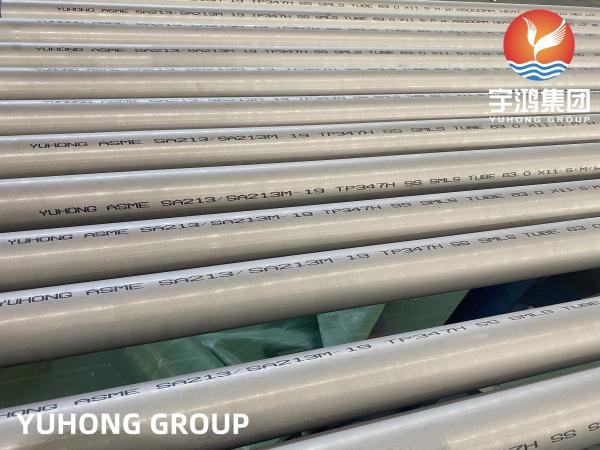

Stainless Steel Boiler Tube, ASME SA213 TP347H, Power Plant Boiler Application
Product Specifications
Attribute Value
Material Grade TP347, TP347H, 1.4550, 1.4551
Material Standard ASTM A213, ASME SA213, JIS G3459, EN10216-5, GOST 9941-81, ASTM A376, ASME SA376
NDT ET, UT, HT, PT, PMI
Size OD 31.75 ~ 165.2mm
Size Thickness 2~20mm
Size Length Max.: 34m/pc
Product Description

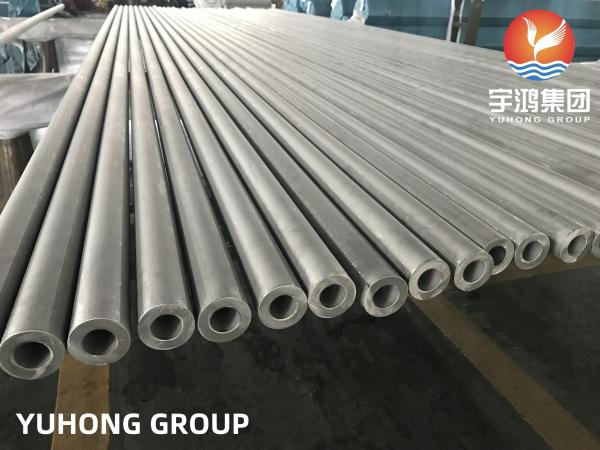

Yuhong Group's ASME SA213 TP347H grade stainless steel boiler tubes are specifically designed for power plant applications. These tubes undergo stabilization heat treatment with furnace temperature controlled at approximately 950℃ for 2-4 hours during the final heat treatment process.

Technical Specifications
  • Outer Diameter: 31.75mm to 165.2mm
  • Wall Thickness: 2mm to 20mm
  • Length: Maximum 34m per piece
  • All tubes meet grain size requirements of ASTM E112 (Grain Size <7)
  • 100% Eddy Current Test (ASTM E426)
  • 100% Hydrostatic Test (ASTM A1016 - 7Mpa/5s)
Quality Tests

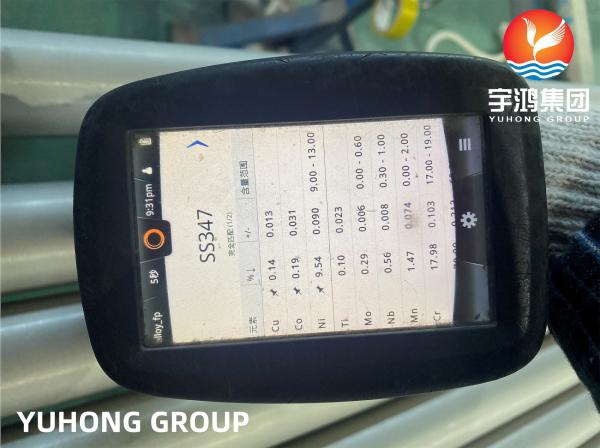

  • Chemical Analysis
  • Mechanical Properties Testing
    • Tensile Requirement
    • Hardness Requirement
    • Flattening Test
    • Flaring Test
  • Hydrostatic Test or Nondestructive Electric Test
Chemical Composition
Grade C Mn Si P S Cr Mo Ni Niobium Other
TP347 min: -
max: 0.08		 min: 2.0
max: -		 min: 1.0
max: -		 min: 0.045
max: -		 min: 0.03
max: -		 min: 17
max: 19		 - min: 9
max: 13		 10*C ~1.10 /
TP347H min: 0.04
max: 0.1		 min: 2.0
max: -		 min: 1.0
max: -		 min: 0.045
max: -		 min: 0.03
max: -		 min: 17
max: 19		 - min: 9
max: 13		 8*C ~1.10 /
Mechanical Properties
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
TP347 515 205 35 Rockwell B (HRB) max: 90
Brinell (HBW) max: 192
TP347H 515 205 35 Rockwell B (HRB) max: 90
Brinell (HBW) max: 192

TP347H has an additional requirement for a grain size of ASTM No 7 or coarser.

Applications
  • Food preparation equipment
  • Laboratory benches & equipment
  • Coastal architectural panelling, railings & trim
  • Power Plant Boiler
  • Chemical containers, including for transport
  • Heat Exchanger
  • Oil and Gas
  • Petrochemical
  • Super Heater parts
  • Furnace
