UNS C71500 Copper Nickel Alloy 70/30 Enhanced Heat Transfer Condenser Tube
UNS C71500 Copper Nickel Alloy 70/30 Enhanced Heat Transfer Condenser Tube
UNS C71500 Copper Nickel Alloy 70/30 Enhanced Heat Transfer Condenser Tube
UNS C71500 Copper Nickel Alloy 70/30 Enhanced Heat Transfer Condenser Tube
UNS C71500 Copper Nickel Alloy 70/30 Enhanced Heat Transfer Condenser Tube
UNS C71500 Copper Nickel Alloy 70/30 Enhanced Heat Transfer Condenser Tube
UNS C71500 Copper Nickel Alloy 70/30 Enhanced Heat Transfer Condenser Tube
UNS C71500 Copper Nickel Alloy 70/30 Enhanced Heat Transfer Condenser Tube
Specifications
Brand Name :
YUHONG
Model Number :
CuNi 70/30
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 45 Days
Packaging Details :
Ply-Wooden Case
Base Tube Material :
C71500
Base Tube Standard :
ASTM B111, ASME SB111
Application :
Heat Exchanger, Condenser
NDT :
ET, HT, UT
Description

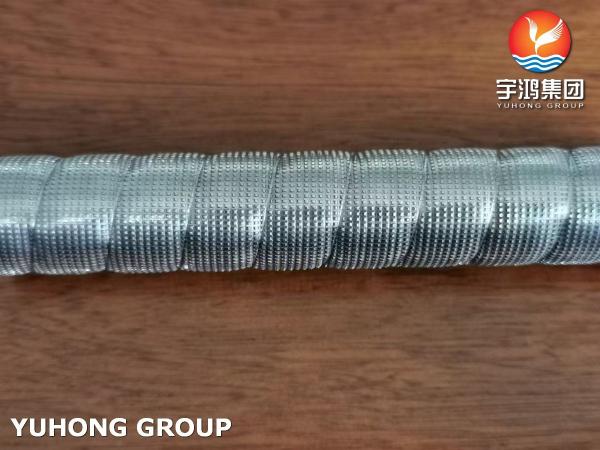

UNS C71500 Copper Nickel Alloy 70/30 Enhanced Heat Transfer, Condenser Tube

YUHONG GROUP focus on the production of products in the field of thermal energy conversion, covering heat exchange tubes, condenser tubes, evaporation tubes and other high-efficiency energy-saving tubes. UNS C71500 Copper Alloy tube is a kind of typical tube which used in heat exchangers & condensers. The highly resistant to corrosion make it suitable for seawater systems.

Properties of Cu–Ni alloys:

UNS No. Common name European spec Ni Fe Mn Cu Density
g/cm3		 Melting point
deg C		 Spec heat
J/(kg·K)		 Thermal conductivity
W/(m·K)		 Yield strength
MPa		 Tensile strength
MPa
C70600 90–10 Cu90Ni10 9–11 1–1.8 1 Balance 8.9 1100-1145 377 40 105 275
C71500 70–30 Cu70Ni30 29–33 0.4–1.0 1 Balance 8.95 1170-1240 377 29 125 360
C71640 66–30–2–2 Cu66Ni30Fe2Mn2 29–32 1.7–2.3 1.5–2.5 Balance 8.86 25 170 435

Key Features:

The C71500 Copper-Nickel alloy, also known as Cupronickel 70/30 (Cu70Ni30), is a high-strength, corrosion-resistant alloy composed primarily of copper (Cu) and nickel (Ni). The alloy typically consists of 70% copper and 30% nickel, with small additions of iron and manganese to enhance its mechanical properties and corrosion resistance, especially in marine and seawater environments.

Applications:

  • Marine Applications: Seawater Piping Systems, Water Intakes and Outfalls.
  • Power Generation: Cooling Systems, Condenser Tubes.

UNS C71500 Copper Nickel Alloy 70/30 Enhanced Heat Transfer Condenser Tube
