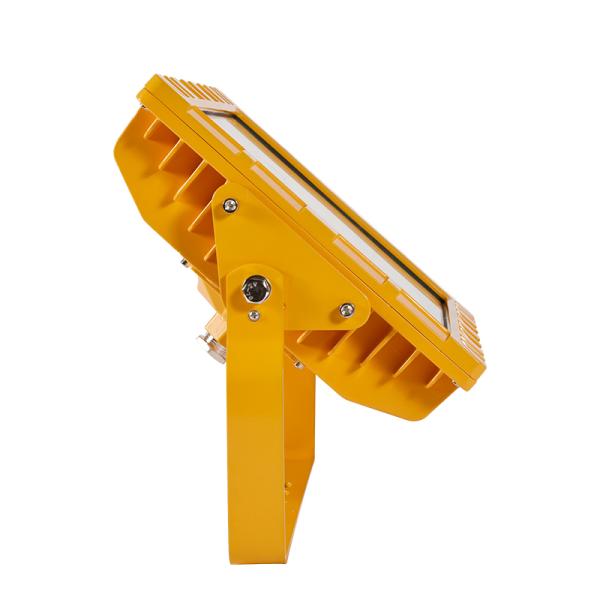

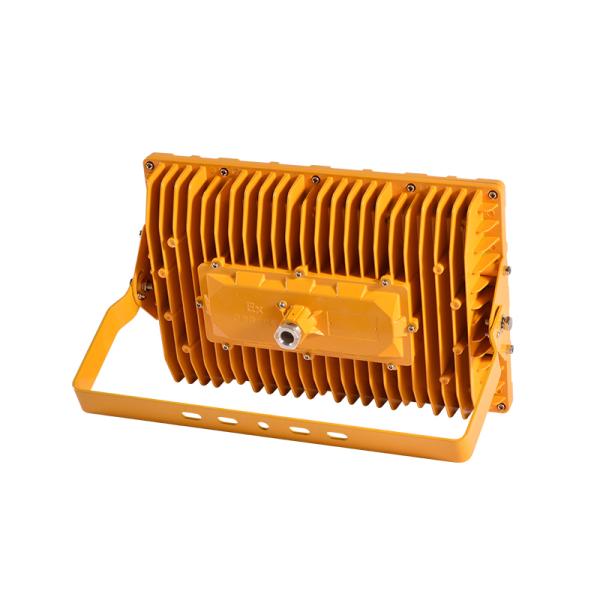

High Grade Hazardous Area Lighting Ip65 Waterproof Explosion Proof Lamp 50w 100w 150w 200w
High Grade Hazardous Area Lighting Ip65 Waterproof Explosion Proof Lamp 50w 100w 150w 200w
High Grade Hazardous Area Lighting Ip65 Waterproof Explosion Proof Lamp 50w 100w 150w 200w
High Grade Hazardous Area Lighting Ip65 Waterproof Explosion Proof Lamp 50w 100w 150w 200w
Specifications
Brand Name :
Finboard
Model Number :
RFEPL97
Certification :
CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI
Place of Origin :
Chinese Mainland
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
10-15 days or confirm
Packaging Details :
Box package+ bubble or as customized
Keywords :
IIndustrial LED Explosion Proof Lighting Fixtures
Power :
50W 100W 150W 200W
Driver :
AC100-265V
Protection Level :
IP66
Color Temperature :
5500-6500K
Usage :
Hazardous Places
Description

High Grade Hazardous Area Lighting Ip65 Waterproof Explosion Proof Lamp 50w 100w 150w 200w

Characteristics
Optical Performance:
High-efficiency SMD2835/3030 LEDs delivering 100-110 lm/W
5500-6500K cool white light with ≥80 CRI
Optimized optical design for 120° beam angle
Electrical Features:
Wide voltage input (100-265V AC)
<0.5% total harmonic distortion
Power factor >0.95
Surge protection up to 4kV
Robust Safety Features
IP65-rated waterproof/dustproof construction
Explosion-proof certification for Zone 1/2 hazardous areas
Corrosion-resistant surface treatment
Impact-resistant tempered glass (IK08 rating)
Spark-free operation design
Thermal Management System
Advanced cooling fins design (30% more surface area)
Temperature-controlled driver compartment
Automatic power regulation at high temperatures
Maintains LED junction temperature below 85°C

Specifications

Model RF-97II Series
Power Options 50W / 100W / 150W / 200W / 240W / 300W
Material Aluminum Alloy + Tempered Glass
Dimensions (mm) 250×170×132 (50W) to 460×310×150 (300W)
Voltage AC 100-265V (Auto-Sensing)
Light Source High-Efficiency SMD2835/3030 LEDs
IP Rating IP66 (Dustproof & Waterproof)
CRI ≥Ra80
Color Temp. 5500-6500K (Cool White)
Light Efficacy 100-110 lm/W
Certifications ATEX, IECEx, CE, RoHS (Customizable)

Introduction
Industrial LED explosion-proof lighting fixtures are essential for hazardous environments where safety, durability, and high-performance illumination are critical. Our RF-97II Series offers a range of 50W, 100W, 150W, 200W, 240W, and 300W models, designed for Zone 1/2 (gas) and Zone 21/22 (dust) applications. With an IP66 rating, robust construction, and energy-efficient LED technology, these fixtures ensure reliable operation in extreme conditions such as mining, oil refineries, chemical plants, and gas stations.
