Led Floodlight Up To AC100-270V Outdoor Led Module Aluminum
Led Floodlight Up To AC100-270V Outdoor Led Module Aluminum
Specifications
Brand Name :
Fins board, BOCAQ
Certification :
CE,ROHS,FCC,PSE,CCC,UL,ISO9001,BSCI
Place of Origin :
Chinese Mainland
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs/month
Delivery Time :
25-30days or confirm
Packaging Details :
Box package+ bubble or as customized
Name :
Outdoor led area light
Keywords :
Outdoor area light fixtures
Keypoint :
Industrial flood lights outdoor
Input voltage :
AC100-270V
Material :
Aluminum+ clear pc
Usage :
Outside Area Basketball Court
Description

Led Floodlight Up To AC100-270V Outdoor Led Module Aluminum

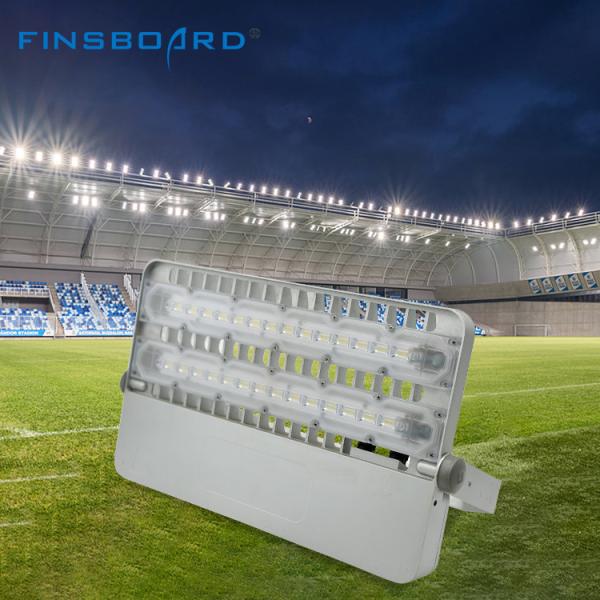

The Fins Board LED lighting fixture (Model RFFL-14) is a robust and efficient lighting solution designed for demanding outdoor and large indoor applications such as basketball courts, stadiums, sports arenas, and gas stations. It is available in two power configurations: 110W and 220W, with corresponding dimensions of 46028560mm and 46043060mm, respectively.
Construction and Materials:
The fixture's housing is constructed from die-cast aluminum, providing excellent heat dissipation and structural integrity. This ensures the longevity and reliable performance of the LED components. The lens is made of PC (polycarbonate), a durable and impact-resistant material that protects the light source from environmental factors. The combination of die-cast aluminum and PC contributes to the fixture's overall durability and suitability for outdoor use.
Electrical and Optical Specifications:
The Fins Board utilizes a high-performance SMD 3030 LED light source, known for its efficiency and long lifespan. The fixture operates with a wide voltage input range of 100-277V, making it compatible with various electrical systems. A dedicated driver ensures stable and consistent power delivery to the LEDs. The color temperature is adjustable within the range of 3000-6500K, allowing for customization of the lighting ambiance. The beam angle is fixed at 45°x60°, providing focused and directional illumination. The lamp luminous efficiency ranges from 120-130 lm/W, indicating a high level of energy conversion and brightness.

Advantages

1. LED high brightness chip
SMD3030 Lamp bead, long service life, safe and reliable

2. IP66 waterproof
Not afraid of wind and sun, meeting the needs of outdoor use

3. Fin radiator
High-purity aluminum fin radiator, customizable 3/5-year warranty configuration

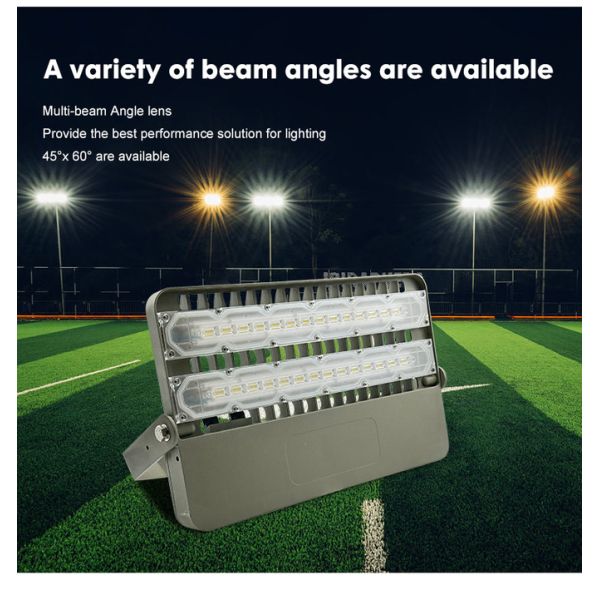

4. Various beam angles available
Multi-beam angle lens, providing the best lighting performance solution, 45° x 60° available

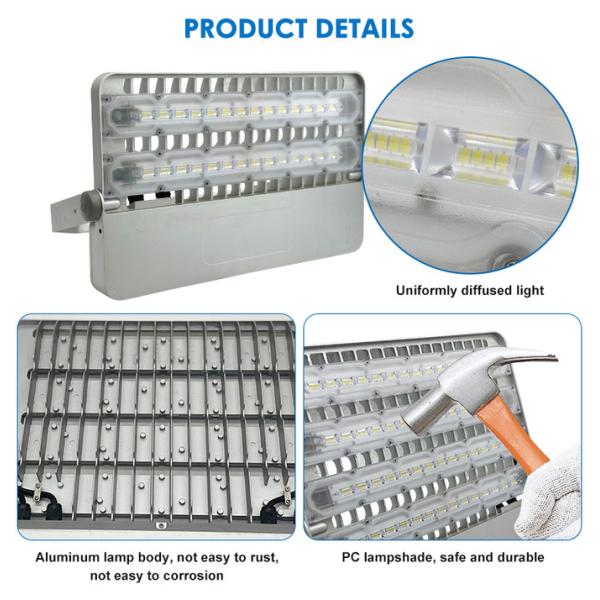

5. High quality material
Aluminum lamp body, not easy to rust, PC lampshade, safe and durable, not easy to corrode

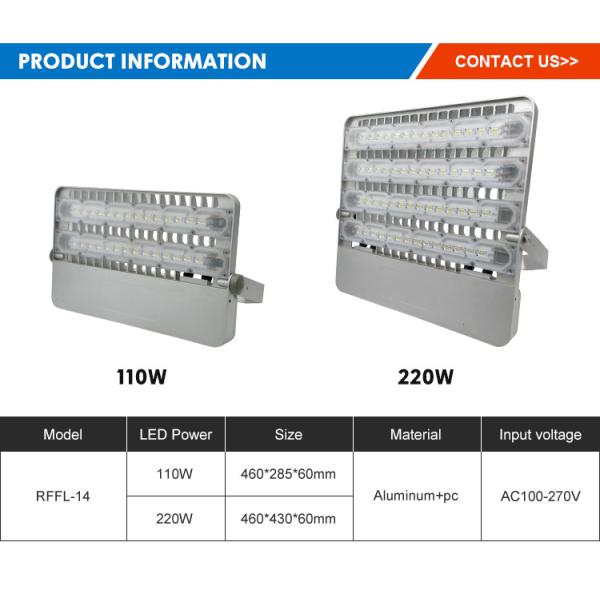

Brand Name Fins Board
Model RFFL-14
Power 110W 220W
Size(mm) 460*285*60mm 460*430*60mm
Material Die cast aluminum+PC
Driver 100-277V
Light Source SMD 3030
IP Rating IP66
Color
Temperature		 3000-6500K
Beam Angle 45°x60°

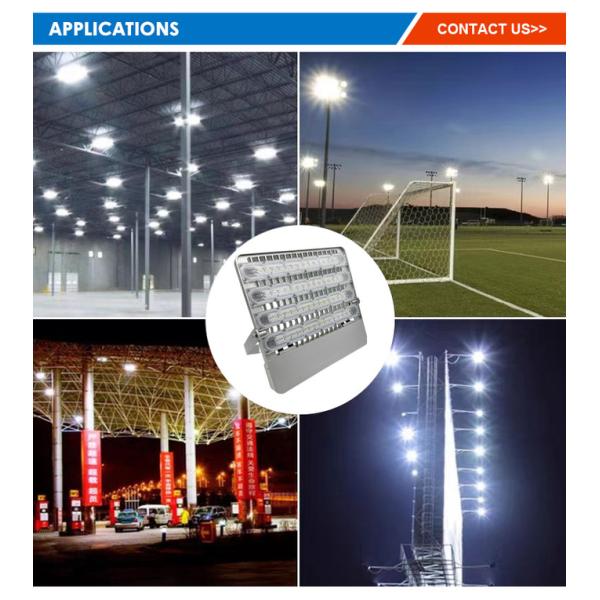

Application Basketball/Court Stadium/Sports Stadiums/ Gas Station,etc
Lamp Luminous Efficiency(lm/w) 120-130Im/w
Lighting solutions service Lighting and circuitry design,LitePro DLX layout
Project Installation
Working Time (hours) 50000
Lifespan (hours) 50000
