Specifications
Model Number :
SMSF50-B
Place of Origin :
Chinese Mainland
Brand Name :
Fins board, BOCAQ
Certification :
CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Box package+ bubble or as customized
Delivery Time :
25-30days or confirm
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs/month
Keywords :
LED railway platform lighting
Power Factor :
≥0.95
Luminous Flux :
3900-7800lm
Protection Level :
IP65
Color Temperature :
2700-6500K
Color Rendering Index :
80Ra
Working Life :
≥50000H
Executive standards :
GB7000,GB 24906,GB/T 24907 etc.
Description
Energy Saving Flameproof Light Fittings Hazardous Light ODM
Product Structure & Performance
  • High-strength aluminum alloy die-cast housing with high-voltage electrostatic powder coating for superior corrosion resistance
  • Premium LED light source with high luminous efficiency, excellent color rendering, compact design, low energy consumption, flicker-free operation, long service life, and maintenance-free operation
  • Scientific light distribution design with 380° full-range illumination, uniform lighting distribution, and glare-free soft light to prevent operator eye strain
  • Independent light source chamber design with optimal heat dissipation to extend LED lifespan
  • Integrated construction for easy installation and maintenance with simplified wiring
  • Modular design for light source components, reflectors, and power modules for easy replacement and reduced maintenance costs
  • Advanced sealing structure with specialized sealing strips and embedded methods for excellent waterproof and dustproof performance in harsh environments
  • Sleek appearance with ceiling and suspended mounting options for versatile installation
Application Scope
Ideal for flood lighting applications in railways, power plants, metallurgy, petroleum, petrochemical industries, factories, workshops, stations, large facilities, and venues. Features include glare-free operation, no ghosting, shock resistance, corrosion resistance, energy efficiency, and reliable safety performance.
Ordering Information
  • Select products according to model specifications when ordering
  • Lights are factory-equipped with power supply and light source
  • Available with various mounting configurations
  • Rated voltage: AC220/50Hz - use only at specified voltage
  • Standard color temperature: 5500K-6500K
  • Specify any custom requirements for items 3, 4, and 5 during ordering
Technical Specifications
Product Number SMSF50-B
Executive Standards GB7000, GB 24906, GB/T 24907, GB/T 24908
Electromagnetic Compatibility EN61000-3-2, TUV EN61347-1, EN61347-2-13
Rated Power 30-60W
Degree of Protection IP65
Anti-Corrosion Grade WF2
Inlet Thread G3/4"
Incoming Cable φ7-12mm
Operating Temperature -40°C to 45°C
Operating Humidity 10%-90%
Power Factor ≥0.95
Power Efficiency ≥0.88
Dimensions φ225*195mm
Net Weight 1.41kg
Color Temperature Options Warm White (WW) 2700-3200K
Natural White (NW) 4000-4500K
Positive White (PW) 6000-6500K
Color Rendering Index 80Ra
Luminous Flux 3900-7800lm
Life Span ≥50,000 hours

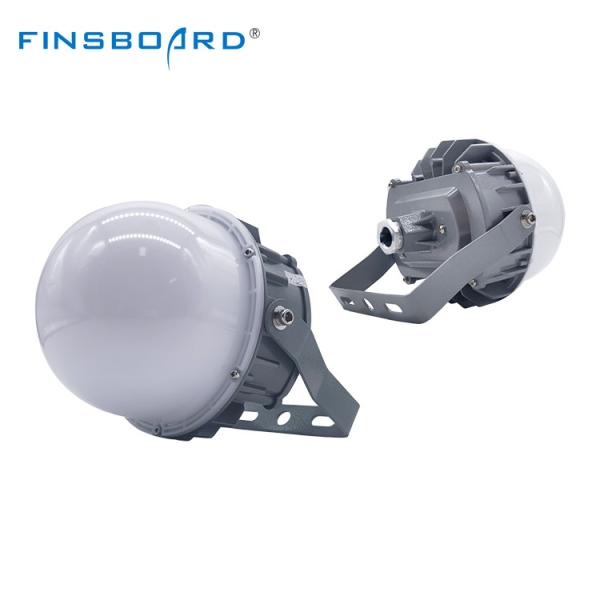

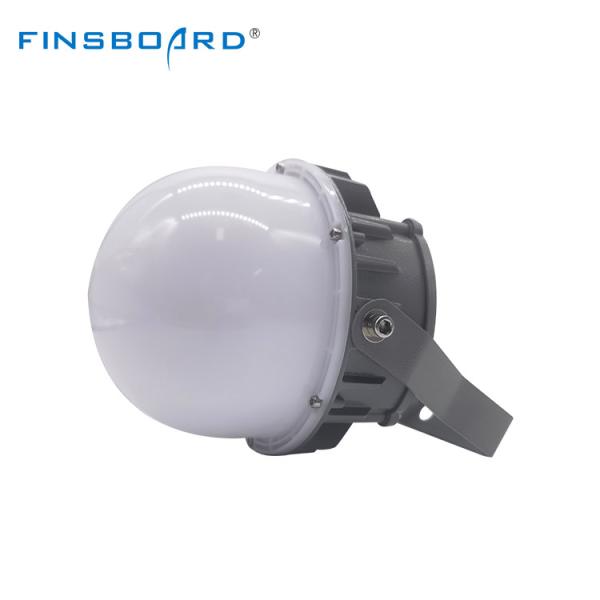

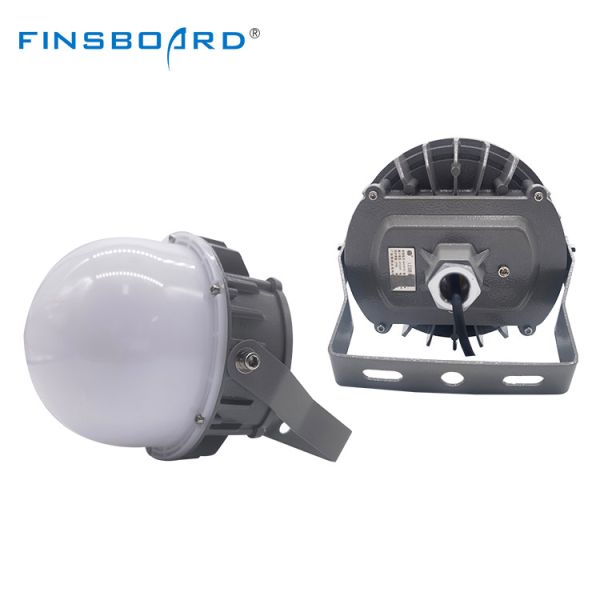

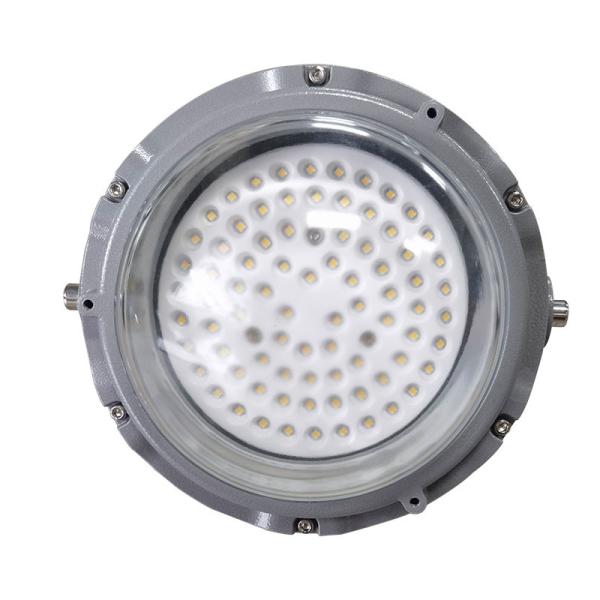

Product Images
Energy Saving IP65 Protection LED Explosion Proof Lighting with 50000H Life Span for Hazardous Areas Energy Saving IP65 Protection LED Explosion Proof Lighting with 50000H Life Span for Hazardous Areas Energy Saving IP65 Protection LED Explosion Proof Lighting with 50000H Life Span for Hazardous Areas Energy Saving IP65 Protection LED Explosion Proof Lighting with 50000H Life Span for Hazardous Areas Energy Saving IP65 Protection LED Explosion Proof Lighting with 50000H Life Span for Hazardous Areas Energy Saving IP65 Protection LED Explosion Proof Lighting with 50000H Life Span for Hazardous Areas Energy Saving IP65 Protection LED Explosion Proof Lighting with 50000H Life Span for Hazardous Areas Energy Saving IP65 Protection LED Explosion Proof Lighting with 50000H Life Span for Hazardous Areas
