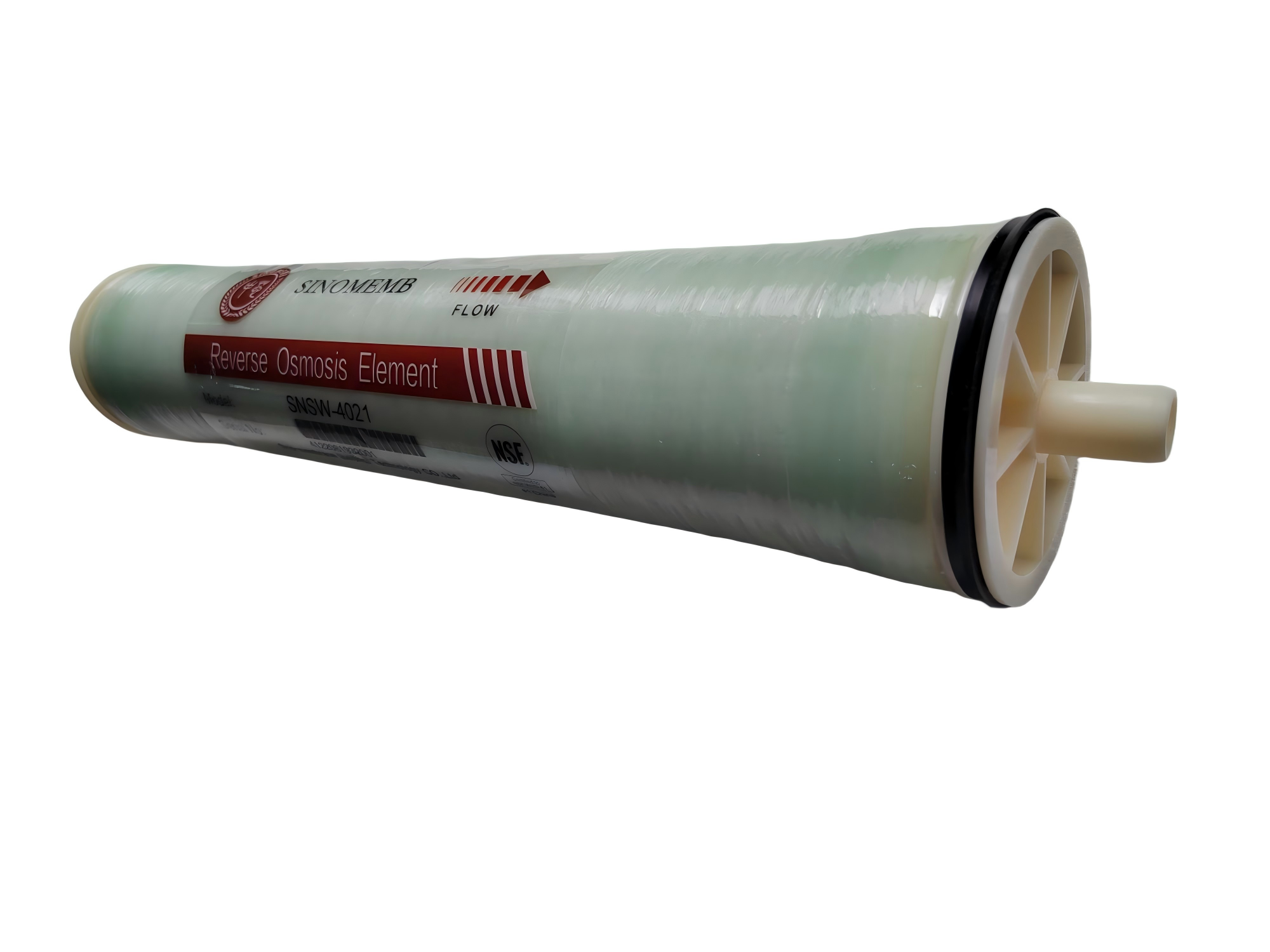

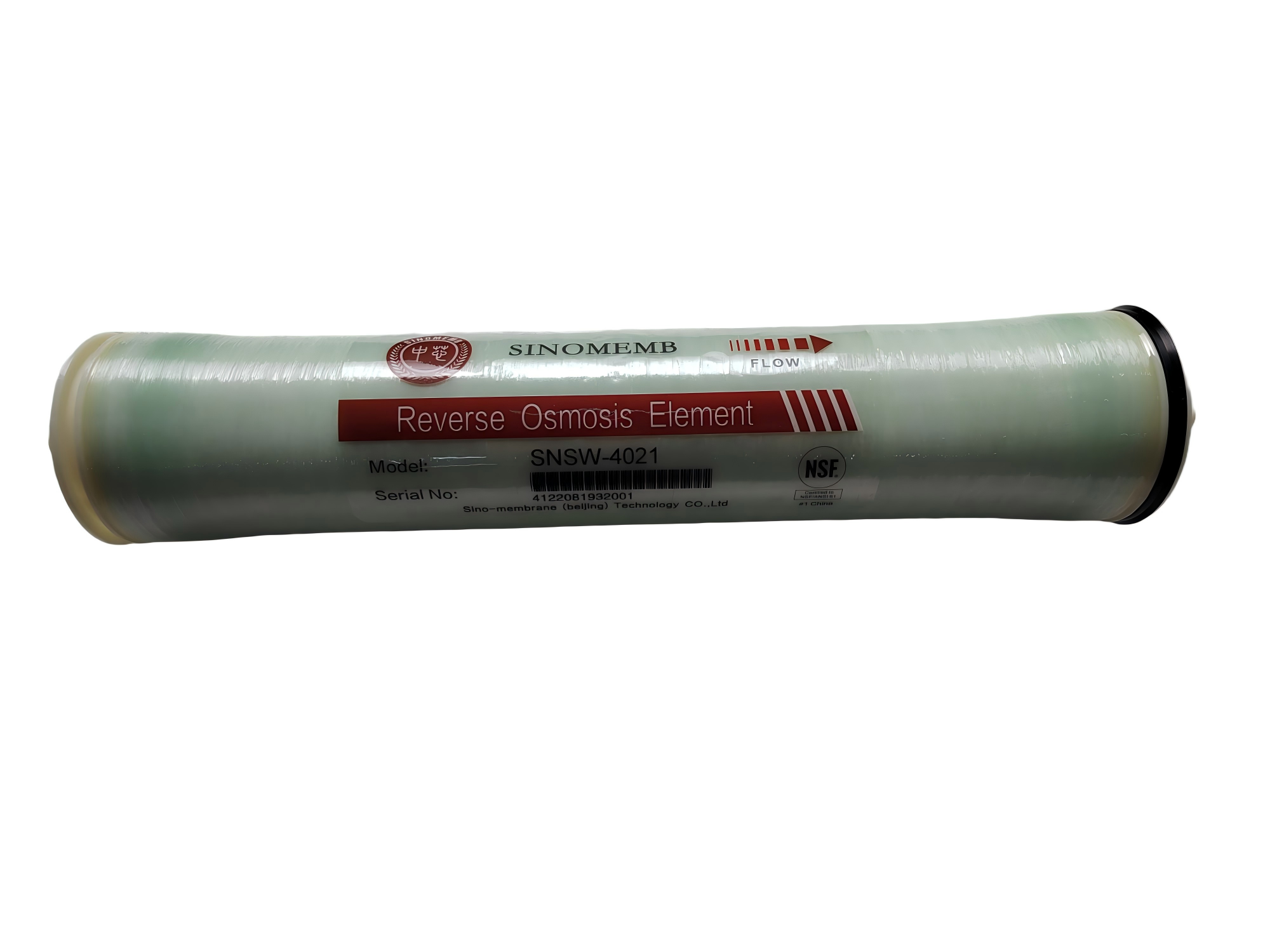

SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane
SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane
SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane
SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane
SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane
SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane
Specifications
Brand Name :
SINOMEMB
Model Number :
SNSW-4021
Certification :
NSF
Place of Origin :
China
MOQ :
1
Price :
CN¥3,637.70/pieces >=1 pieces
Supply Ability :
1500000 Piece/Pieces per Month
Packaging Details :
Standard export packaging
core components :
RO Sheet
warranty :
1 Year
productivity :
500GPD
weight (kg) :
2.5 kg
Product name :
Seawater desalination reverse osmosis membrane
Application :
Water Purification
Usage :
desalination
Salt rejection % :
99.4
Working pressare psi :
800Mpa
Size :
580*120*120
Description

SNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO MembraneSNSW Series Seawater RO Membrane 580x120x120mm 500 GPD RO Membrane

Product Paramenters
Model
A/mm(inch)
B/mm(inch)
C/mm(inch)
D/mm(inch)
E/mm(inch)
4021
533.4(21)
101.6(4.0)
19.1(0.75)
26.7(1.05)
480(18.9)
Model
A/mm(inch)
B/mm(inch)
C/mm(inch)
8040
1016(40)
203.2(8.0)
29.1(1.15)
Model
SW-4021
Effective membrane area ft2(m2)
33(3.1)
Average yield GPD(m3/d)
750(2.8)
Salt rejection(%)
99.5
Recovery rate(%)
4
Operating pressure psi(Mpa)
800(5.5)
Max.operating pressure psi(Mpa)
1200(8.2)
Max.inflow temperature(℃)
45
Max.inflow SDI
5
Free chlorine concentration
<0.1
Continuous running water pH range
3-10
Chemical cleaning water pH range
2-11
Max.single membrane element pressure drop psi(Mpa)
15(0.1)
Details Images

8.3Test condition

Test pressure.................................................................................800psi (5.5Mpa)

Test liquid temperature..................................................................25℃

ppm................................................................................................32000ppm(NaCl),5ppm(Boron)

Test liquid PH value.......................................................................8

Recovery rate of single memb...............................2%(2514),8%(2540,4040,8040),4%(2521,4021)

8.4 Absolute Maximum Ratings

Max operating pressure of 8 inches and 4 inches......................1200psi(8.3Mpa)

Max operating pressure of 2.5-inch and other models..............1000psi(6.9Mpa)

Max feed flow of 8 inch memb...............................................75gpm(17 m3/h)

Maximum feed flow of 4 inches.............................................16gpm(3.6 m3/h)

Maximum feed flow of 2.5 inches..........................................6gpm(1.4 m3/h)

Max feed temperature.................................................................45℃

Max feed continuous operation temperature When PH > 10......35℃

Max feed SDI15..........................................................................5

Influent free chlorine concentration........................................＜0.1ppm

PH range of feed water during continuous operation.................2～11

PH range of inflow during chemical cleaning(30 Min)........1～13

Max pressure drop of single memb............................15psi(0.1Mpa) (2540,2514,4021,4040,2521,8040)

............................................13psi(0.09Mpa) (8040HF)
