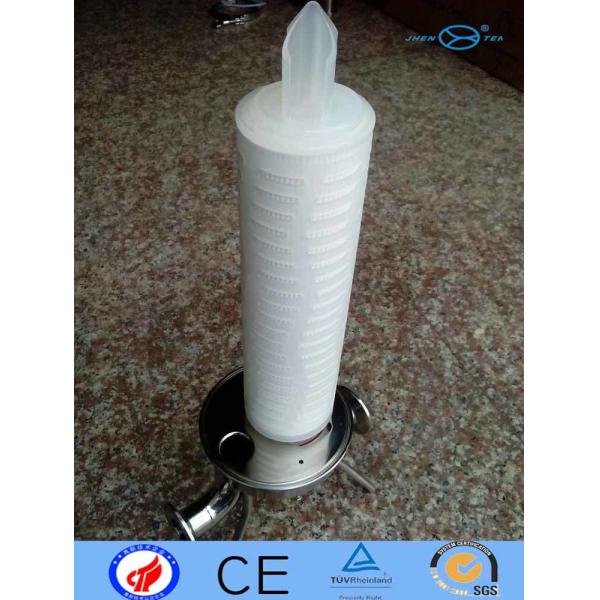

PP Filter Cartridge N6 PTFE With Deep Filtration / Large Filtration Area
PP Filter Cartridge N6 PTFE With Deep Filtration / Large Filtration Area
Specifications
Brand Name :
JHENTEN
Model Number :
JTRPJ
Certification :
CE ，ISO9001,ASME
Place of Origin :
CHINA
MOQ :
1 PC
Price :
Can negotiate
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500set/month
Delivery Time :
30DAYS
Packaging Details :
plywood packing or according to customer requirements
Species :
PP, Pes, PTFE, Nylon, Activated Carbon, Ect
Certificates :
CE, SGS, ISO9001
Description

Materials of Construction
Cartridges membrane is folded with PVDF membrane and diverting layers. Cartridges cover, housing and central pole are all made of PP. All parts are sealed by hot welding technology without any chemical infectant.

Features and Benefits
1. It is hydrophobic membrane with small adsorptance
2. Possessing better performance of oxidation resistance and heat-resistance and is extensively applicable
3. After being soaked with 30% alcohol, it can be used for liquid filter, It can continuously work at high temperature (90C)
4. Experiencing 100% integrity test before ex-factory

Technical Parameter
1. Filter ratings: 0.1μ M.22μ M.45μ M.6μ M.8μ M1μ M
2. Applicable pH value: 1-133.
Maximum pressure difference against which it can resist (25C)
4. Positive direction: 0.42Mpa
5. Reverse direction: 0.21 Mpa
6. Working temperature:
A: Common type < 70C, (pressure difference: 0.25Mpa ) b: High temperature type < 90, (pressure difference: 0.25Mpa)
7. Steam sterilizing at 125C, 0.5h each time.

Applicable fields
1. Medicine industry: Filter of drug liquid, gases etc
2. Filtration of gas with high and low temperature and steam.
3. Chemical industry: Filter of organic solvent etc. 4. Petroleum industry: Filter for oil-field flooding.
