20x4.5 Big Blue PP Yarn Spun Polypropylene Sediment 5 Micron Water Filter Ro Pp Filter
20x4.5 Big Blue PP Yarn Spun Polypropylene Sediment 5 Micron Water Filter Ro Pp Filter
20x4.5 Big Blue PP Yarn Spun Polypropylene Sediment 5 Micron Water Filter Ro Pp Filter
20x4.5 Big Blue PP Yarn Spun Polypropylene Sediment 5 Micron Water Filter Ro Pp Filter
20x4.5 Big Blue PP Yarn Spun Polypropylene Sediment 5 Micron Water Filter Ro Pp Filter
20x4.5 Big Blue PP Yarn Spun Polypropylene Sediment 5 Micron Water Filter Ro Pp Filter
Specifications
Condition :
New
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Energy & Mining, Advertising Company, water filtration
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
Pressure vessel, PLC
Place of Origin :
Hebei, China
Brand Name :
hydwell
Material :
PP, UPVC
Weight :
Standard
Size :
customize
Warranty :
1 Year
Productivity :
500L/Hour
Product name :
Water Treatment System Processing Reverse Osmosis Plant
Application :
Water Purification
Type :
Water Filter Parts
Usage :
Liquid Filter
Color :
White
Certification :
ISO9001 CE
MOQ :
100
Technology :
Sintering
Brand :
Hydwell
After Warranty Service :
Video technical support, Online support
Local Service Location :
None
After-sales Service Provided :
Video technical support, Online support
Packaging Details :
plastic bag+ paper box
Port :
tianjin
Supply Ability :
10000 Piece/Pieces per Day
MOQ :
10 pieces
Price :
$1.00 - $19.80/pieces
Description
20
20

distribute filter cartridge for industrial water treatment
20
Specifications
Materials Of Construction
Filter Media:
Polypropylene
Support Layers:
Polypropylene
Micron Rating:
0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0um
Inner core:
Polypropylene
Outer Cage, End caps:
Polypropylene
Seal Method:
Thermal Bonded, No Adhesives
O-rings/gaskets:
Silicone, Nitrile, EPDM, Viton, , etc

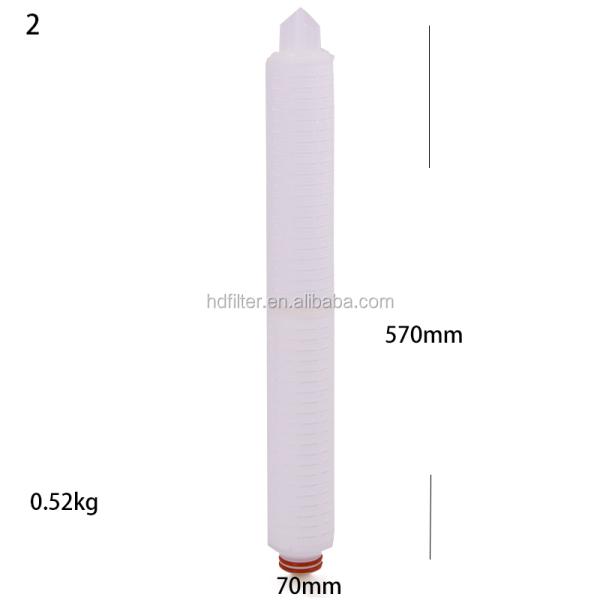

Cartridge Dimensions
Outer Diameter
69mm(2.75'')
Inner Diameter
33mm(1.30'')
Length(based on DOE end caps)
10"- 254mm, 20"- 508mm, 30"-762 mm, 40"- 1016mm
Filtration Area(m2)
0.65 m2 per 10''
Operating conditions
Normal Operating Temperature:
Up to 60℃ (140℉)
Max.Operating Temperature:
80℃ (172℉) at P≤1.0 bar (14psi)
Max. Differential Pressure
Normal Flow direction:
4.2 bar (60 psi) at 25℃ (77℉)
Reverse flow direction:
2.1 bar (30psi) at 25℃ (77℉).
PH Value compatibility:
1-13
Sterilization:
Steam Sterilization for 30 minutes at 121±2 ℃,
Cumulative Time:15hours;
Flush with hot water at 82℃(180℉) for 30 minutes,
at P≤1.0 bar (14psi) -- Recommended.
Cartridge Safety
Endotoxin:
<0.25 EU/ml
Extractables:
0.03g / 10"
20
20
20
20
20
20
FAQ
Q1: Can you accept the sample order?
Yes, we can.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
Neutral package. Welcome to customized if you need.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 25-30 days for the mass production.
Q5: Are you a factory?
We are not just factories, we have more than 10 years of R&D capabilities.
