Air Filter Making Machine Fully Automatic Assembly Line With Omron Control System For High Speed And Unmanned Operation
Air Filter Making Machine Fully Automatic Assembly Line With Omron Control System For High Speed And Unmanned Operation
Specifications
Brand Name :
LESITE
Model Number :
Standard
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
0~850,000RMB/PCS
Payment Terms :
T/T
Supply Ability :
1PCS/30work day
Delivery Time :
20-30work day
Packaging Details :
Standard
Brand :
LESITE
Name :
Fully automatic air bag filter assembly production line
Power supply :
220V/380V
Total power :
20KW
Function :
Air bag filter automatic production line
Weight :
1000kg
Overall Dimensions :
3900 * 5000 * 2300mm
After Warranty Service :
Online support
Production speed :
8pcs / min (MAX)
Description

Filter Bag Assembly Equipment (Bagging + Riveting Machine)

Product Overview

This professional equipment is dedicated to the assembly of air filter bags, integrating high-precision bagging and riveting functions. It is designed for efficient production of filter bags with stable performance, wide applicability to filter materials, and strict compliance with industrial quality standards. The equipment realizes automated collaboration between bagging and riveting processes, significantly improving production efficiency while ensuring consistent product quality.

Core Advantages

• Strict quality inspection in every production procedure, adhering to the principle of "quality first"; • Fast & safe delivery with multiple transportation options to meet global delivery needs; • Professional assistance for clients in equipment foundation construction and installation guidance; • On-site training for first-line operators to ensure proficient operation; • Regular technical exchange and support to solve production challenges.

Technical Parameters

Technical Parameters Specific Specifications
Rated Voltage 220V (Single-phase) for Bagging Machine; 380V (Three-phase) for Riveting Machine
Rated Power 220V Circuit: 18kW; 380V Circuit: 2.2kW; Total Power: 19.6kW
Overall Dimensions (L×W×H) 3900mm × 5000mm × 2300mm
Production Efficiency Completes processing of 592mm×592mm×6 filter bags within 10 seconds per inner frame assembly
Number of Operators 1-2 persons
Applicable Materials 1. F5-F9 Grade Nonwovens;
2. Support & Filter Layer Fiberglass Cotton;
3. G4 Grade Cotton (Note: Final riveting assembly not supported)
Processing Range Filter Bag Length: 287-600mm;
Filter Bag Width: 287-600mm;
Number of Filter Bag Pockets: 3-12
Equipment Composition Bagging Machine + Riveting Machine

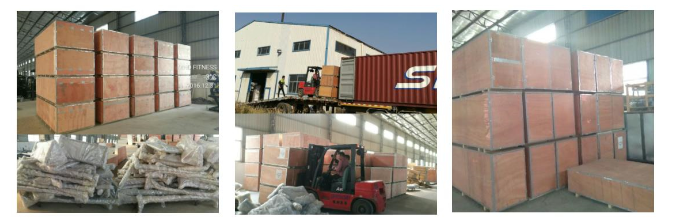

Packaging & Shipping

  1. Export-standard plywood cases with internal foam padding to ensure equipment safety during transportation;
  2. Flexible transportation options: Ocean shipping, air transportation, or land transportation (customized according to client requirements).
  3. Air Filter Making Machine Fully Automatic Assembly Line With Omron Control System For High Speed And Unmanned Operation

FAQ

  1. Q: Do you offer after-sales service? A: Yes. Engineers with more than ten years of after-sales experience will be dedicated to serving you.
  2. Q: How long is your warranty? A: One year after the arrival of the goods. During this period, for any damage caused by non-human factors, we will send the replacement parts free of charge.
  3. Q: Do you provide OEM service? A: Yes. Customized logos and specifications are available upon request.
  4. Q: What certificates do you have? A: ISO/CE/SGS.
  5. Q: What kind of payment do you accept? A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNION, MONEYGRAM.
  6. Q: What about your delivery time? A: Normally within 30 days after order confirmation (subject to production schedule).
  7. Q: What about the package of your export product? A: We use export wooden cases with foam inside for shockproof and waterproof protection.

Tag

Air Filter Bag Assembly Equipment, Bagging & Riveting Machine, Industrial Filter Production Line, F5-F9 Nonwoven Filter Equipment, High-Efficiency Filter Making Machine, Custom Filter Assembly Equipment, ISO Certified Filter Machinery
