Stainless Steel 304 316 Contrast I-Net, Generally With 0.05m to1.0m
Stainless Steel 304 316 Contrast I-Net, Generally With 0.05m to1.0m
Stainless Steel 304 316 Contrast I-Net, Generally With 0.05m to1.0m
Stainless Steel 304 316 Contrast I-Net, Generally With 0.05m to1.0m
Stainless Steel 304 316 Contrast I-Net, Generally With 0.05m to1.0m
Stainless Steel 304 316 Contrast I-Net, Generally With 0.05m to1.0m
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Delivery Time :
According to required quantity.
Packaging Details :
each roll with polyfilm with water proof paper outside/wooden pallets
Material :
Stainless Steel Wire
Type :
Wire Cloth
Braiding Technique :
Reserve Plain Dutch Weave; Reserve Twill Dutch Weave
Max Width :
1.0m
Certification :
ISO9001:2015
Description

Stainless Steel 304 316 Contrast I-Net, Generally With 0.05m to1.0m

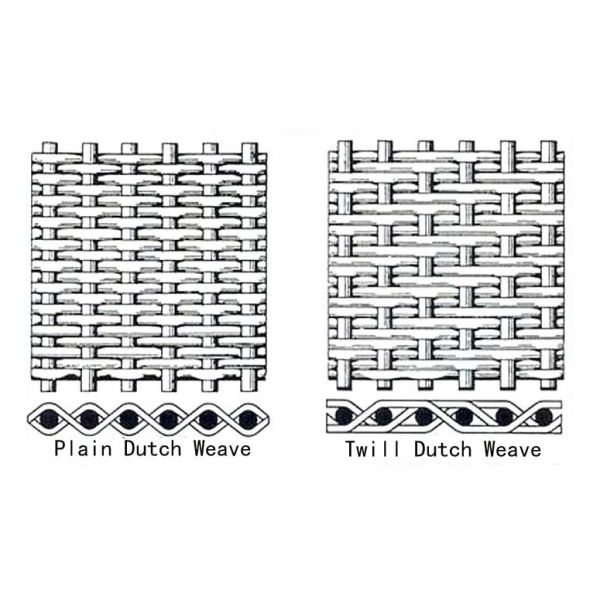

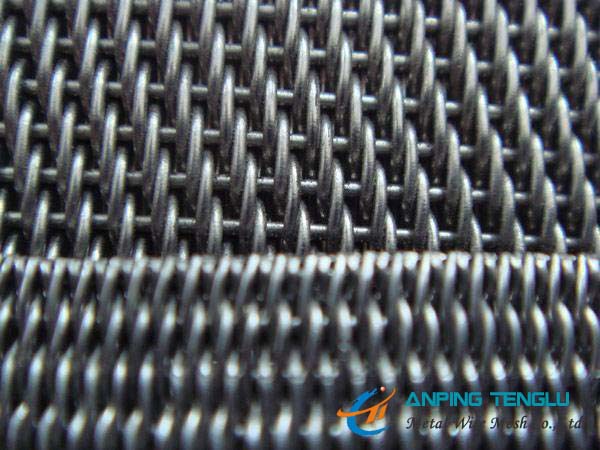

Stainless steel Contrast I-Net is also called reverse dutch wire cloth. Compared with standard dutch weaving, reverse dutch weaving is a very strong woven product in which the larger count of wires is found in the warp and the smaller count in the shute, thus reversing the method used in plain dutch weave, twilled dutch weaves and sometimes referred to as PZ and KPZ Mesh.

Features: Stainless steel reverse dutch wire mesh offers good wear-resistance, acid-resistance, heat-resistance and corrosion resistance. It also has fine filtration and highly durable construction. With excellent filtration performance, filtration accuracy, high load strength, high/low temperature resistance and other characteristics.

Max Width: 1.0m (Weaving 1020mm then cut the edge.)

Common Material: SS304, SS304L, SS316, SS316L.

Weaving methods: reverse plain dutch weave, reverse twill dutch weave.

Stainless Steel 304 316 Contrast I-Net, Generally With 0.05m to1.0m

Stainless Steel 304 316 Contrast I-Net, Generally With 0.05m to1.0m

Application:
• Filter for plastic,rubber,oil industry.
• High tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry.
• Rubbed edges after slitting to help with tracking for Auto-Screen changers.
• Plasma and laser cut parts to help prevent edges wire fraying.
• 100% Inspection of Wire Cloth for critical applications such as sand screens and aerospace applications.

Commen Specifications

Mesh Counts

Wire Diameter

(mm)

Width

(m)

Length

(m)
72×15 0.45×0.45 0.1 to 1.0 10 to 50
132×17 0.30×0.45 0.1 to 1.0 10 to 50
152×24 0.30×0.40 0.1 to 1.0 10 to 50
260×40 0.15×0.25 0.1 to 1.0 10 to 50
325×38 0.13×0.25 0.1 to 1.0 10 to 50

Othere specifications according to your requests.

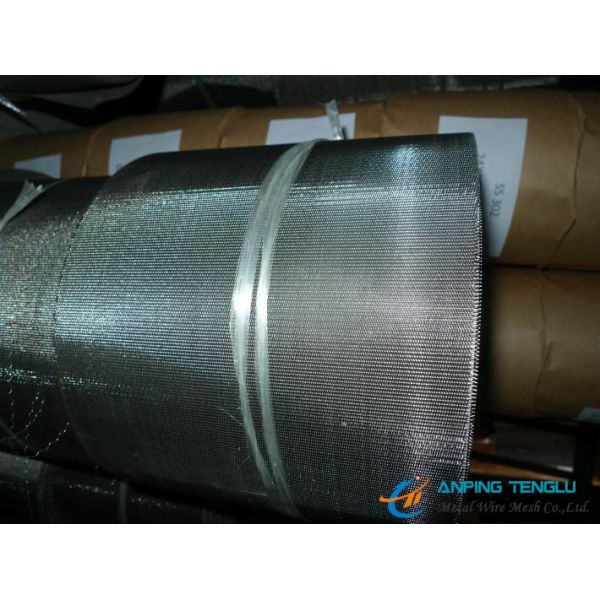

Packing

Stainless Steel 304 316 Contrast I-Net, Generally With 0.05m to1.0m
