Stainless Steel Three Heddle Weaving Wire Cloth for Industry Filters
Stainless Steel Three Heddle Weaving Wire Cloth for Industry Filters
Stainless Steel Three Heddle Weaving Wire Cloth for Industry Filters
Stainless Steel Three Heddle Weaving Wire Cloth for Industry Filters
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5 rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
According to required quantity(Generally less than 30 days)
Packaging Details :
Wrapped with moister-proof paper, then in wooden cases.
Material :
Stainless Steel Wire, Nickel Wire, Copper Wire
Type :
Wire Cloth
Application :
Filters
Technique :
Woven
Weave Style :
Three-heddle Dutch
Certification :
ISO9001:2015
Description

Three Heddle Woven Stainless Steel Wire Cloth

Stainless Steel Three Heddle Weaving Wire Cloth for Industry Filters

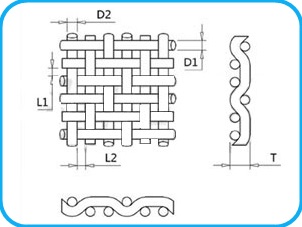

D1,D2 stand for wire diameter; L1,L2 stand for mesh;T stand for mesh thickness.

Material: SS304, SS304L, SS316, SS316L, 904L, 2205. Other material like nickel wire, copper wire can be offered.

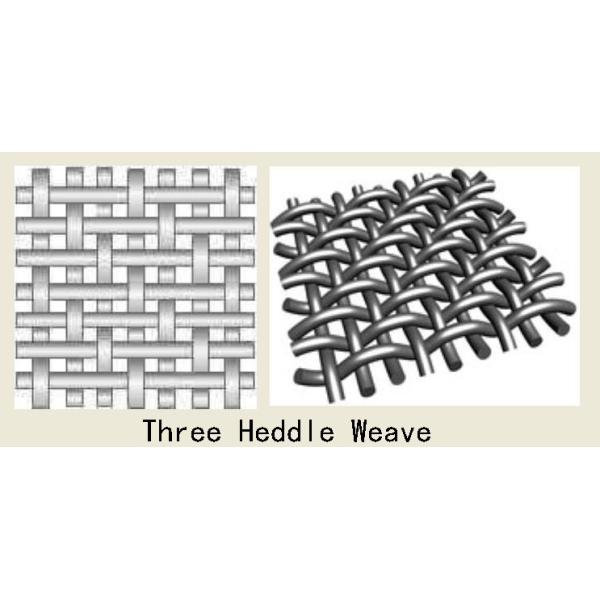

Weave Type:

Each warp wire alternately goes under and above each one and two weft wires, meanwhile, each weft wire goes alternately under and above each one and two warp wires.

Stainless Steel Three Heddle Weaving Wire Cloth for Industry Filters

Features:

Large aperture, falt surface; Firm in structure, high load tolerability, high tensile-resistance, good air permeability; High flow rate and easy to clean.

Applications:

Used in industry filter, paper making drier part , machine conveyer belt, cultural paper, super calendaring printing paper, hectograph.

Specifications

Warp(mm) Weft (mm) Open area Weight
Mesh/Inch Wire Dia. Aperture Mesh/Inch Wire Dia. Aperture Rate (%) kg/㎡
24 0.35 0.7 18 0.4 1.0 97 1.45
50 0.23 0.27 30 0.3 0.54 70 1.33
60 0.2 0.217 40 0.24 0.405 66 1.17
80 0.14 0.17 60 0.17 0.25 34 0.82


Other size according to your requirements.

Packing: wrapped with moister-proof paper, then in wooden cases.
