22×22mesh Stainless Steel Wire Mesh for Sifting Powders, Shielding
22×22mesh Stainless Steel Wire Mesh for Sifting Powders, Shielding
22×22mesh Stainless Steel Wire Mesh for Sifting Powders, Shielding
22×22mesh Stainless Steel Wire Mesh for Sifting Powders, Shielding
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5rolls
Price :
usd
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
In 20days
Packaging Details :
Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof.
Material :
Stainless Steel Wire
Mesh/Inch :
22Holes/Inch
Wire Diameter :
0.15mm-0.40mm
Width :
1.0m, 1.2m, 1.5m, 2.0m, 3.0m; 36", 48".
Length :
30m; 100ft
Certification :
ISO9001:2015
Description

22×22mesh Stainless Steel Wire Mesh for Sifting Powders, Shielding

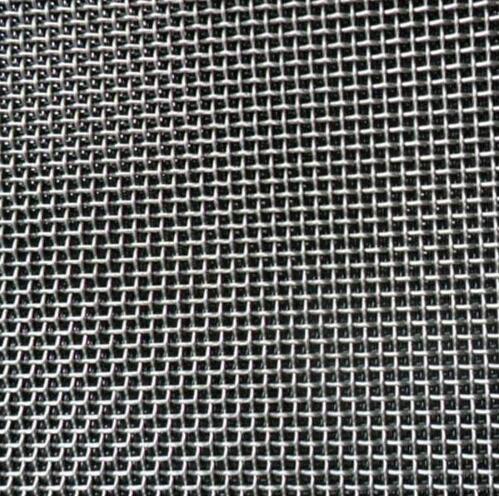

Stainless Steel Woven Wire Mesh

22 mesh plain weave stainless steel wire mesh including 22 wires and openings of 1 inch Using 0.15-0.40mm diameter wire, by plain weaving, woven 22 mesh opening for 0.7-1.0mm solid particles , it can also be used as a liquid or gas fine filter material.. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Materials: SS201, SS202; SS301, SS302, SS304, SS304L, SS309, SS309S, SS310, SS310S, SS316, SS316L, SS321; SS410, SS420, SS430.

Weaving Type:Plain weave.

22×22mesh Stainless Steel Wire Mesh for Sifting Powders, Shielding

Characteristics:
Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion and rust resistance.
Square aperture,high flow through and relative high open area,as result less pressure drop during filtration.
Meantime stainless steel square mesh also has the features of acid resistance , alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.

Applications:

Sifting powders;

Sieves;

Battery;

Shielding;

Coffee filter;

Fiber spinning machine mesh.


Specifications:

Mesh Wire Diameter Aperture Open Area Rate Weight/㎡
mm Inch mm Inch % Kgs Lbs
22 0.40 0.0157 0.754 0.0297 42.71 1.76 3.87
0.35 0.0137 0.804 0.0316 48.56 1.34 2.96
0.30 0.0118 0.854 0.0336 54.78 0.99 2.17
0.27 0.0106 0.884 0.0348 58.69 0.80 1.76
0.25 0.0098 0.904 0.0356 61.38 0.68 1.49
0.23 0.0090 0.925 0.0363 64.12 0.58 1.27
0.21 0.0082 0.944 0.0371 66.93 0.48 1.05
0.19 0.0074 0.964 0.0379 69.79 0.39 0.87
0.17 0.0066 0.984 0.0387 72.71 0.31 0.69
0.15 0.0059 1.004 0.0395 75.70 0.24 0.54
Roll Width: Max 8.0m

Mesh Standard Specifications:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
1x1 0.08 2.03 0.92 23.37 84.6 41.1
2X2 0.063 1.6 0.437 11.1 76.4 51.2
3X3 0.054 1.37 0.279 7.09 70.1 56.7
4X4 0.063 1.6 0.187 4.75 56 104.8
4X4 0.047 1.19 0.203 5.16 65.9 57.6
5X5 0.041 1.04 0.159 4.04 63.2 54.9
6X6 0.035 0.89 0.132 3.35 62.7 48.1
8X8 0.028 0.71 0.097 2.46 60.2 41.1
10X10 0.025 0.64 0.075 1.91 56.3 41.2
10X10 0.02 0.51 0.08 2.03 64 26.1
12X12 0.023 0.584 0.06 1.52 51.8 42.2
12X12 0.02 0.508 0.063 1.6 57.2 31.6
14X14 0.023 0.584 0.048 1.22 45.2 49.8
14X14 0.02 0.508 0.051 1.3 51 37.2
16X16 0.018 0.457 0.0445 1.13 50.7 34.5
18X18 0.017 0.432 0.0386 0.98 48.3 34.8
20X20 0.02 0.508 0.03 0.76 36 55.2
20X20 0.016 0.406 0.034 0.86 46.2 34.4
24X24 0.014 0.356 0.0277 0.7 44.2 31.8
30X30 0.013 0.33 0.0203 0.52 37.1 34.8
30X30 0.012 0.305 0.0213 0.54 40.8 29.4
30X30 0.009 0.229 0.0243 0.62 53.1 16.1
35X35 0.011 0.279 0.0176 0.45 37.9 29
40X40 0.01 0.254 0.015 0.38 36 27.6
50X50 0.009 0.229 0.011 0.28 30.3 28.4
50X50 0.008 0.203 0.012 0.31 36 22.1
60X60 0.0075 0.191 0.0092 0.23 30.5 23.7
60X60 0.007 0.178 0.0097 0.25 33.9 20.4
70X70 0.0065 0.165 0.0078 0.2 29.8 20.8
80X80 0.0065 0.165 0.006 0.15 23 23.2
80X80 0.0055 0.14 0.007 0.18 31.4 16.9
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8

Other specifications according to your requirements.

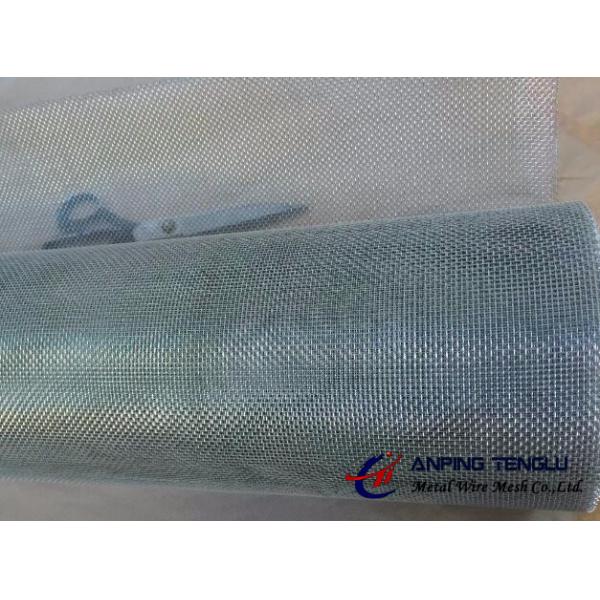

Packing:

22×22mesh Stainless Steel Wire Mesh for Sifting Powders, Shielding
