400mesh Stainless Steel 316L, Plain Weave Mesh for Industry Filter
400mesh Stainless Steel 316L, Plain Weave Mesh for Industry Filter
400mesh Stainless Steel 316L, Plain Weave Mesh for Industry Filter
400mesh Stainless Steel 316L, Plain Weave Mesh for Industry Filter
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
10rolls
Price :
usd
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
In 20days
Packaging Details :
Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof.
Material :
SS316L
Mesh Count :
400mesh
Wire Dia. :
0.03mm
Width :
1.0m, 1.2m, 1.5m, 2.0m
Length :
30m or 100ft
Weave Type :
Plain Weave, Twill Weave
Certification :
ISO9001:2015
Description

400mesh Stainless Steel Woven Wire Mesh

We are specialized in producing and distributing stainless steel wire mesh, stainless steel wire cloth, stainless steel woven mesh, stainless steel filter mesh, stainless steel hardare cloth, stainless steel window screening,woven hardare cloth,stainless steel screen.

400mesh Stainless Steel 316L, Plain Weave Mesh for Industry Filter

Materials: SUS201, SUS302, SUS304, 304L, SUS316, SUS316L, 310,310S, etc.


Weaving Type: Plain Weave

Characteristics:

High tension, much higher tension than common polyester mesh,and this property is very suitable.

Super precision:uniform wire diameter and aperture with extremely low difference.

Low elongation: very small elongation of wire mesh at high tension

High flexibility:the wire mesh will not lose elasticity at extreme tension

High corrosion resistance:the excellent corronsion resistance of stainless steel wire exceeds polyester fiber

Non-electrostatic:to avoid affects of nonelectrostatic for printing and ensure the safety of priting

Good heat melting resistance:special features of steel wire mesh suitable for heta-melting ink

Good solvent resistance:to avoid the affects of any solvents to wire mesh


Applications:

Used in mine oil, Chemical industry, food industry, pharmaceutical industry and machines producing.

Specifications:

Mesh Counts: 400mesh/Inch
Wire iameter :0.03mm

Standard Specifications:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
1x1 0.08 2.03 0.92 23.37 84.6 41.1
2X2 0.063 1.6 0.437 11.1 76.4 51.2
3X3 0.054 1.37 0.279 7.09 70.1 56.7
4X4 0.063 1.6 0.187 4.75 56 104.8
4X4 0.047 1.19 0.203 5.16 65.9 57.6
5X5 0.041 1.04 0.159 4.04 63.2 54.9
6X6 0.035 0.89 0.132 3.35 62.7 48.1
8X8 0.028 0.71 0.097 2.46 60.2 41.1
10X10 0.025 0.64 0.075 1.91 56.3 41.2
10X10 0.02 0.51 0.08 2.03 64 26.1
12X12 0.023 0.584 0.06 1.52 51.8 42.2
12X12 0.02 0.508 0.063 1.6 57.2 31.6
14X14 0.023 0.584 0.048 1.22 45.2 49.8
14X14 0.02 0.508 0.051 1.3 51 37.2
16X16 0.018 0.457 0.0445 1.13 50.7 34.5
18X18 0.017 0.432 0.0386 0.98 48.3 34.8
20X20 0.02 0.508 0.03 0.76 36 55.2
20X20 0.016 0.406 0.034 0.86 46.2 34.4
24X24 0.014 0.356 0.0277 0.7 44.2 31.8
30X30 0.013 0.33 0.0203 0.52 37.1 34.8
30X30 0.012 0.305 0.0213 0.54 40.8 29.4
30X30 0.009 0.229 0.0243 0.62 53.1 16.1
35X35 0.011 0.279 0.0176 0.45 37.9 29
40X40 0.01 0.254 0.015 0.38 36 27.6
50X50 0.009 0.229 0.011 0.28 30.3 28.4
50X50 0.008 0.203 0.012 0.31 36 22.1
60X60 0.0075 0.191 0.0092 0.23 30.5 23.7
60X60 0.007 0.178 0.0097 0.25 33.9 20.4
70X70 0.0065 0.165 0.0078 0.2 29.8 20.8
80X80 0.0065 0.165 0.006 0.15 23 23.2
80X80 0.0055 0.14 0.007 0.18 31.4 16.9
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8

Other specifications according to your requirements.

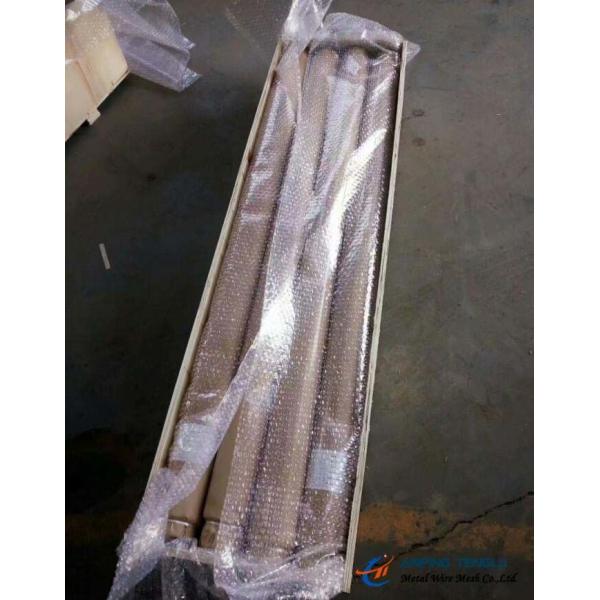

Packing:

400mesh Stainless Steel 316L, Plain Weave Mesh for Industry Filter
