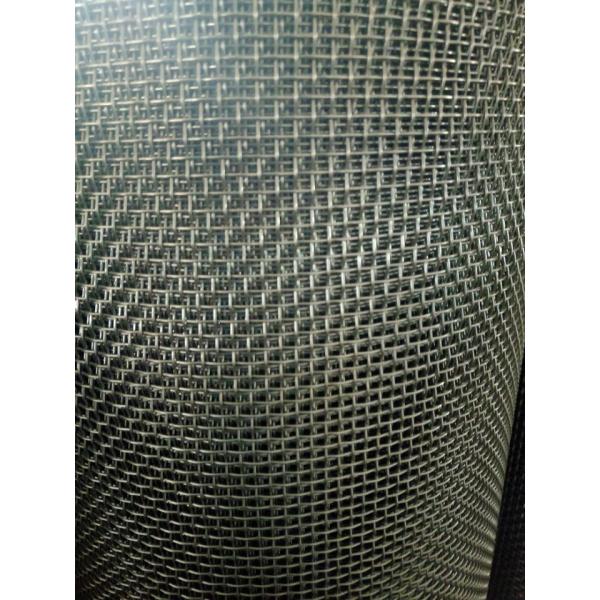

12mesh SS304 Stainless Steel Woven Wire Mesh For Industry Filters
12mesh SS304 Stainless Steel Woven Wire Mesh For Industry Filters
12mesh SS304 Stainless Steel Woven Wire Mesh For Industry Filters
12mesh SS304 Stainless Steel Woven Wire Mesh For Industry Filters
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
10rolls
Price :
usd
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
In 20days
Packaging Details :
Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof.
Material :
SUS304
Mesh Count :
20/inch
Wire Dia. :
0.45mm
Width :
1.22m/48"
Length :
30.5m/100ft
Certification :
ISO9001:2015
Description

Stainless Steel Woven Wire Mesh

Stainless steel wire mesh can be supplied in Square Mesh Wire Cloth and Space Cloth as a result of different weaving patterns or to meet the demand of specific application devices. This kind of wove Mesh is formed by interlocking wire to produce a given aperture.

We produces Stainless Steel Wire Mesh from first class stainless steel wire materials in SUS302, 304, 316, 304L, 316L.

Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, dutch weave.

General Use: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.


12mesh SS304 Stainless Steel Woven Wire Mesh For Industry Filters
Materials: SUS201, SUS302, SUS304, 304L, SUS316, SUS316L, 310,310S, etc.


Weaving Type:
Plain weave.
The weaving is determined according to our customers specific requirements, such as the material,the wire diameter,the size of the mesh,width and length.

Characteristics:
Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion resistance and rust resistance resistance.

Square aperture, high flow through and relative high open area, as result less pressure drop during filtration.

Meantime stainless steel square mesh also has the features of acid resistance , alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.

Applications:
Air Vents;
Filters;
Test sieves;
Plastic Particles Screening;
Door and Window Protection;
Sand Sieve;
Drug Screening;
Filtration Support Material;
Machine Sieve;
Food Screening;
Shale Shaker Screen.

Specifications:

Mesh Wire Diameter Aperture Open Area Rate Weight/㎡
mm Inch mm Inch % Kgs Lbs
12 0.80 0.0314 1.316 0.0518 38.69 3.84 8.44
0.70 0.0275 1.416 0.0557 44.79 2.94 6.46
0.60 0.0236 1.516 0.0597 51.34 2.16 4.75
0.50 0.0196 1.616 0.0636 58.33 1.50 3.30
0.40 0.0157 1.716 0.0675 65.77 0.96 2.11
0.30 0.0118 1.816 0.0715 73.66 0.54 1.18
Roll Width: Max 8.0m

Standard Specifications:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
1x1 0.08 2.03 0.92 23.37 84.6 41.1
2X2 0.063 1.6 0.437 11.1 76.4 51.2
3X3 0.054 1.37 0.279 7.09 70.1 56.7
4X4 0.063 1.6 0.187 4.75 56 104.8
4X4 0.047 1.19 0.203 5.16 65.9 57.6
5X5 0.041 1.04 0.159 4.04 63.2 54.9
6X6 0.035 0.89 0.132 3.35 62.7 48.1
8X8 0.028 0.71 0.097 2.46 60.2 41.1
10X10 0.025 0.64 0.075 1.91 56.3 41.2
10X10 0.02 0.51 0.08 2.03 64 26.1
12X12 0.023 0.584 0.06 1.52 51.8 42.2
12X12 0.02 0.508 0.063 1.6 57.2 31.6
14X14 0.023 0.584 0.048 1.22 45.2 49.8
14X14 0.02 0.508 0.051 1.3 51 37.2
16X16 0.018 0.457 0.0445 1.13 50.7 34.5
18X18 0.017 0.432 0.0386 0.98 48.3 34.8
20X20 0.02 0.508 0.03 0.76 36 55.2
20X20 0.016 0.406 0.034 0.86 46.2 34.4
24X24 0.014 0.356 0.0277 0.7 44.2 31.8
30X30 0.013 0.33 0.0203 0.52 37.1 34.8
30X30 0.012 0.305 0.0213 0.54 40.8 29.4
30X30 0.009 0.229 0.0243 0.62 53.1 16.1
35X35 0.011 0.279 0.0176 0.45 37.9 29
40X40 0.01 0.254 0.015 0.38 36 27.6
50X50 0.009 0.229 0.011 0.28 30.3 28.4
50X50 0.008 0.203 0.012 0.31 36 22.1
60X60 0.0075 0.191 0.0092 0.23 30.5 23.7
60X60 0.007 0.178 0.0097 0.25 33.9 20.4
70X70 0.0065 0.165 0.0078 0.2 29.8 20.8
80X80 0.0065 0.165 0.006 0.15 23 23.2
80X80 0.0055 0.14 0.007 0.18 31.4 16.9
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8

Other specifications according to your requirements.
