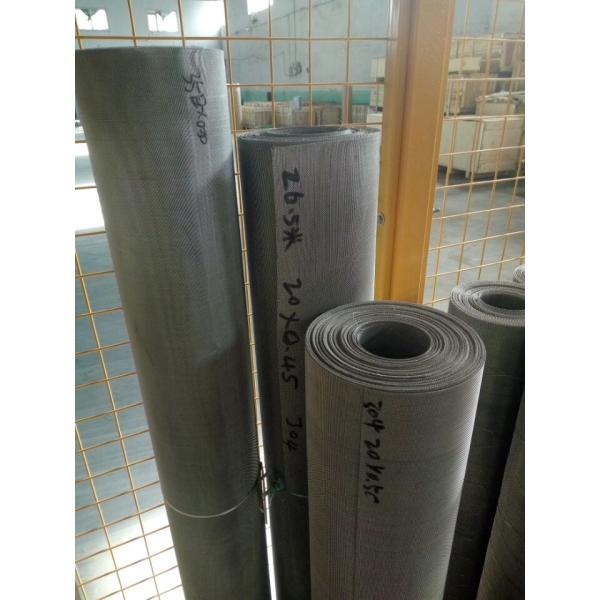

24mesh Stainless Steel 304 316 Plain Weave Mesh for Industry Filter
24mesh Stainless Steel 304 316 Plain Weave Mesh for Industry Filter
24mesh Stainless Steel 304 316 Plain Weave Mesh for Industry Filter
24mesh Stainless Steel 304 316 Plain Weave Mesh for Industry Filter
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
10rolls
Price :
usd
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
In 20days
Packaging Details :
Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof.
Material :
SUS304
Mesh Count :
24/inch
Wire Dia. :
0.35mm
Width :
1.22m/48"
Length :
30.5m/100ft
Certification :
ISO9001:2015
Description

Stainless Steel Woven Wire Mesh

Stainless steel wire is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth. T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. The wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.


24mesh Stainless Steel 304 316 Plain Weave Mesh for Industry Filter

Materials: SUS201, SUS302, SUS304, 304L, SUS316, SUS316L, 310,310S, etc.


Weaving Type: Plain weave.
24mesh Stainless Steel 304 316 Plain Weave Mesh for Industry Filter

Characteristics:
Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion resistance and rust resistance resistance.

Square aperture, high flow through and relative high open area, as result less pressure drop during filtration.

Meantime stainless steel square mesh also has the features of acid resistance , alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.

Applications:
This kind of stainless steel wire mesh are widely used in such fields as environmental protection, pharmaceutical industry, chemical industry, food industry, mechanical industry, smelting industry, coal mining, paper making, cement, construction industry, decoration, aeronautics and astronautics and so on.

Specifications:

Mesh Wire Diameter Aperture Open Area Rate Weight/㎡
mm Inch mm Inch % Kgs Lbs
24 0.35 0.0137 0.708 0.0278 44.79 1.47 3.23
0.30 0.0118 0.758 0.0298 51.34 1.08 2.37
0.27 0.0106 0.788 0.0310 55.48 0.87 1.92
0.25 0.0098 0.808 0.0318 58.33 0.75 1.65
0.23 0.0090 0.828 0.0326 61.25 0.63 1.38
0.21 0.0082 0.848 0.0333 64.25 0.52 1.14
0.19 0.0074 0.868 0.0341 67.31 0.43 0.95
0.17 0.0066 0.888 0.0349 70.45 0.34 0.76
0.15 0.0059 0.908 0.0357 73.66 0.27 0.59
0.13 0.0051 0.928 0.0365 76.94 0.20 0.44
0.12 0.0047 0.938 0.0369 78.60 0.17 0.38
Roll Width: Max 8.0m

Standard Specifications:

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
1x1 0.08 2.03 0.92 23.37 84.6 41.1
2X2 0.063 1.6 0.437 11.1 76.4 51.2
3X3 0.054 1.37 0.279 7.09 70.1 56.7
4X4 0.063 1.6 0.187 4.75 56 104.8
4X4 0.047 1.19 0.203 5.16 65.9 57.6
5X5 0.041 1.04 0.159 4.04 63.2 54.9
6X6 0.035 0.89 0.132 3.35 62.7 48.1
8X8 0.028 0.71 0.097 2.46 60.2 41.1
10X10 0.025 0.64 0.075 1.91 56.3 41.2
10X10 0.02 0.51 0.08 2.03 64 26.1
12X12 0.023 0.584 0.06 1.52 51.8 42.2
12X12 0.02 0.508 0.063 1.6 57.2 31.6
14X14 0.023 0.584 0.048 1.22 45.2 49.8
14X14 0.02 0.508 0.051 1.3 51 37.2
16X16 0.018 0.457 0.0445 1.13 50.7 34.5
18X18 0.017 0.432 0.0386 0.98 48.3 34.8
20X20 0.02 0.508 0.03 0.76 36 55.2
20X20 0.016 0.406 0.034 0.86 46.2 34.4
24X24 0.014 0.356 0.0277 0.7 44.2 31.8
30X30 0.013 0.33 0.0203 0.52 37.1 34.8
30X30 0.012 0.305 0.0213 0.54 40.8 29.4
30X30 0.009 0.229 0.0243 0.62 53.1 16.1
35X35 0.011 0.279 0.0176 0.45 37.9 29
40X40 0.01 0.254 0.015 0.38 36 27.6
50X50 0.009 0.229 0.011 0.28 30.3 28.4
50X50 0.008 0.203 0.012 0.31 36 22.1
60X60 0.0075 0.191 0.0092 0.23 30.5 23.7
60X60 0.007 0.178 0.0097 0.25 33.9 20.4
70X70 0.0065 0.165 0.0078 0.2 29.8 20.8
80X80 0.0065 0.165 0.006 0.15 23 23.2
80X80 0.0055 0.14 0.007 0.18 31.4 16.9
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8

Other specifications according to your requirements.

Packing:

24mesh Stainless Steel 304 316 Plain Weave Mesh for Industry Filter
