Middle Carbon Steel, 45# Steel (ASTM: 1045, JIS: S45C), 20/40/60Mesh
Middle Carbon Steel, 45# Steel (ASTM: 1045, JIS: S45C), 20/40/60Mesh
Middle Carbon Steel, 45# Steel (ASTM: 1045, JIS: S45C), 20/40/60Mesh
Middle Carbon Steel, 45# Steel (ASTM: 1045, JIS: S45C), 20/40/60Mesh
Middle Carbon Steel, 45# Steel (ASTM: 1045, JIS: S45C), 20/40/60Mesh
Middle Carbon Steel, 45# Steel (ASTM: 1045, JIS: S45C), 20/40/60Mesh
Specifications
Brand Name :
Tenglu
Place of Origin :
Hengshui
MOQ :
5 rolls
Price :
Negotiable
Payment Terms :
T/T, L/C at sight, Western Union
Delivery Time :
According to required quantity.
Packaging Details :
Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof
Material :
ASTM-1045/ JIS-S45C/ GB-45#
Mesh Counts :
20mesh, 40mesh, 60mesh
Weave Style :
Plain Weave
Wire Diameter :
0.15mm-0.6mm
Width :
1.0m, 1.2m, 1.5m, etc
Length :
30m
Applications :
Sifting powders, Liquid/gas filters, Safety guards
Certification :
ISO9001:2015
Description
Middle Carbon Steel, 45# Steel (ASTM: 1045, JIS: S45C), 20/40/60Mesh

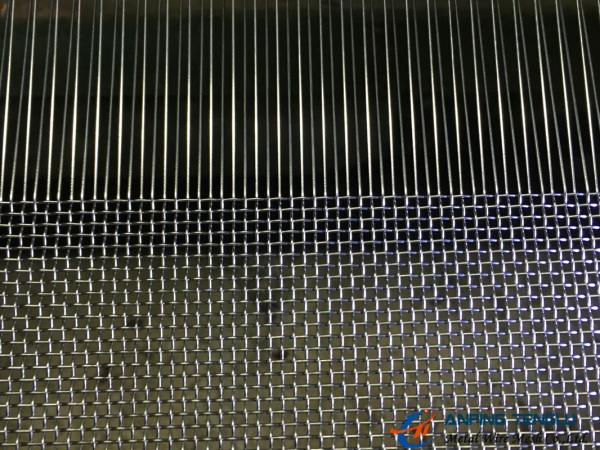

Middle Carbon Steel Wire Mesh
Middle Carbon Steel Wire Mesh with ASTM1045 and JIS S45C standard. 20mesh, 30mesh, 40mesh are widely used and most common type.
Mesh: 20X20mesh, Aperture: 0.97-1.07mm
Mesh: 30X30mesh, Aperture: 0.61-0.67mm
Mesh: 40X40mesh, Aperture: 0.44-0.48mm
Material: Midle carbon steel wire.
Features: his wire diameter and mesh with ratio reasonable, therefore weave structure is very strong.
Applications: it can also be used as a liquid, gas filter support material or protective fabrics to use.
Weaving Type: Plain Weave
Middle Carbon Steel, 45# Steel (ASTM: 1045, JIS: S45C), 20/40/60Mesh

20/30/40Mesh Specifications:

Mesh Wire Diameter Aperture Open Area Rate Weight/㎡
mm Inch mm Inch % Kgs Lbs
20 0.20 0.0079 1.07 0.0421 70.98 0.40 0.88
0.25 0.0098 1.02 0.0401 64.50 0.62 1.36
0.30 0.0118 0.97 0.0381 58.33 0.90 1.98
30 0.17 0.0066 0.676 0.0266 63.87 0.43 0.95
0.19 0.0074 0.656 0.0258 60.15 0.54 1.18
0.23 0.009 0.616 0.0242 53.04 0.79 1.73
40 0.15 0.0059 0.485 0.0190 58.33 0.45 0.99
0.17 0.0066 0.465 0.0183 53.62 0.57 1.27
0.19 0.0074 0.445 0.0175 49.11 0.72 1.58
Roll With: 0.6m to 1.5m

Packing

Middle Carbon Steel, 45# Steel (ASTM: 1045, JIS: S45C), 20/40/60Mesh
