High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
Specifications
Condition :
New
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Other
Weight (KG) :
25
Showroom Location :
Egypt, United States, Russia, UAE, Kazakhstan, Malaysia, Australia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
hot sales product
Warranty of core components :
12 months
Core Components :
Pressure vessel
Place of Origin :
Shanghai, China
Brand Name :
Runlan
Warranty :
12 months, 12 months
Product name :
Stainless Steel bag filter housing
Type :
Liquid Filter
Connection :
Flanged
Seal type :
BUNA,Silicone,Viton
Filter media :
filter bags
Shape :
Cylinder Shape
Flow rate :
8-1480m³
Micron Rating :
1~100micron
Material :
Stainless Steel 304 316 316L
Packaging Details :
Plywood Case
Supply Ability :
10000 Set/Sets per Month
Price :
$480.00/sets 1-9 sets
MOQ :
1
Description
Product Description

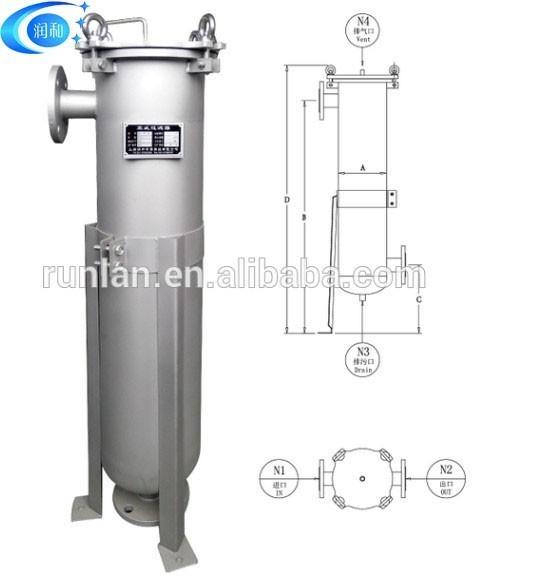

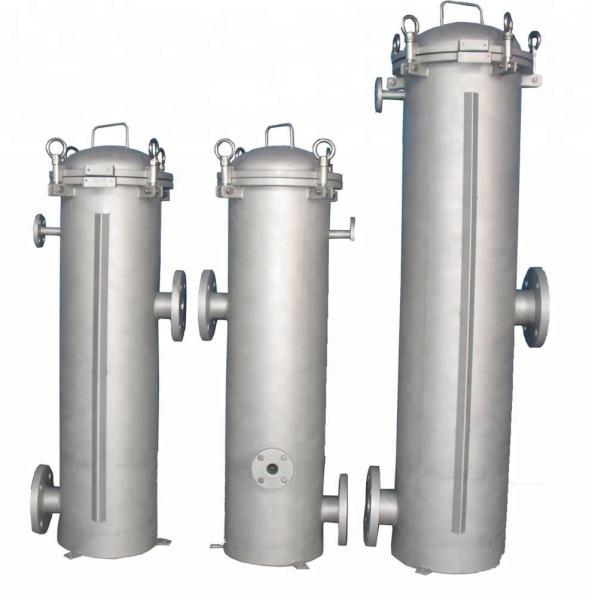

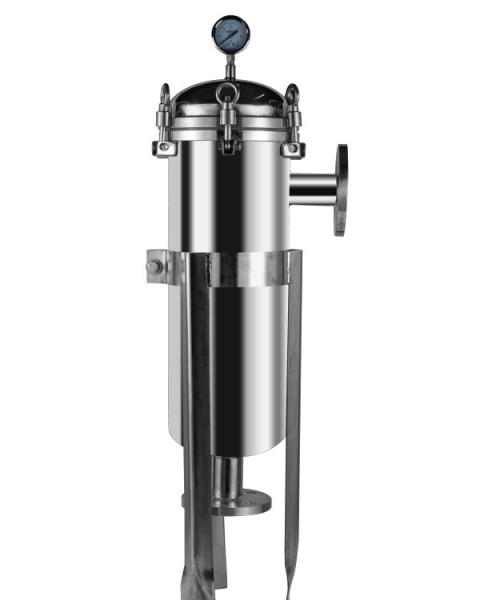

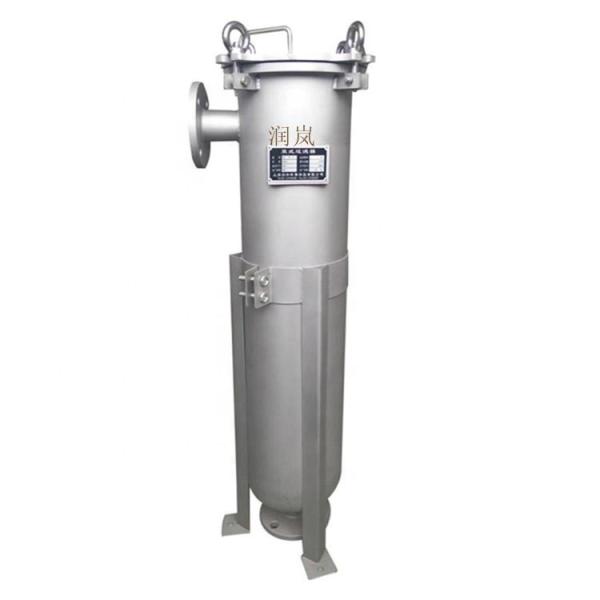

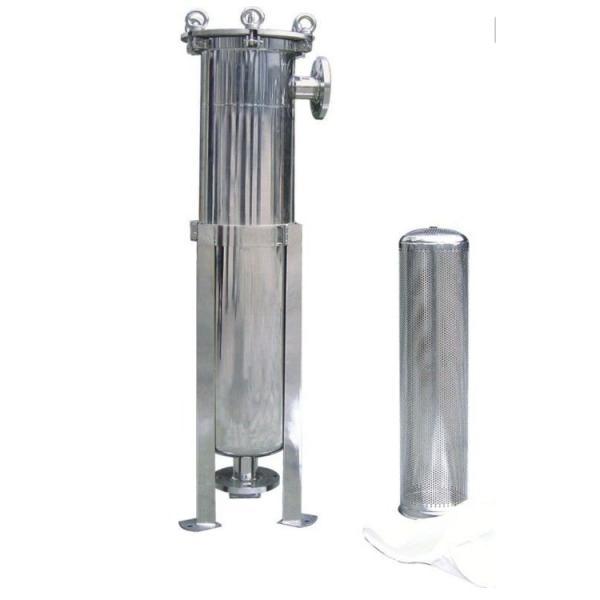

High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying

Material: SUS304, SUS316L
Connection type: screw thread or flange
Seal material: BUNA/Silicone/Viton
Seal type: O-type seal ring
Apply to a strainer: 1#/2#/3#/4# filter bag
Design pressure: 1.0Mpa
Design flow: 6-40m3/H
Surface disposal: Sandblast or electrolytic polishing
Side entrance design
Mounting legs with adjustable geight

Features
◆ High capacity, small size ◆ Easy to replace the filter bag, no need clean and labor saving ◆ After cleaning the filter bag can be used repeatedly to save cost ◆ Lower leakage risk ensures high quality ◆ Wide application, flexible use, various installation model for choice ◆ High working pressure, low pressure loss, low operation cost and energy saving
Specification
item
value
Condition
New
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Other
Weight (KG)
25
Showroom Location
Egypt, United States, Russia, UAE, Kazakhstan, Malaysia, Australia
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
hot sales product
Warranty of core components
12 months
Core Components
Pressure vessel
Place of Origin
China
Shanghai
Brand Name
Runlan
Warranty
12 months
Product name
stainless steel 304/316 filter housing
Type
Liquid Filter
Connection
Screw thread/Flanged
Seal type
BUNA,Silicone,Viton
Filter media
filter bags
Shape
Cylinder Shape
Flow rate
8-1480m³
Micron Rating
1~100micron
Material
Stainless Steel 304 316 316L
Warranty
12 months
Applicable industry
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
Certifications
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
Packing & Delivery
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
Company Profile
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
High Flow Food Grade Stainless Steel Filter Bag Housing for Juice Liquid Purifying
