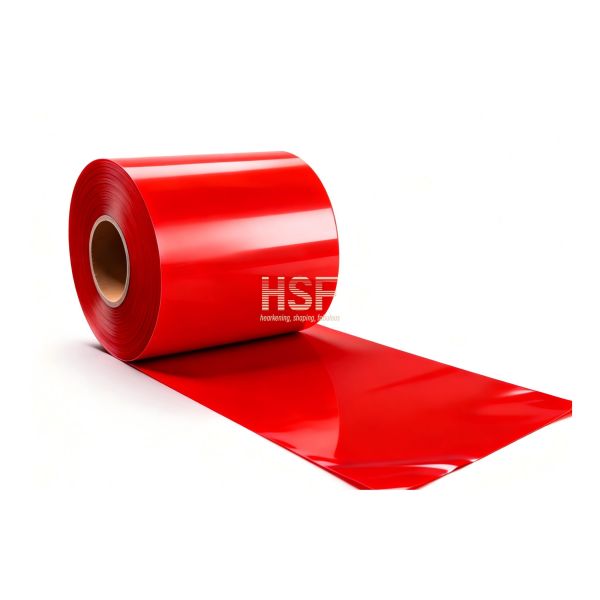

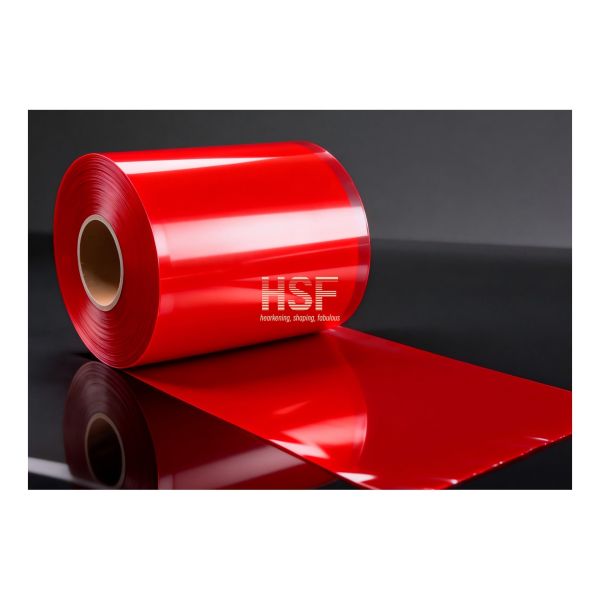

80μm Thickness Fade-Resistant Red CPE Base Film with High Tear Resistance for Industrial Applications
80μm Thickness Fade-Resistant Red CPE Base Film with High Tear Resistance for Industrial Applications
80μm Thickness Fade-Resistant Red CPE Base Film with High Tear Resistance for Industrial Applications
80μm Thickness Fade-Resistant Red CPE Base Film with High Tear Resistance for Industrial Applications
80μm Thickness Fade-Resistant Red CPE Base Film with High Tear Resistance for Industrial Applications
80μm Thickness Fade-Resistant Red CPE Base Film with High Tear Resistance for Industrial Applications
Specifications
Brand Name :
HSF
Model Number :
CPE80R
Place of Origin :
China
MOQ :
1000kg
Payment Terms :
T/T
Supply Ability :
50 tons per day
Delivery Time :
10 working days
Packaging Details :
Export Standard
Material :
LDPE or blended PE
Color :
Red
Surface Finish :
double-sided glossy, one side matte one side glossy, or double-sided matte.
Thickness :
30μm~300μm
Web Width :
Up to 2600mm
Description
80μm Red CPE Base Film
Premium fade-resistant masterbatch, uniform gauge, vivid red coloration, excellent tensile strength, high tear resistance, smooth surface, reliable processability, and lamination-compatible performance.
Production Process
Crafted with high-precision cast extrusion technology tailored for thick-gauge films, this 80μm red CPE base film begins with high-quality LDPE resin, homogenously blended with high-concentration, light-fast red masterbatch to ensure consistent color penetration. The compound is melted in a temperature-controlled extruder (170-190℃) for full fusion, then extruded through a precision flat die and cast onto a mirror-polished cooling roller for rapid, uniform solidification. Post-extrusion, it undergoes precise edge trimming, constant tension control, and static neutralization before being wound into tight, defect-free rolls—delivering consistent 80μm gauge, vivid red hue, and a smooth, blemish-free surface ideal for industrial processing.
Key Features
  • Strict thickness tolerance of ±4% ensures uniform density and performance
  • Vibrant, fade-resistant red color with exceptional heat and light fastness
  • Superior tensile strength and high tear resistance for enhanced durability
  • Excellent flexibility with reliable low-temperature toughness (-10℃ to 65℃)
  • Ultra-smooth surface enables seamless compatibility with lamination, coating, and printing
  • Optional anti-static or anti-slip surface treatments available for customized needs
Product Advantages
Distinguished by its thick 80μm gauge and vivid, consistent red color, this film stands out for easy visual identification in high-volume production lines, reducing sorting inefficiencies. Unlike thinner CPE films, it offers enhanced load-bearing capacity and puncture resistance, minimizing damage during handling and converting. Its premium formulation ensures exceptional batch-to-batch color and thickness consistency, cutting down conversion waste. Non-toxic, odorless, and compliant with global industrial standards, it combines heavy-duty performance with cost-effectiveness, backed by scalable production for steady bulk supply.
Application Environment
Optimized for heavy-duty industrial scenarios, the 80μm red CPE base film excels in thick protective packaging, automotive component wrapping, mechanical part shielding, and colored composite lamination. It performs reliably in dry, normal-temperature environments and moderate low-temperature storage (≥-10℃), maintaining stability during high-speed slitting, lamination, and coating processes. Ideal for manufacturers seeking a visually distinct, heavy-duty base film for industrial end-uses, logistics packaging, and high-demand composite applications requiring enhanced durability and color stability.

80μm Thickness Fade-Resistant Red CPE Base Film with High Tear Resistance for Industrial Applications

80μm Thickness Fade-Resistant Red CPE Base Film with High Tear Resistance for Industrial Applications

Technical Specifications
Test Item Unit Industry Standard Requirement Our Product Set Standard Actual Test Result Qualification Judgment
Total Thickness of Base Film μm 80±8 80±5 79.5 (LDPE 23.7/LLDPE 55.8) Qualified
Redness Uniformity - No obvious color difference, uniform coloring, no spots, no color fading No color difference, uniform dispersion of red masterbatch, no visible spots, no fading No color difference, uniform masterbatch dispersion, no spots, no fading Qualified
Light Shielding Rate % ≥90.0 ≥92.0 92.8 Qualified
Tensile Strength (Longitudinal/Transverse) MPa ≥22/≥20 ≥24/≥22 24.6/22.7 Qualified
Elongation at Break (Longitudinal/Transverse) % ≥350/≥330 ≥370/≥350 376/358 Qualified
Heat Sealing Strength (120℃, 0.3MPa, 1s) N/15mm ≥12.0 ≥14.0 14.5 Qualified
Surface Tension (Corona Treated Surface) mN/m ≥36 ≥38 39.5 Qualified
Tear Resistance (Longitudinal/Transverse) N ≥17/≥15 ≥19/≥17 19.3/17.5 Qualified
Moisture Barrier Performance (23℃, 85%RH) g/(m²·24h) ≤5.5 ≤5.0 4.8 Qualified
Oil Resistance (Soaked in n-hexane for 24h) - No obvious swelling, discoloration or deformation No swelling, no discoloration, no adhesion, no masterbatch precipitation, no deformation No swelling, no discoloration, no adhesion, no masterbatch precipitation, no deformation Qualified
Hardness (Shore D) HD 56±5 56±3 55.6 Qualified
Weather Resistance (UV Aging for 72h) - No obvious fading, cracking or discoloration No fading, no cracking, no deformation, redness retention rate ≥97.0% No fading, no cracking, no deformation, redness retention rate 97.6% Qualified
Environmental Protection Performance (Food Contact Grade) - Complies with GB 4806.7-2016 Complies with GB 4806.7-2016, no peculiar smell, no harmful precipitation, non-toxic red masterbatch, no heavy metal residues Complies with GB 4806.7-2016, no peculiar smell, no harmful precipitation, non-toxic red masterbatch, no heavy metal residues Qualified
