60μm Opaque Red PE Release Film Silicone UV Cured for Protective Packaging and Industrial Tapes
60μm Opaque Red PE Release Film Silicone UV Cured for Protective Packaging and Industrial Tapes
60μm Opaque Red PE Release Film Silicone UV Cured for Protective Packaging and Industrial Tapes
60μm Opaque Red PE Release Film Silicone UV Cured for Protective Packaging and Industrial Tapes
60μm Opaque Red PE Release Film Silicone UV Cured for Protective Packaging and Industrial Tapes
60μm Opaque Red PE Release Film Silicone UV Cured for Protective Packaging and Industrial Tapes
Specifications
Brand Name :
HSF
Model Number :
60ORPES
Place of Origin :
China
MOQ :
10000 square meters
Payment Terms :
T/T,L/C
Supply Ability :
500 per month
Delivery Time :
within 10 days
Packaging Details :
PE wrapping film, bubble film, processed wooden pallet
Material :
High density polyethylene
Color :
Red
Transparency :
Opaque
Thickness deviation :
Plus minus 5 μm
Width range :
Up to 2000 mm
Winding length :
5000 meters or so, customized
Sleeve ID :
3" or 6"
Thickness :
40 μm
Description

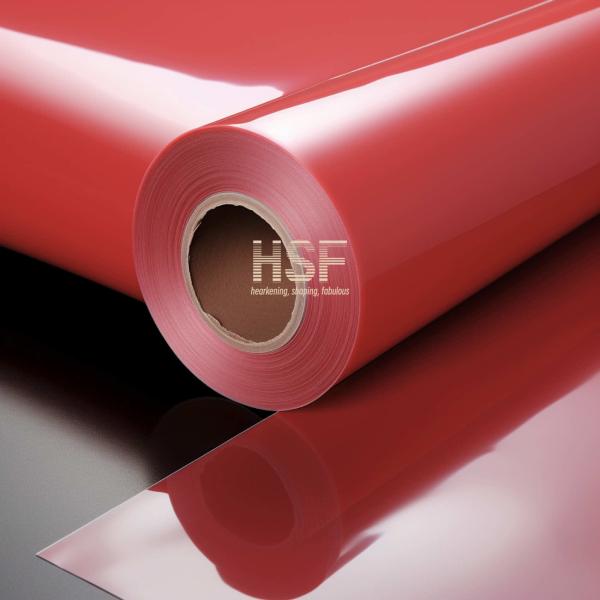

60μm Opaque Red PE Release Film
This 60-micron opaque red PE silicone coated release film is engineered for adhesive product manufacturing including tapes, labels, and various coated materials. With its 60-micron thickness, this film offers superior strength and stiffness compared to thinner alternatives.
Primary Applications
Industrial and Construction Tapes
Ideal for high-performance masking tapes, duct tapes, and specialty tape production requiring durable release liners.
Automotive Industry
Used as outer liner for double-sided tapes that secure body trims, molding, and automotive components.
Electrical and Electronic Industry
Applied in protective tapes and insulating materials for electrical applications.
Medical Industry
Utilized in advanced wound care products including wound dressings and medical tapes.
The distinctive red color enhances product visibility and enables easy identification and differentiation.
Technical Specifications
Parameter Specification Measured Value
Appearance No air bubbles / stains / breakage / impurities Measured data (Ref.)
Size - Width (mm) 960 ± 5 962
Size - Thickness (mm) 0.060 ± 0.005 0.061
Max. Tension (N/50mm) - TD ≥ 30 84
Max. Tension (N/50mm) - MD ≥ 30 104
Color Colorimeter △E＜ 3 ok
Elongation @ break (%) - TD ≥ 150 926
Elongation @ break (%) - MD ≥ 200 799
Surface Tension (Corona treatment) ≥42 dyne for each side
Release Force (gf/25mm 20min.Finat 10) - Inner 5-10 8
Release Force (gf/25mm 20min.Finat 10) - Outer 20-30 26
Subsequent Adhesion (%) - Inner ≥85 90
Subsequent Adhesion (%) - Outer ≥85 92
Winding direction Customized -
Splice No. ≤1 -
UV Curing Technology
UV curing has emerged as a preferred method for silicone coating on PE film, utilizing ultraviolet light to initiate chemical reactions that cure and crosslink silicone. This advanced process offers significant advantages over traditional heat curing methods.
UV Curing Benefits
  • Faster Processing: Cures silicone coating in seconds compared to conventional methods
  • Energy Efficiency: Lower energy consumption and reduced carbon footprint
  • Superior Coating Quality: Uniform application with excellent adhesion and chemical resistance
  • Increased Productivity: Reduced production times and higher throughput
  • Substrate Protection: No heat damage preserves PE film properties
Release Ratio Control
The stripping ratio on both sides of PE film is precisely controlled by regulating silicone coating weight. This ratio represents the force required to remove the release liner from adhesive surfaces.
Control Process
  • Requirement Definition: Determine specific release ratio needs for each application
  • Coating Adjustment: Modify silicone coating weight to achieve desired thickness and release characteristics
  • Quality Testing: Utilize tensile testers and release force testers for precise measurement
  • Process Optimization: Fine-tune coating parameters including temperature, solvent systems, and application methods
Establishing precise coating process parameters ensures consistent symmetrical release ratios across production batches.
