Beckhoff Germany PLC Control Slitting Rewinder Machine

1. APPLICATION AND FEATURES

The film - Slitting Rewinder Machine is especially designed for slitting metallized plastic films of capacitor applications.

The basic design comprises the following feature

• Horizontally moving, front placed rewind arms
• Horizontally moving slitting cartridge
• Controlled individual trim winder
• Electrostatic Eliminator
• Margin tracking system
• Pre-clearing system with pin hole
• Graphic touch panel
• Digital winding technique with AC servo drives
• Automatic stop when the film broken
• Closed-loop controlled unwind
• Fault diagnostic function
• Wave cutting system
• Optical layer monitoring
• Blade monitor system

2. TECHNICAL DATA

• Winding System: Center surface winding system with dual shafts
• Slitting System: Razor blades cutting
• Substrates: OPP. 2.0mic-12mic ; PET.1.2mic- 8mic
• Substrate Width: Max. 920mm
• Slitting Widths: Min. 4 .5 mm - Max.400 mm
• Slitting Width: 4.5mm-400mm
• Unwind Diameter: Max.650 mm
• Rewind Diameter: Max.350 mm
• Working Speed: Max. 300 m/min

3. SERVICE

• Electricity

1) 3 phase x 220 volt x 60 Hz

2) Connected power: approx. 18 kVA

3) Average consumption: approx. 12 kW

4) Voltage variation: <±10%

5) Frequency variation: <+5%

• Compressed air

1) Clean compressed air free from moisture, dirt and oil

2) Pressure: Approx. 5 bar gauge

• COMPETITIVE ADVANTAGES

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

• PACKING & DELIVERY

1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

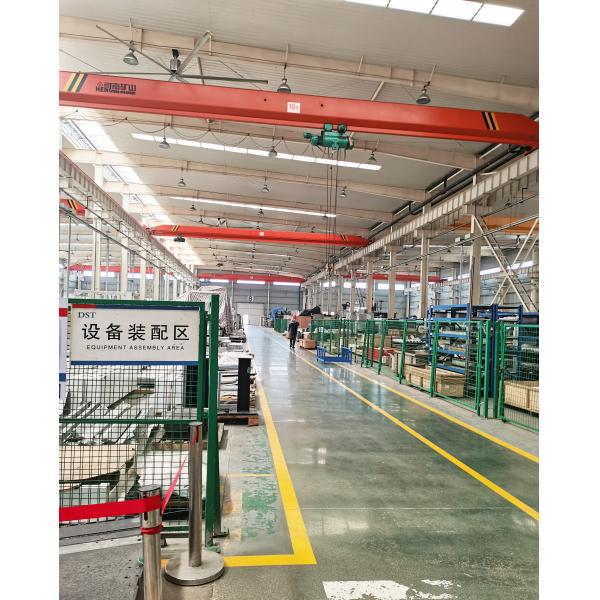

• OUR WORKSHOP

• OUR CUSTOMER

• FAQ

Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.

Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, welcome to visit our factory. Our factory is located in Hefei, Anhui,China.

Q3: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

Q4: Payment Terms
A: TT 30% down payment, 70% before shipment.
