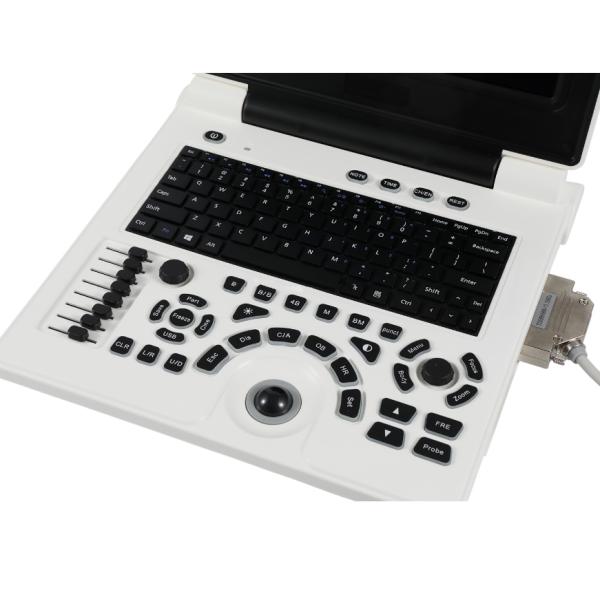

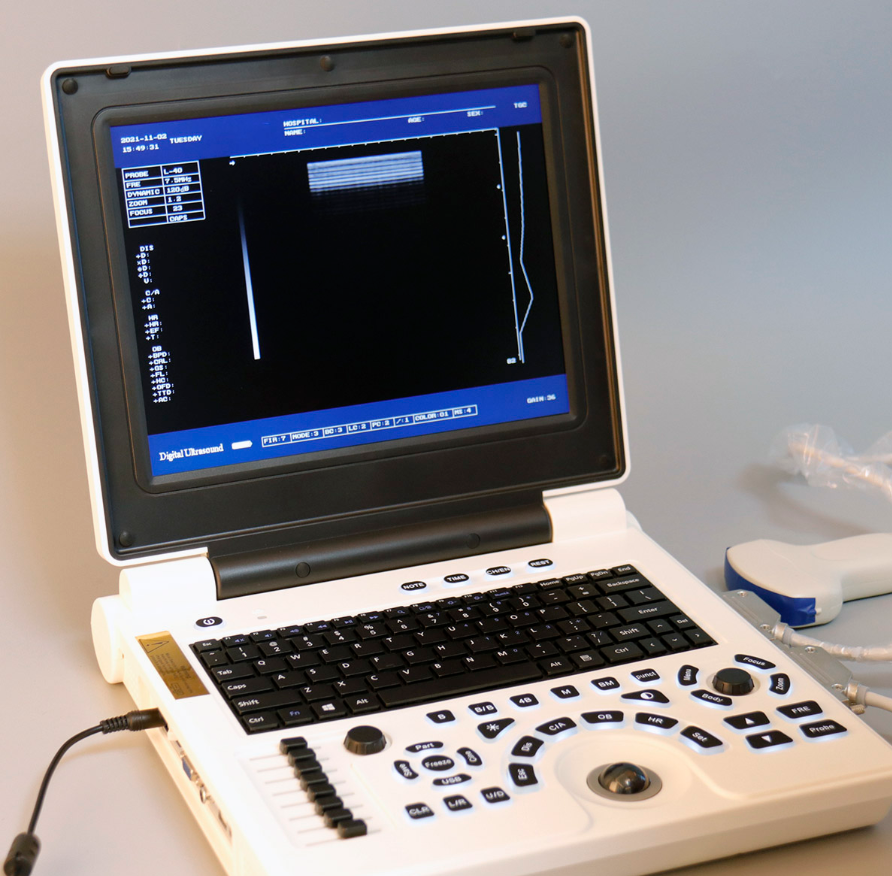

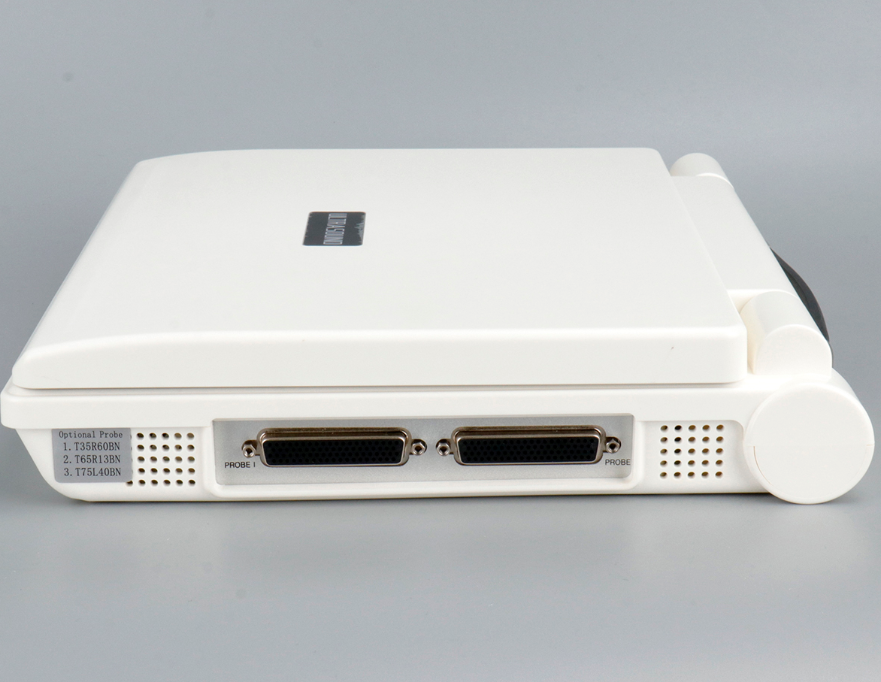

Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
Specifications
Place of Origin :
China
Brand Name :
MEDSINGLONG
Model Number :
MSLPU33A
Power Source :
Electric
Warranty :
1 Year
After-sale Service :
Online technical support
Material :
plastic
Shelf Life :
1years
Quality Certification :
ce
Instrument classification :
Class I
Safety standard :
None
Display mode :
B;B/B;4B;B +M;M
Display size :
12.1inch LED
E-zoom :
Magnify 2 times of real time image
Dynamic range :
0~120db adjustable
Focus position :
Dynamic electron focusing
Gray scale :
256 levels
storage :
128 images
Output interface :
USB port
Gain control :
8segments TGC and overall gain can be adjusted respectively
Image polarity :
Left and right flip; up and down flip
Description

Black&white portable medical ultrasound scanner machine for vet use

Black&white Portable Medical Ultrasound Scanner Machine for Vet Use

Product Description

Specification of Black&white portable medical ultrasound scanner machine for vet use

Display mode B;B/B;4B;B +M;M
Display size 12.1inch LED displayer
Image multiplying factor 3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes)x0.8;x1.0(display penetration depth)
E-zoom Magnify 2 times of real time image
Dynamic range 0~120db adjustable
Focus position Dynamic electron focusing
Image proessing 8γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color processing
According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Gray scale 256 levels
Frequency conversion 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz
5 periods of frequency conversion
Frequency range applies
5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring function Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display
Puncture guide 3.5MHz convex array probe can display punture guide in B mode
Gain control 8segments TGC and overall gain can be adjusted respectively
Image polarity Left and right flip; up and down flip
Capacity cine loop Real time display 256 consecutive images which are moemorized successively
Image playback Series playback or check one by one
Permanent storage 128 images

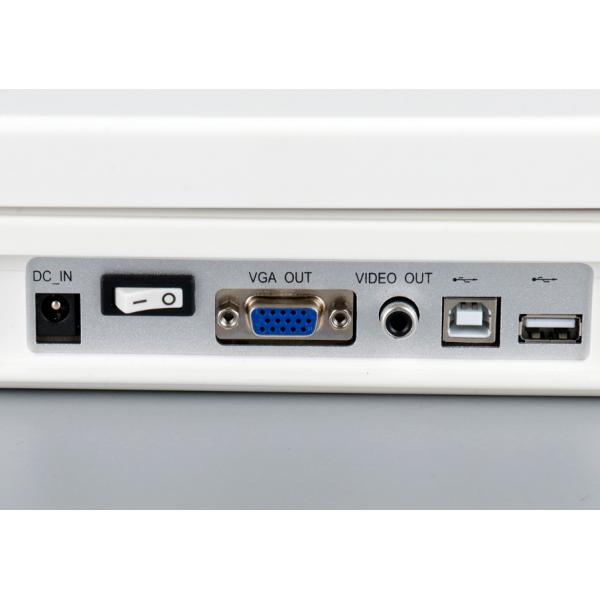

Output interface USB port

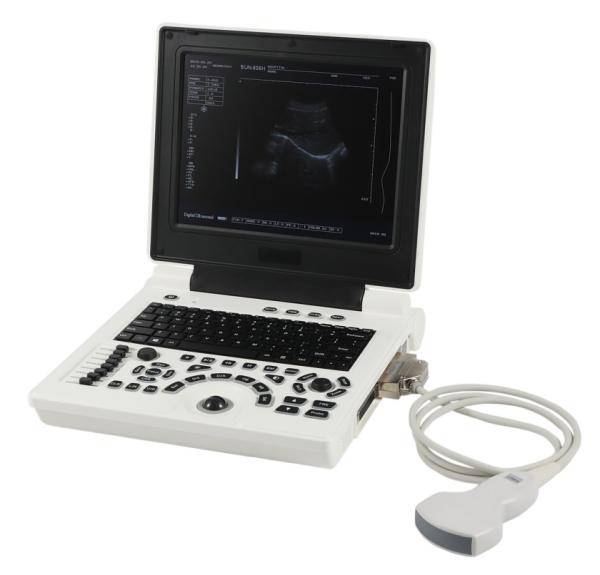

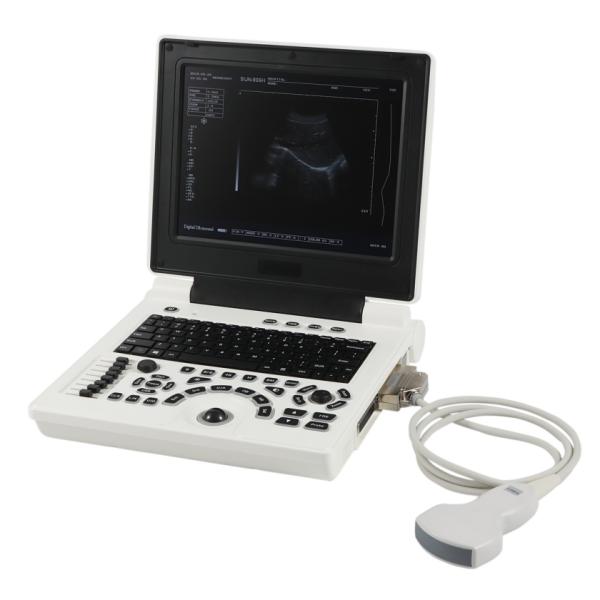

Standard configuration Ultrasound machine with 3.5Mhz convex array probe and power adapter

Black&white Portable Medical Ultrasound Scanner Machine for Vet Use

Features

Features of Black&white portable medical ultrasound scanner machine for vet use

Black&white Portable Medical Ultrasound Scanner Machine for Vet Use

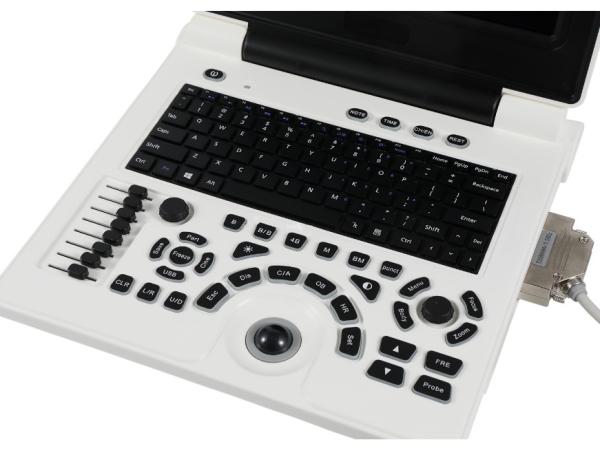

Detailed Images

Black&white Portable Medical Ultrasound Scanner Machine for Vet Use

Black&white Portable Medical Ultrasound Scanner Machine for Vet Use

Black&white Portable Medical Ultrasound Scanner Machine for Vet Use

Black&white Portable Medical Ultrasound Scanner Machine for Vet Use

Black&white Portable Medical Ultrasound Scanner Machine for Vet Use

Black&white Portable Medical Ultrasound Scanner Machine for Vet Use

Black&white Portable Medical Ultrasound Scanner Machine for Vet Use
