Specifications
Brand Name :
BAOLIDA
Model Number :
BAOLIDA012
Certification :
ISO9001:2008
Place of Origin :
SICHUAN,CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 square meter one month
Delivery Time :
7-30 work days
Packaging Details :
Standard greenhouse package
Size :
large
Material :
PE
Type :
Single-Span Agricultural Greenhouse
Cover Material :
Film
Layer :
Single
Product name :
Ecological Agricultural Greenhouse
Color :
transparent
Optional system :
Cooling System.irrigation System.ventilation.etc
Description

Film Greenhouse Vegetable Growing Tunnel Greenhouse

Vegetable Growing Plastic Tunnel Greenhouse Ultraviolet Proof

Brief introduction

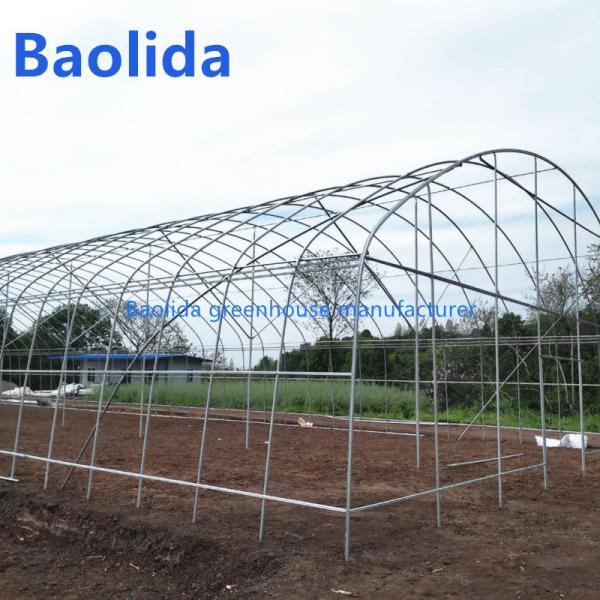

This greenhouse is simply installed, is framed by galvanized tubes. There is no upright column in the greenhouse, so it’s strengthening the lighting effects and good for the mechanical operations, promoting the land-utilizing ability.

Greenhouse Framework:

Our greenhouse is the simplest structure greenhouse, the lowest cost and the easiest to install. The skeleton is the main structure of the tunnel greenhouse. It includes frame, door, ridge, arch, pillar and so on. Single-span greenhouses are usually within the maximum range of use of our products: maximum land use, simple installation, high life and long life. It is also easy to transport apart. Therefore, the cost will be the lowest and most profitable.

Greenhouse Film:

A. 80 micron to 200 micron PE film

B. Three-layer co-extrusion technology

C. High tensile strength

D. Ultraviolet-proof

E. Long service life

Greenhouse Parameter:

Item parameter
Width 6m-10m
Length 10m-70m
Total Height 2.8m-3.5m
Covering material PE/PO film ( 0.08/0.10/0.12/0.15/0.2mm)
Basic equipment Framework , windows on both sides
Supporting system ( choose according to your needs ) Cooling system & irrigation system
The arch distance 1m/1.2m
Number of ridge 1/3
Foundation Insert the tube into the ground 40/50 cm

Ventilation System

Top ventilation: All the middle spans have two electric roll up motors and both of side spans have one electric roll up motor. Side ventilation: Both sides have two electric roll up motors.

Each motor is 60w with climber and cable film fixed parts, rolling up 60m plastic film.

Vegetable Growing Plastic Tunnel Greenhouse Ultraviolet Proof

Vegetable Growing Plastic Tunnel Greenhouse Ultraviolet Proof

Vegetable Growing Plastic Tunnel Greenhouse Ultraviolet ProofVegetable Growing Plastic Tunnel Greenhouse Ultraviolet Proof

Packaging and delivery

Customers can choose air, rail or transport as a practical situation.

Delivery time:

Send within 15 days after payment

Port: Shanghai/guangzhou/tianjin

Lead time: 10 days after payment
