ABA PE Film Co Extrusion Machine 3 Layer ABA Structure HDPE LDPE EVA Film
ABA PE Film Co Extrusion Machine 3 Layer ABA Structure HDPE LDPE EVA Film
ABA PE Film Co Extrusion Machine 3 Layer ABA Structure HDPE LDPE EVA Film
ABA PE Film Co Extrusion Machine 3 Layer ABA Structure HDPE LDPE EVA Film
ABA PE Film Co Extrusion Machine 3 Layer ABA Structure HDPE LDPE EVA Film
ABA PE Film Co Extrusion Machine 3 Layer ABA Structure HDPE LDPE EVA Film
ABA PE Film Co Extrusion Machine 3 Layer ABA Structure HDPE LDPE EVA Film
ABA PE Film Co Extrusion Machine 3 Layer ABA Structure HDPE LDPE EVA Film
ABA PE Film Co Extrusion Machine 3 Layer ABA Structure HDPE LDPE EVA Film
ABA PE Film Co Extrusion Machine 3 Layer ABA Structure HDPE LDPE EVA Film
Specifications
Brand Name :
Baojia brand
Model Number :
Serial
Place of Origin :
Dongguan, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets monthly
Delivery Time :
30 days
Packaging Details :
As arranged
Name :
ABA PE Film Co-extrusion Machine
Extruder :
2 sets
Rotational :
At your choice
Customized :
Yes at request
Direct motor :
Optional at request
Description

ABA PE Film Co Extrusion Machine 3 Layer ABA Structure HDPE LDPE EVA Film

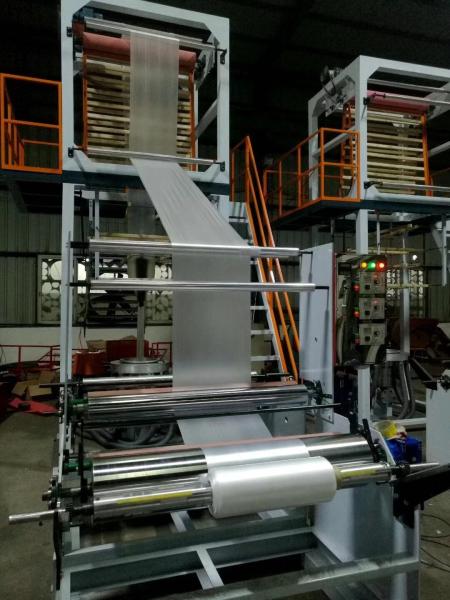

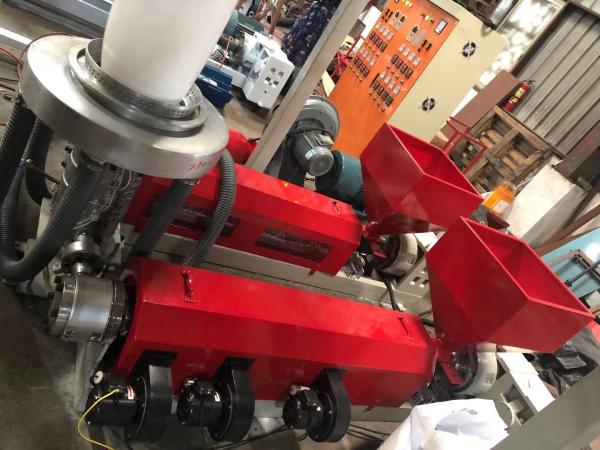

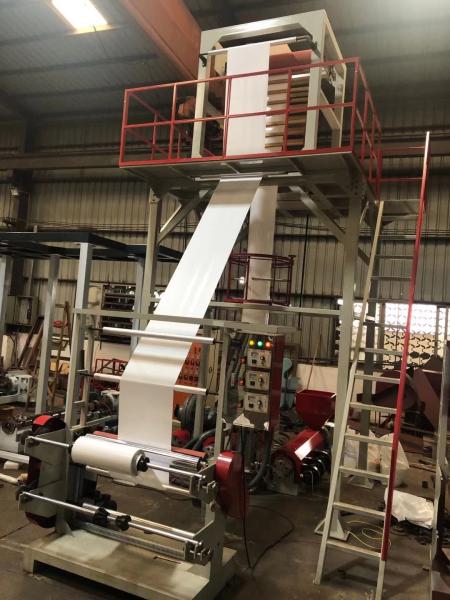

ABA PE Film Co-extrusion Machine is to produce 3-layer ABA structure HDPE, LDPE, EVA film with 2 extruders. Both rotational and stationary mould and air ring, may be stationary or fully rotational at your request. Iris stabilizer, too.

Technical parameter:

Model ABA45+55 x 700 ABA55+65 x1000 ABA55+75 x 1200 ABA65+80 x 1600 ABA75+90 x2000
Material HDPE, LDPE, LLDPE, EVA
Screw diameter 45+55 mm 55+65 mm 55+75 mm 65+80 mm 75+90 mm
Screw rpm 20 - 150 rpm
Screw barrel 38 CrMoAlA + nitride
Screw L/D 32:1
Folded width 600 mm 900 mm 1,100 mm 1,500 mm 1,800 mm
Film thickness 0.009-0.15 mm 0.01 - 0.20 mm
Main motor 11+15 kw 15+22 kw 15+30 kw 22+37 kw 30+45 kw
Haul speed 0-50 MPM
Capacity 90 kg/h 110 kg/h 130 kg/h 150 kg/h 200 kg/h
Net weight 3.8T 4.6T 5.4T 7.0T 8.0T
Dimensions 4x2x3.6 m 4.5x2.5x3.8 m 5 x 2.8x4.5 m 6 x 3 x 5.5 m 6.5 x 3.8x7.5 m

Special requirements: at request.
