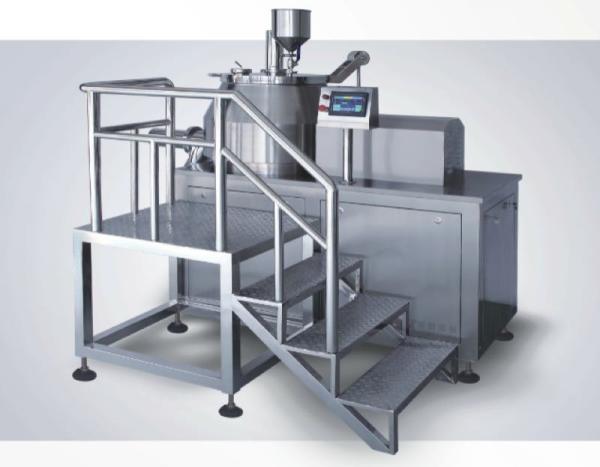

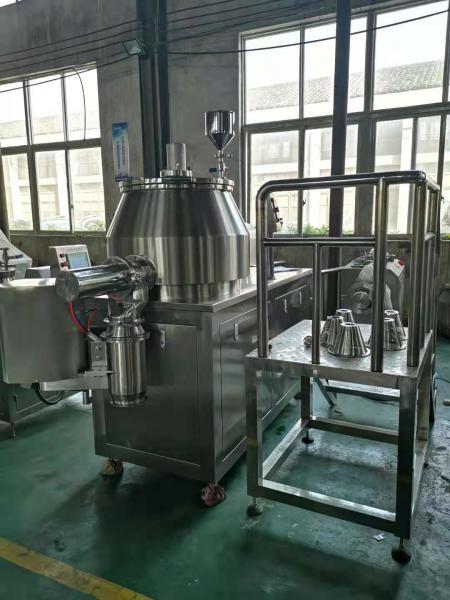

Superior Pharmaceutical Wet Granulator Machine , High Shear Mixer Granulator
Superior Pharmaceutical Wet Granulator Machine , High Shear Mixer Granulator
Superior Pharmaceutical Wet Granulator Machine , High Shear Mixer Granulator
Superior Pharmaceutical Wet Granulator Machine , High Shear Mixer Granulator
Superior Pharmaceutical Wet Granulator Machine , High Shear Mixer Granulator
Superior Pharmaceutical Wet Granulator Machine , High Shear Mixer Granulator
Specifications
Brand Name :
Grand Packing
Model Number :
HLSG-100
Certification :
ISO
Place of Origin :
ZHEJIANG
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
25-40 days
Packaging Details :
packed in standard exporting woodcase
Product name :
HLSG-100 superior pharmaceutical wet mixing granulator/granulation machine
Total volume :
100L
Work capacity :
25-65L
Voltage :
220V/380V
Product type :
Fertilizer, food, chemical, Granulator
Material :
SUS304/316L
Description

HLSG-100 superior pharmaceutical wet mixing granulator/granulation machine

Characteristics

  • This machine is controlled by PLC in the whole process (HMI-optional) to unify the technology and guarantee stable quality, which can also be operated manually, convenient to find out the technical parameters and process.
  • Both the stirring paddles and cutting knives adopt frequency converter to adjust speed, convenient to control the granule size.
  • The rotation drive shaft is sealed with inflatable chamber, eliminating the dust coalescence phenomenon, which has the function of automatic cleaning.
  • It adopts conical chute to make the material in it mix evenly. The chute with interlayer at bottom is equipped with built-in water cooling circulation system, which has better thermostatic performance than normal air cooling system, improving the granule quality.
  • The pot cover of this machine can open and close automatically and the material outlet matches with drying equipment. Big size models are equipped with ladder, convenient to operate.
  • It’s equipped with paddle lifting system, more helpful to clean the paddles and pot.

Main Technical Parameters

Model HLSG-100 HLSG-50 HLSG-30 HLSG-10
Total Volume 100L 50L 30L 10L
Working Volume 25-65L 12-35L 6-20L 2-6L

Material input quantity

(material density is 0.5 g/ml)

 15-40KG/batch 8-20KG/batch 3-10KG/batch 1-3KG/batch
Operating time Mixing about 2 minutes, granulating 7-14 minutes/batch
Finished granule size About Φ0.14-Φ1.5mm (12-100 meshes)
Mixing motor

7.5KW

6 magnetic poles

5.5KW

6 magnetic poles

3KW

6 magnetic poles

2.2KW

6 magnetic poles
Speed of stirring paddle 30-300 r/min 40-400 r/min 50-500 r/min 50-500 r/min
Granulating motor 3KW 1.5KW 1.1KW 0.75KW
Speed of granulating blade 50-3000 r/min 50-3000 r/min 50-3000 r/min 50-3000 r/min
Outline dimension (L×W×H) 1760×600×1660 mm 1750×600×1620 mm 1450×530×1340 mm 1280×530×1320 mm
Weight 800 kg 500 kg 400 kg 330 kg
