High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Guanhong
Packaging Details :
wooden packing
Supply Ability :
20 Unit/Units per Month
Price :
$72,000.00/sets 1-2 sets
MOQ :
1 set
Condition :
New
Type :
Filling Machine
Machinery Capacity :
13000BPH
Applicable Industries :
Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, Other
Showroom Location :
None
Application :
Food, Beverage, Commodity, Chemical, Cosmetic
Packaging Type :
Bottles, case, kit
Packaging Material :
Plastic, Paper, Metal, Glass, Wood, Other
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
AC220V/380V 50/60Hz
Dimension(L*W*H) :
3200*2000*1518mm
Weight :
1800 KG
Warranty :
1 Year
Key Selling Points :
Automatic
Filling Material :
Water, Oil, liquid, Liquid
Filling Accuracy :
±0.5%
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, PLC
Quantity of filling head :
24 heads
Filling capacity :
0.3-0.8ml
Filling form :
peristaltic pump filling
Filling speed :
about 180 bottles/min
Pressure :
0.6-0.8 MPa
Program control :
PLC+touch screen
Power supply :
AC220V/380V, 50/60Hz.
Sealing and cutting method :
heat sealing (first cutting, and then heat sealing)
Materia :
the frame adopts 304# stainless steel + aluminum alloy
Port :
Guangzhou
Description
Product Overview

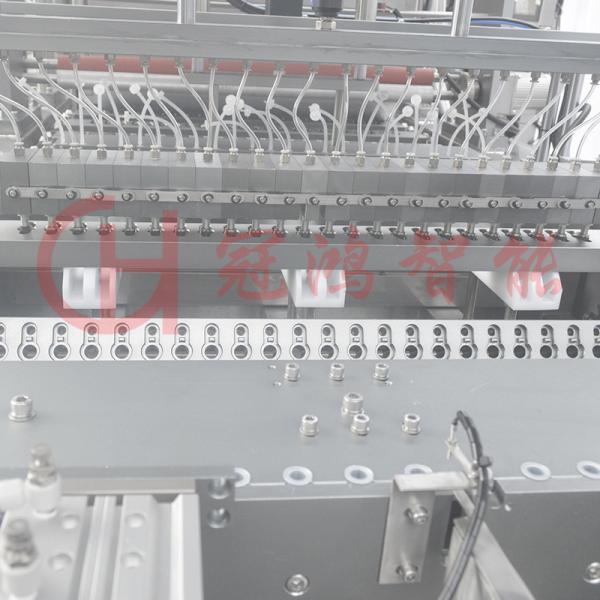

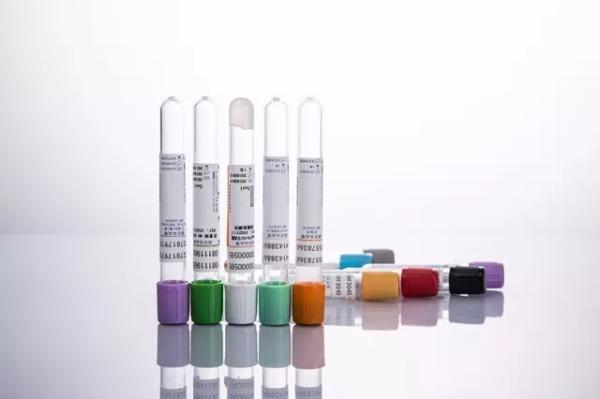

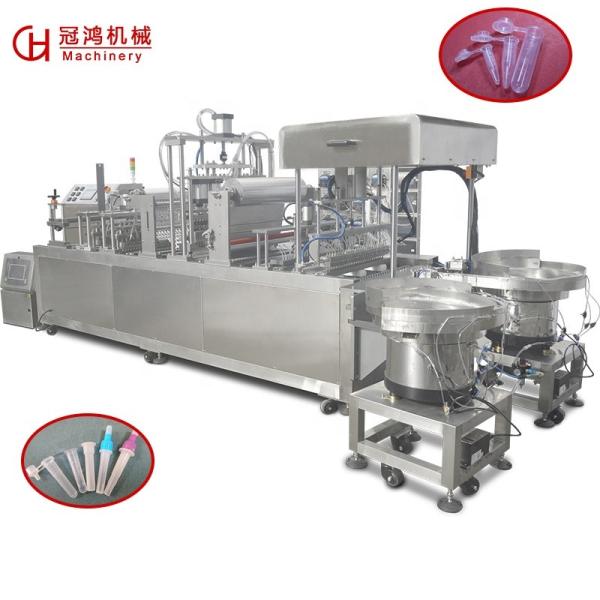

This machine is a special equipment in the filling production line of sampling tubes and detection reagent tubes. It adopts 24heads fast filling method, continuous aluminum foil cut-sealing, stable filling and high production capacity. Working principle the tubes are sent automatically by rotated tube sender, and the peristaltic pump is accurately filled. After the filling is completed, the next filling is performed in sequence.
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
Product Paramenters
NO.
item
value
1
Filling speed
180 bottles/minute
2
Bottle feeding method
vibration plate bottle feeding
3
Number of vibration bottle sorte
4 (2 for each bottle)
4
Bottle putting method
mechanicalarm putting bottle
5
Number of die holes
24 holes
6
Filling method
peristaltic pump filling
7
Filling capacity
about 0.3ml
8
Filling accuracy
±5%
9
Number of sealingand cuttingheads
24
10
Sealing and cutting method
heat sealing (first cutting, and then heat sealing)
11
Pull film method
electric automatic pull film
12
Coding form
mobile coding (move once, coding 24 bottles)
13
Discharging method
cylinder feeding
14
Production speed
180 bottles/min
15
Material
the frame adopts 304# stainless steel + aluminum alloy
16
The whole machine power
about 6KW
17
Program control
PLC+ touch screen
18
Air pressure
0.6-0.8mpa
19
Power supply
AC220V/380V, 50/60Hz.
20
Machine size
3200*2000*1518mm
Recommend Products
Packaging & Delivery
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
Company Profile
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
FAQ
1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted.
For regular order, 50% front payment, 50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before sent machine you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you,.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
