Specifications
Brand Name :
YINGDA
Model Number :
FTB0102E
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
100pcs
Price :
0.18USD-4.29USD
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
5days
Packaging Details :
100pcs/bag
Material :
ABS
Color :
Black
Dimension :
180*75*20mm
Max capacity :
2 core
Cable ports :
1in 2out
Cable diameter :
3mm round cable or 2x3mm flat drop cable
Description

YINGDA 1In 2 Out 2Cores Fiber Optic Protection Box Black ABS Material For Mechanical Splicer

The outdoor fiber splice enclosure support distribute 1core drop cable into 2cores drop cable, provide space and protection for fiber optic cable splicing and joint. It can be used outdoor with rubber seal ring, working temperature ranging from -40°C to 85°C, can accommodate 70 to 106 kpa pressure and the case are usually made of high tensile construction plastic.

Features

  • Supports termination, splicing and storage for FTTH drop cable 2.0mm*3.0mm
  • Compatible with G.657A1 and G.657B3 or G652D fiber
  • Compact size, light weight
  • Best fiber routing bend radius ensure signal integrity
  • Water-proof design with IP-65 Protection level High-quality industrial anti-aging plastic material
  • 1 port cable entrance, and 2 port cable exit for drop cable or patch cable
  • Screw type, round shape, easy for installation and removal Fire-retardant material can be customized as an option

Specification

Model FTB0102E
Dimension 180*75*20mm
Cable ports 1in 2 out
Cable diameter 3mm round cable or 2x3mm flat drop cable
Material ABS
Max. Capacity 2 cores single fiber
weight 112g
Installation Way Wall Mounting
Color Black

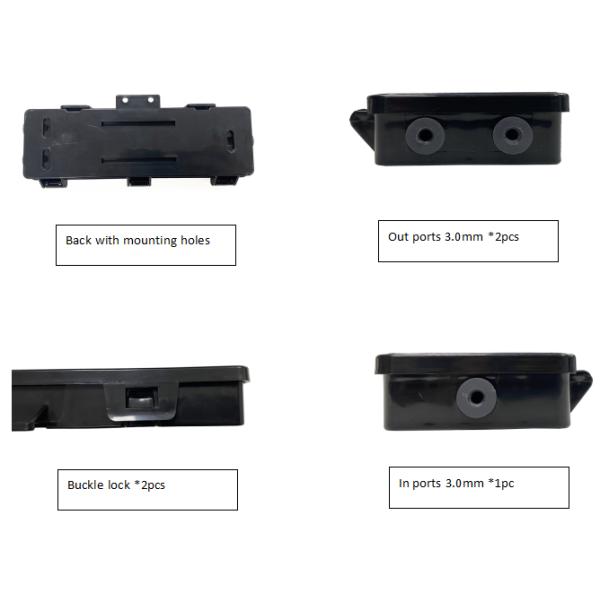

Product detail

YINGDA 1In 2 Out 2Cores Fiber Optic Protection Box Black ABS Material For Mechanical Splicer

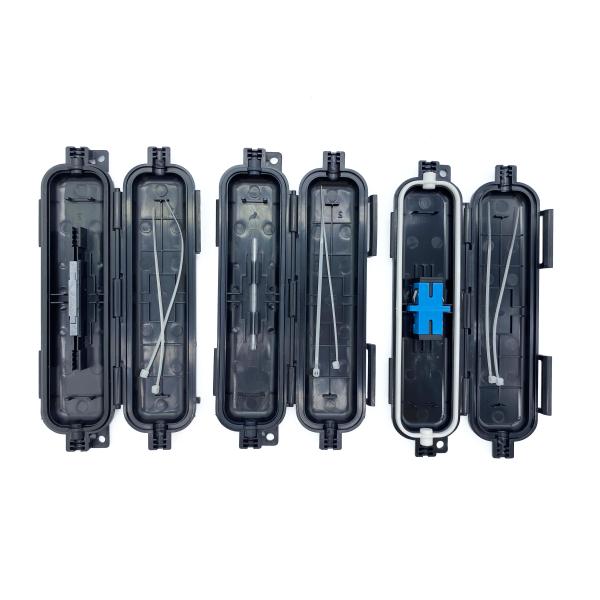

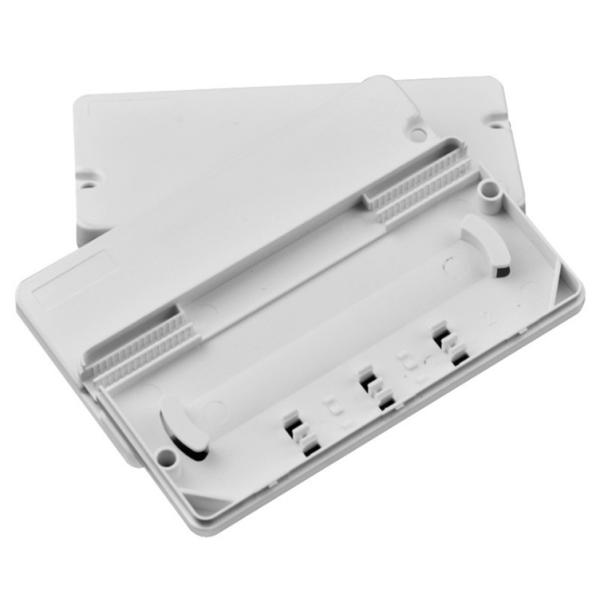

More Fiber Protection Box are optional:

YINGDA 1In 2 Out 2Cores Fiber Optic Protection Box Black ABS Material For Mechanical Splicer YINGDA 1In 2 Out 2Cores Fiber Optic Protection Box Black ABS Material For Mechanical Splicer

YINGDA 1In 2 Out 2Cores Fiber Optic Protection Box Black ABS Material For Mechanical SplicerYINGDA 1In 2 Out 2Cores Fiber Optic Protection Box Black ABS Material For Mechanical Splicer
