Plastic 1 Core SC/APC Fiber Optic Outlet Socket Panel Wall Mount Fiber Optic Termination Box Rossette NAP
Plastic 1 Core SC/APC Fiber Optic Outlet Socket Panel Wall Mount Fiber Optic Termination Box Rossette NAP
Plastic 1 Core SC/APC Fiber Optic Outlet Socket Panel Wall Mount Fiber Optic Termination Box Rossette NAP
Plastic 1 Core SC/APC Fiber Optic Outlet Socket Panel Wall Mount Fiber Optic Termination Box Rossette NAP
Plastic 1 Core SC/APC Fiber Optic Outlet Socket Panel Wall Mount Fiber Optic Termination Box Rossette NAP
Plastic 1 Core SC/APC Fiber Optic Outlet Socket Panel Wall Mount Fiber Optic Termination Box Rossette NAP
Plastic 1 Core SC/APC Fiber Optic Outlet Socket Panel Wall Mount Fiber Optic Termination Box Rossette NAP
Plastic 1 Core SC/APC Fiber Optic Outlet Socket Panel Wall Mount Fiber Optic Termination Box Rossette NAP
Specifications
Brand Name :
yingda
Model Number :
FTB102B
Certification :
ISO,SGS
Place of Origin :
china
MOQ :
5000pcs
Price :
0.18USD-4.29USD
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Supply Ability :
100k pcs per month
Delivery Time :
5days
Packaging Details :
200pcs/carton box
Material :
ABS
color :
white
size :
135*90*20mm
max capacity :
1 SC, 1core for fusion
Suitable for cable :
2*3mm ftth cable or indoor cable
install method :
indoor wall mount
Description

Plastic 1 Core SC/APC Fiber Optic Wall Mount Outlet Socket Panel Termination Box Rossette NAP

It is used for different kinds of modules and applied to the working area subsystem. It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO. With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer’s choice.

Cable management can be connected without cutting(with express port)
All modules are free of welding.

Fiber Wall Outlet Box Specification:

Model FTB102B
Dimension(LxWxH)mm 135*90*20mm
Installation Wall mounting (indoor & outdoor)
Cable entry 4ports
Max. Cable diameter 2*3mm
Adapter qty 1pc SC or LC duplex
Net weight / g 68.2
Net weight/carton box 15kgs
Package information 208pcs/carton box, carton size: 520*360*390mm, gross weight/ carton: 19.5kgs, net weight/ carton: 15kgs

Performance index:

Item Technical data
Application 3.0 x 2.0 mm drop cable or indoor cable
Fiber diameter 125μm ( 652 & 657 )
Tight cladding diameter 250μm & 900μm
Mode of application Single mode & duplex mode
Tensile strength >50 N
End-use temperature -40~+85℃
Adaptor SC & LC duplex
Insertion loss ≤0.2dB(1310nm & 1550nm)
output 1 port

Configuration table:

Table 1 Model and configuration

Model Size(Pic 1) Max Capacity Installation Size(Pic 2)
A*B*C(mm) SC LC D (mm)
FTB102B 135*90*20 1 2 102

Working area:

.The telecommunication network, metropolitan area network, optical fiber communication system.
.Optical testing equipment/instrument.
.CATV optical fiber, optical fiber sensor.
.Optical fiber broadband access network, FTTH optical fiber.
.Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.

Plastic 1 Core SC/APC Fiber Optic Outlet Socket Panel Wall Mount Fiber Optic Termination Box Rossette NAP

There is cable entry at bottom and exit at both sides, no need to cut off the main cable, then to connector or fusion with others.

The box is white plastic, with laser mark on lid to remind of installation worker.

Plastic 1 Core SC/APC Fiber Optic Outlet Socket Panel Wall Mount Fiber Optic Termination Box Rossette NAP

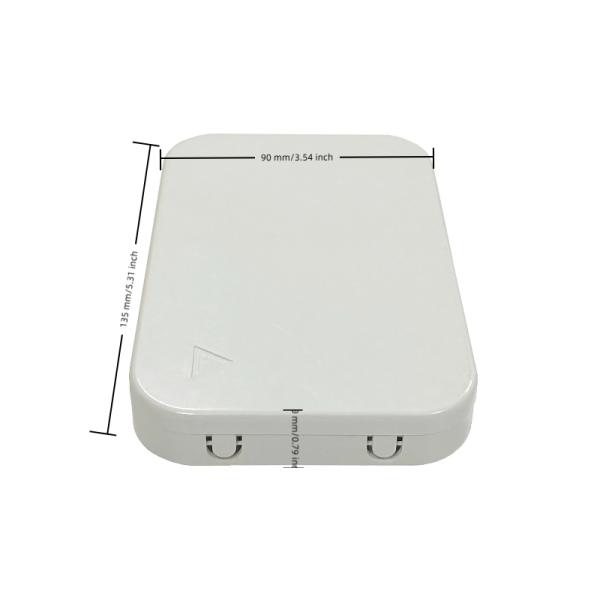

Compact size, it's can be invisible on the wall, more beautiful. The size is 135*90*20mm
