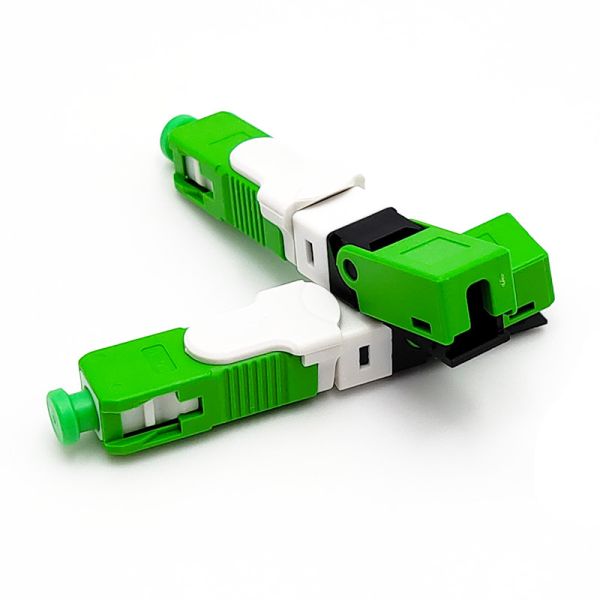

APC and UPC fiber optic quick connectors for Enhance Your Network Performance
APC and UPC fiber optic quick connectors for Enhance Your Network Performance
APC and UPC fiber optic quick connectors for Enhance Your Network Performance
APC and UPC fiber optic quick connectors for Enhance Your Network Performance
APC and UPC fiber optic quick connectors for Enhance Your Network Performance
APC and UPC fiber optic quick connectors for Enhance Your Network Performance
APC and UPC fiber optic quick connectors for Enhance Your Network Performance
APC and UPC fiber optic quick connectors for Enhance Your Network Performance
APC and UPC fiber optic quick connectors for Enhance Your Network Performance
APC and UPC fiber optic quick connectors for Enhance Your Network Performance
APC and UPC fiber optic quick connectors for Enhance Your Network Performance
APC and UPC fiber optic quick connectors for Enhance Your Network Performance
Specifications
Brand Name :
Yingda
Model Number :
ESC250
Certification :
ISO CE
Place of Origin :
Shenzhen，China
MOQ :
100000pcs
Price :
0.18USD-4.29USD
Payment Terms :
T/T, D/A, D/P,Western Union, MoneyGram
Supply Ability :
100000000/month
Delivery Time :
7-10days
Packaging Details :
2 or 4 pcs in a bag
Description

Production Description

The Tast Connector,Field Assembly Connector or Field Termination Fiber Connector, Quickly Assemble Fiber Connector, which is a revolutionary field-installed fiber connector. The unique design of the patented mechanical connector body combines factory-installed fiber stubs and pre-polished ceramic ferrules. Using this field-assembled fiber connector, you can increase the flexibility of fiber cabling design and reduce the time required for fiber termination.

Feature

1. Connection structure design, separated slight bending remains unchanged when connecting with equipment and connectors;

2. Double V-groove structure design, high fiber connection stability and reliability;

3. Core wire structure: It adopts normally closed, flexible locking structure, and has excellent optical performance;

4. Suitable for 2.0mm×3.0mm and 2.0mm×1.6mm home optical cable;

5. Easy to use, fast to install, high success rate, long service life and easy maintenance.

6. Widely used in FTTH networks

Product Detail

APC and UPC fiber optic quick connectors for Enhance Your Network Performance

APC and UPC fiber optic quick connectors for Enhance Your Network Performance

APC and UPC fiber optic quick connectors for Enhance Your Network Performance

APC and UPC fiber optic quick connectors for Enhance Your Network Performance

Application
Fiber-optic patch panels
Direct equipment terminations; Fiber-to-the-user (FTTx) applications; Repair and replacement requirements
Equipment test leads

Specification

Item Unit UPC APC
Model ESC250D/UPC ESC250D/APC
Insertion loss dB ≤0.5 (average), typical <0.3dB
Return loss dB ≥50 ≥55
Tensile strength N/2min ＞30
Work temperature 0C -40～+85
Repeatability dB ≤0.2
Repeated assembly times ≥10
Mate-demate times ≥500
Cable type mm 2.0×3.0 & 2.0×1.6 drop cable
Product dimension mm 52*9*8.1
