Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver
Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver
Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver
Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver
Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver
Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver
Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver
Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver
Specifications
Brand Name :
YINGDA
Model Number :
SKL-6C
Certification :
ISO SGS ROHS
Place of Origin :
china
MOQ :
1 pc
Price :
negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
5,000 pcs per month
Delivery Time :
5 days after payment
Packaging Details :
1pcs / set
Dimension :
75*65*57mm
Suitable fiber :
Single core (0.25-0.9) 12core
Cutting length :
9-16mm(ø0.25), 10-16mm(ø0.25)
Cutting life :
48000 times
Ribbon core ~2.5flexer :
18mm
Cutting angle :
About 0.8°
Material :
Metal
Description

SKL-6C Fiber Cleaver

6C series high precision optical fiber cutter is the new type of optical fiber cutter, angle, fiber excellent fracture surface, the operation is simple, the use is more convenient, greatly improving the working efficiency.

Fiber Optic Cleaver Feature

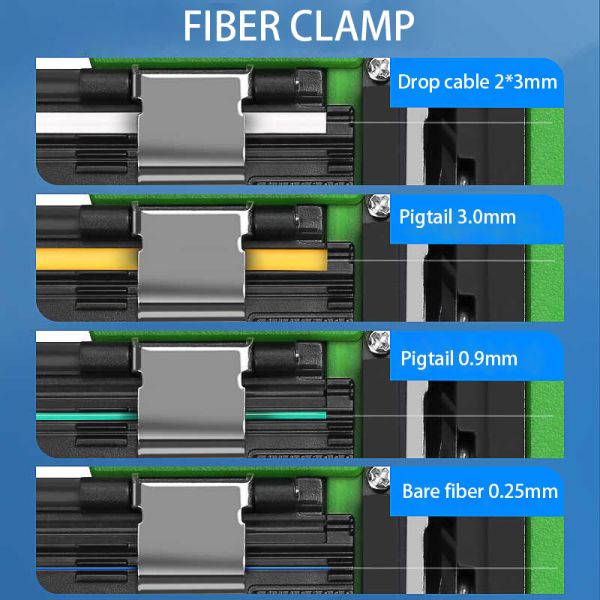

  • Three in one fiber clamp, capable of cutting bare fiber, pigtail and fiber optic drop cables, with built-in scales and no need for a length gauge;
  • High precision cutting blade, smooth cutting, continuous fiber, can cut 48000 times;
  • 16 tungsten steel cutting end faces, long service life;
  • High quality slide rail, mechanical cover, automatically returns to its original position after opening;
  • Independently packaged, comes with adjustable wrench, English manual, anti drop bag and other tools;
  • Fiber optic cable stripping pliers, red light pens, and other FTTH cold junction kit tools can be configured.

Fiber Optic Cleaver Application

  • Telecommunications Engineering and repair
  • CATV engineering and maintenance
  • Optical cable manufacturers

Optical Cleaver Specification

Model SKL-6C
Dimension (W*D*H) 75*65*57mm
Bare fiber diameter 125um
Cutting angle About 0.80
Application of fiber core number Single core (0.25-0.9) 12core
Cutting length 9-16mm(ø0.25), 10-16mm(ø0.25)
Cutting life 48000 times
Ribbon core ~2.5flexer 18mm
Net weight About 230g
Color Black, green, purple

Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver

Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver

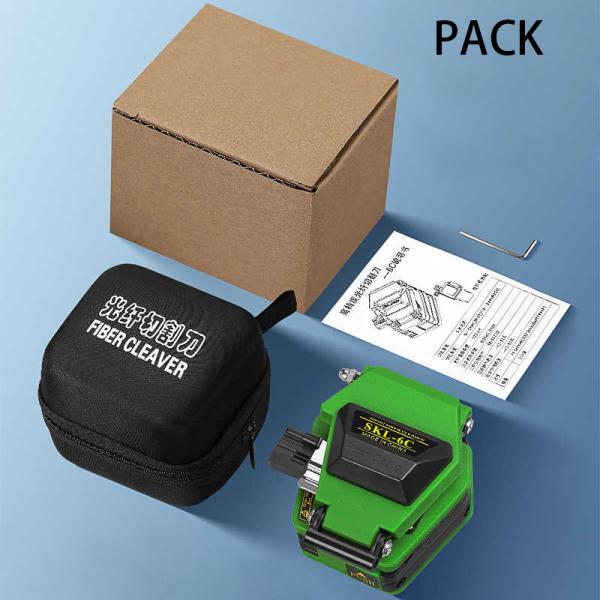

Optical Cleaver Package:
1 x Fiber Optic Cleaver
1 x Fiber Optic Cleaver Bag
1 x Instructions
1 x Large adjustable knife
1 x Small adjustable knife

Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver

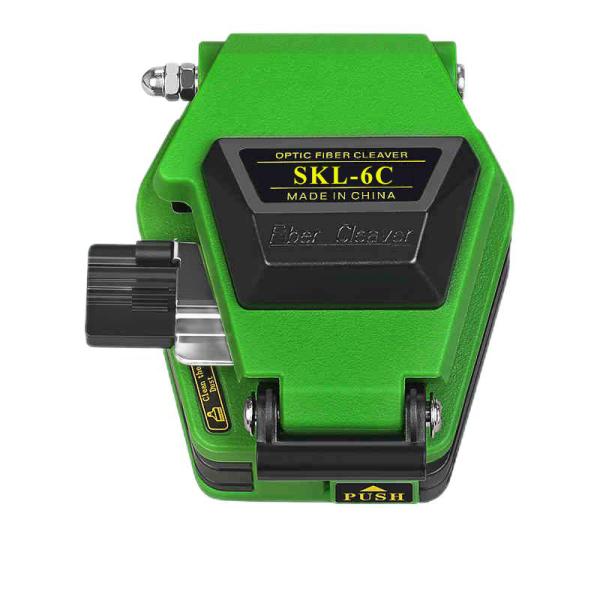

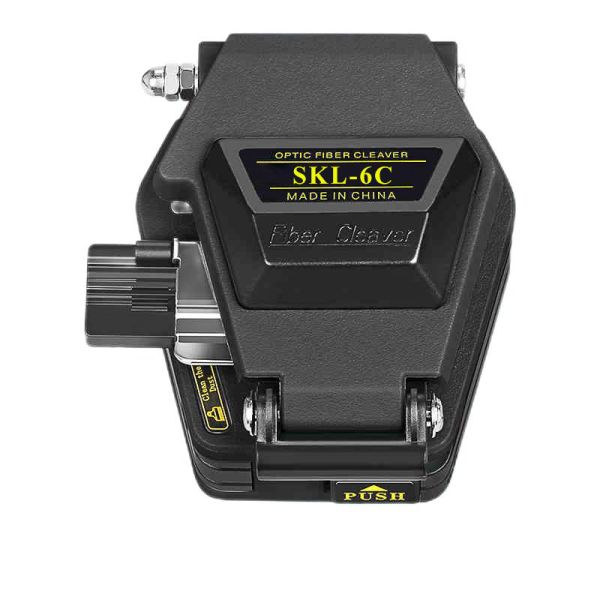

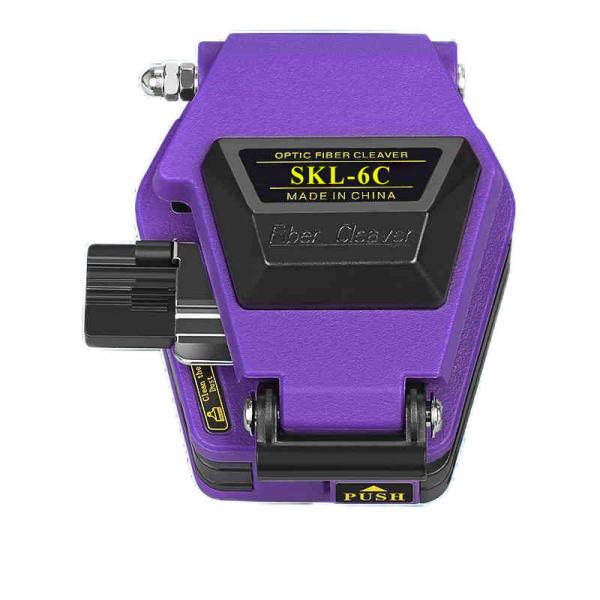

SKL-6C Fiber Cleaver can be different colors like black, purple or green.

Telecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting CleaverTelecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting CleaverTelecommunications and Optical Cable Fiber Tool Kits High Precision Fiber Cutting Cleaver
