Specifications
Brand Name :
Yingda
Model Number :
FTB008B
Certification :
ISO CE
Place of Origin :
Shenzhen，China
MOQ :
100
Price :
0.18USD-4.29USD
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000/month
Delivery Time :
5-10days
Packaging Details :
20pcs,net weight 11kgs
Description

Description


Feeder cable can go through the box without cutting=mid span; 2in 2out for feeder cable, cable diameter:12.5mm;

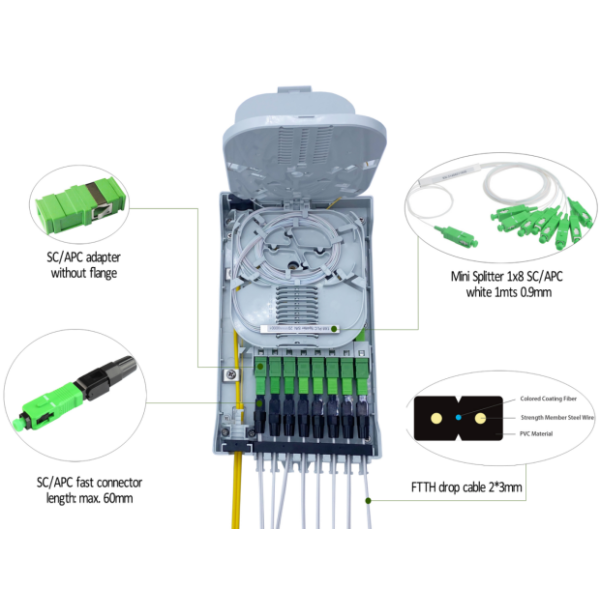

Cable exit: 8pcs drop cable output with rubber sealing, each can maximum 2x5mm with FTTH flat drop cable and fast connectors.
Both cable exit and entry have cable clamps or nylon ties to fix it in place.

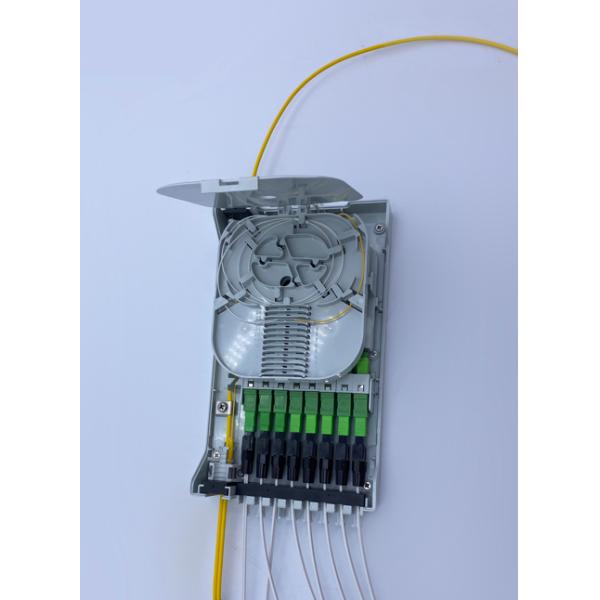

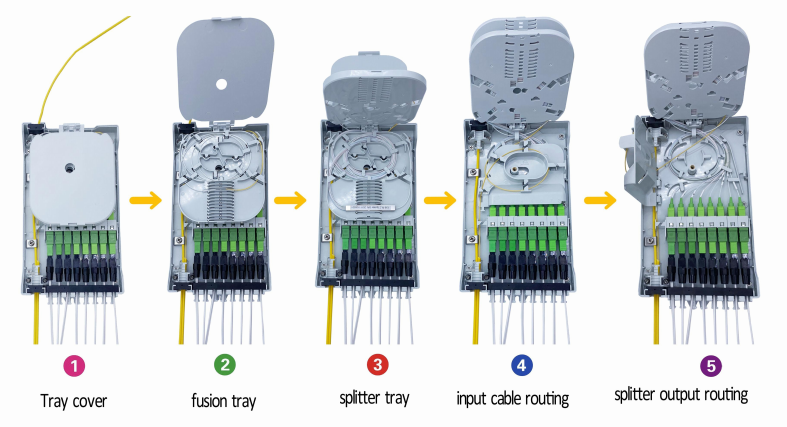

This 8-port FTB008A fiber optic access terminal adopts a 4-layer design and is completely wrapped with 1 screw from top to bottom.
Each layer have differently function, which MIX distribution,fusion,splitting,fiber storage in a box, and reasonable choice for FTTH network
Feature

FTTx Optical Cable Terminal Box The Perfect Solution for Home Connections

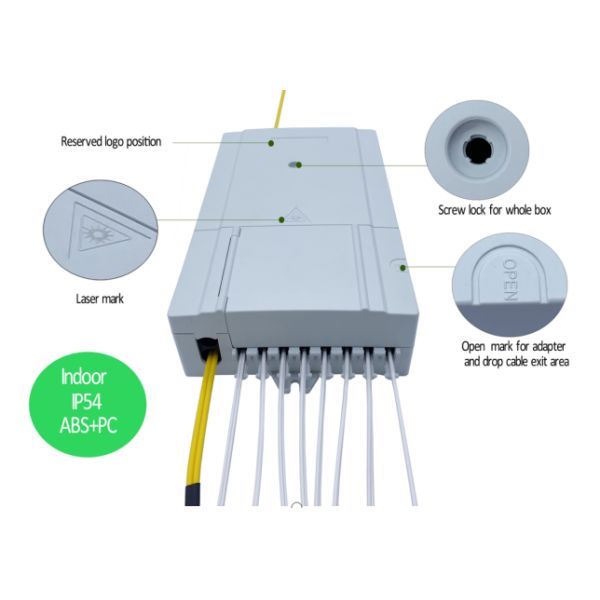

1. The 2 covers of the box are rounded edges and fixed with 1 screw on the top, opening the cover will not affect the movement of other parts of the box. Both covers are removable.

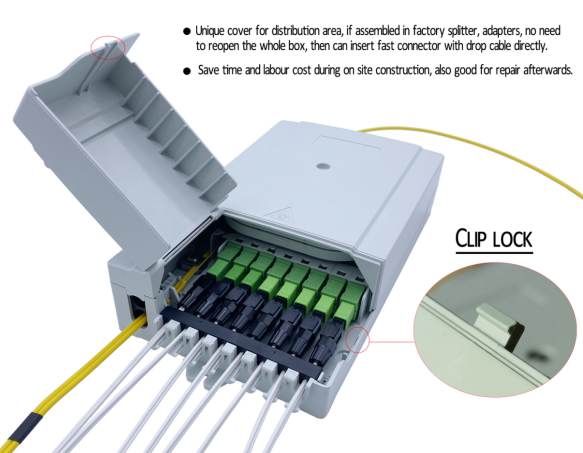

2. The unique design of the independent covers for the adapter and cable inlet/outlet ports makes it safer, more beautiful and more user-friendly.
3. All metal parts are stainless steel AISI-303, which is corrosion-resistant at normal temperature; all materials used are non-toxic and harmless to dermatologists. The box can be used for at least 20 years.

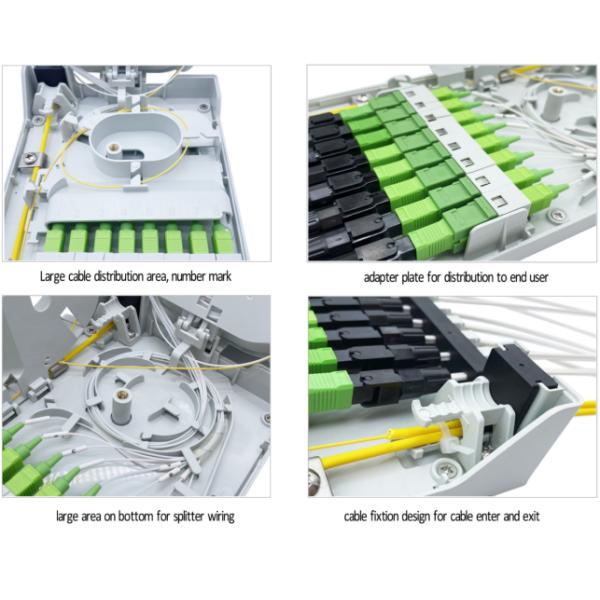

4. Special design for layer stray: splitter tray, splice tray, fiber management tray
The adapter panel at the bottom is rotated by a metal rod, which is convenient and quick to install
5. The wiring cable can pass through the box without cutting, which is a better choice for ftth field construction.

Application
FTTH FTTX network

Suitable for indoor fiber optic connections

SpecificationSpecification
wall mount
FTTx Optical Cable Terminal Box The Perfect Solution for Home Connections
Specification
Model

FTB008B

Max.Capacity

226*134*51mm

Cable ports

20 core (single fiber=12core+8core)

Cable diameter

4in, 8 out

Splice tray quantity

In:Φ12.5 mm; out 2x5mm

PLC splitter

3pcs: 1*splice tray, 1*splitter tray, 1*fiber management tray

Adapter

1pcs 1x8 splitter

Material

8SC without flange

Protection grad

PC+ABS

Application

IP54
color black,white

Package information

net weight:430g

Quantity/carton box:20pcs

Carton box size:51*29*33 cm

Gross weight/carton box:11kg

product picture

FTTx Optical Cable Terminal Box The Perfect Solution for Home Connections

FTTx Optical Cable Terminal Box The Perfect Solution for Home Connections

FTTx Optical Cable Terminal Box The Perfect Solution for Home Connections

FTTx Optical Cable Terminal Box The Perfect Solution for Home Connections
